MAAS X-300N Dual Band Antenna VHF / UHF144 / 430 MHz connector N female

MAAS X-300N Antenna Bibanda VHF / UHF144 / 430 MHz connector N female. Antenna BASE BINDA DIAMOND X 300 N. Valid antenna to transmit and receive in two VHF / UHF bands. It has three radials. It can be installed on a mast with a diameter of 30 mm to 6 more Manufacturer: maas Reference MAASX300N EAN 4250158718203

maas
MAAS X-300N Dual Band Antenna VHF / UHF144 / 430 MHz connector N female MAAS X-300N Dual Band Antenna VHF / UHF144 / 430 MHz connector N female MAAS X-300N Dual Band Antenna VHF / UHF144 / 430 MHz connector N female
MAAS X-300N Dual Band Antenna VHF / UHF144 / 430 MHz connector N female
available
74,52 incl. VAT
61,59€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

MAAS X300N

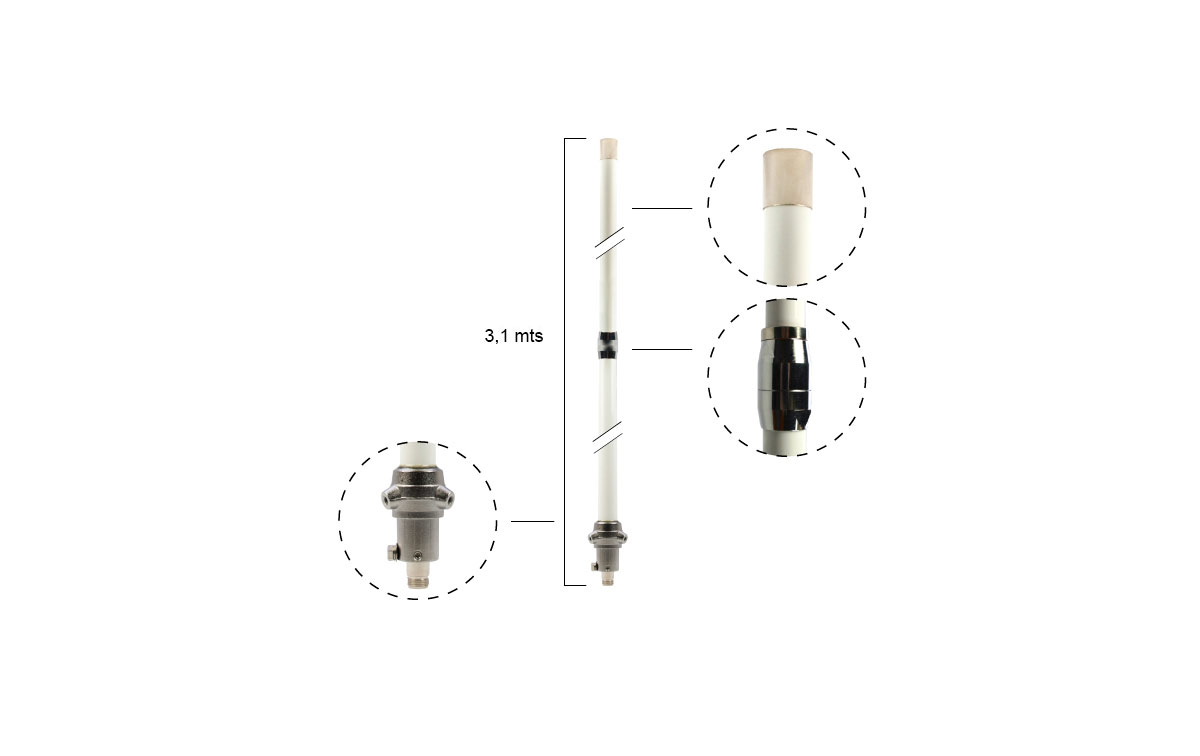

BASE BIBANDA MAAS X-300N antenna. Antenna valid to transmit and receive in two bands VHF 144 / UHF 430. It has three radials. It can be installed on mast diameter 30 mm to 60 mm. Connection type N female. White fiber antenna length 3.10 m. Composed of two sections.
You may be interested in the PL adapter see link click <<< here >>>

MAAS X-300N Antena Bibanda VHF/UHF144/ 430 MHz conector N hembra

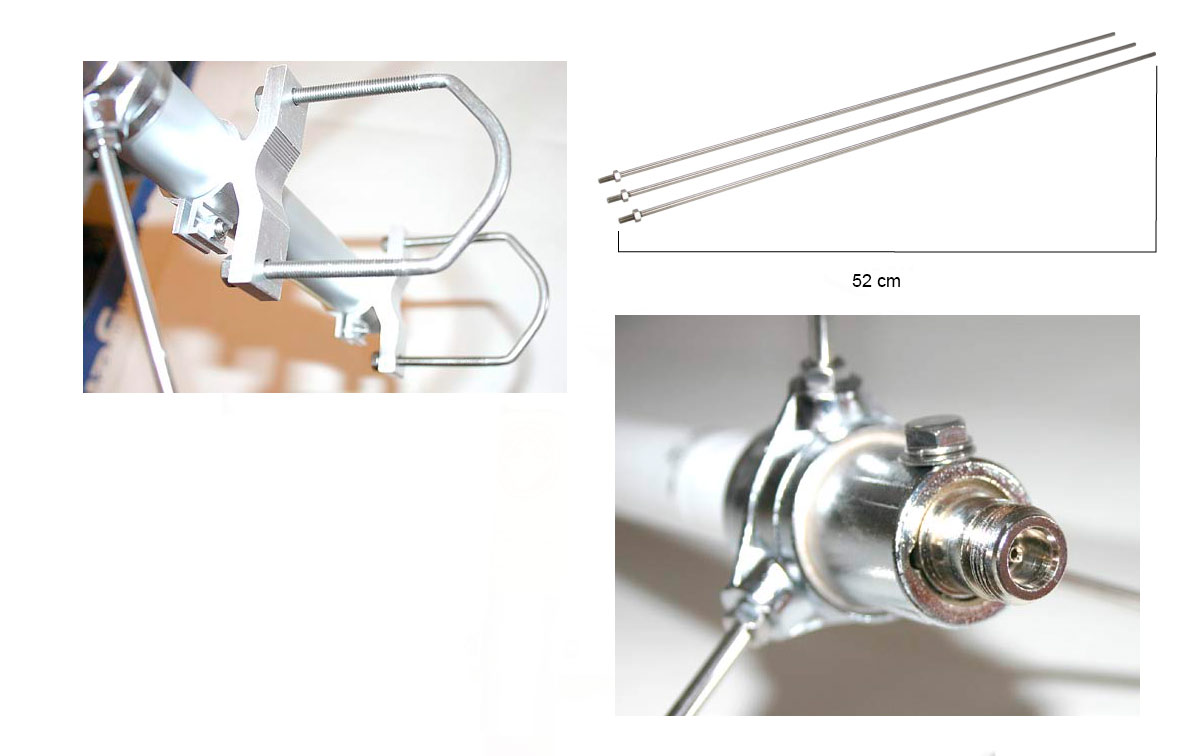

MAAS X-300N Kit Contents
  • 1 White fiber antenna two sections.
  • 2 Clamps for mast from 30 mm to 60 mm
  • 3 Radials length 52 cm.
  • 1 English assembly manual.

MAAS X-300N Antena Bibanda VHF/UHF144/ 430 MHz conector N hembra

You may be interested in the PL adapter see link click <<< here >>>

Features

  • Impedance: 50 Ohm.
  • VHF gain: 6.5 dB
  • UHF gain: 9.0 dB
  • Maximum power: 200 watts.
  • Wavelength VHF 2 x 5/8 (144 Mhz)
  • Wavelength UHF 5 x 5/8 (430 Mhz)
  • Antenna length: 3.10 meters
  • Weight: 1,5 kg.
  • SWR: 1.5 SWR
  • Connector: N female
  • Sections: 2 joined
  • Radials: 3 rods length 52cm.
  • Rod material: Stainless steel.
  • Maximum wind resistance: 50 m / sec (112.5 MPH)
