Reference HKX30N | HAMKING EAN 8718375101209
HAMKING X-30N BASE DUAL-BAND VHF/UHF ANTENNA MAX. POWER 200W
HAMKING X-30N BASE DUAL-BAND VHF/UHF ANTENNA MAX. POWER 200W. Length 130 cm
Make the first review54,76€ VAT included 45,26€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Delivery price from 30,25€
Description HAMKING HKX30N
HAMKING X-30N
HAMKING X-30N BASE DUAL-BAND VHF/UHF ANTENNA MAX. POWER 200W. Length 130 cm
The HamKing X-30N vertical antenna for 144 MHz (3.0 dBi gain) and 430 MHz (5.5 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance.
Maximum power: 200 watts.
Length 130 cm

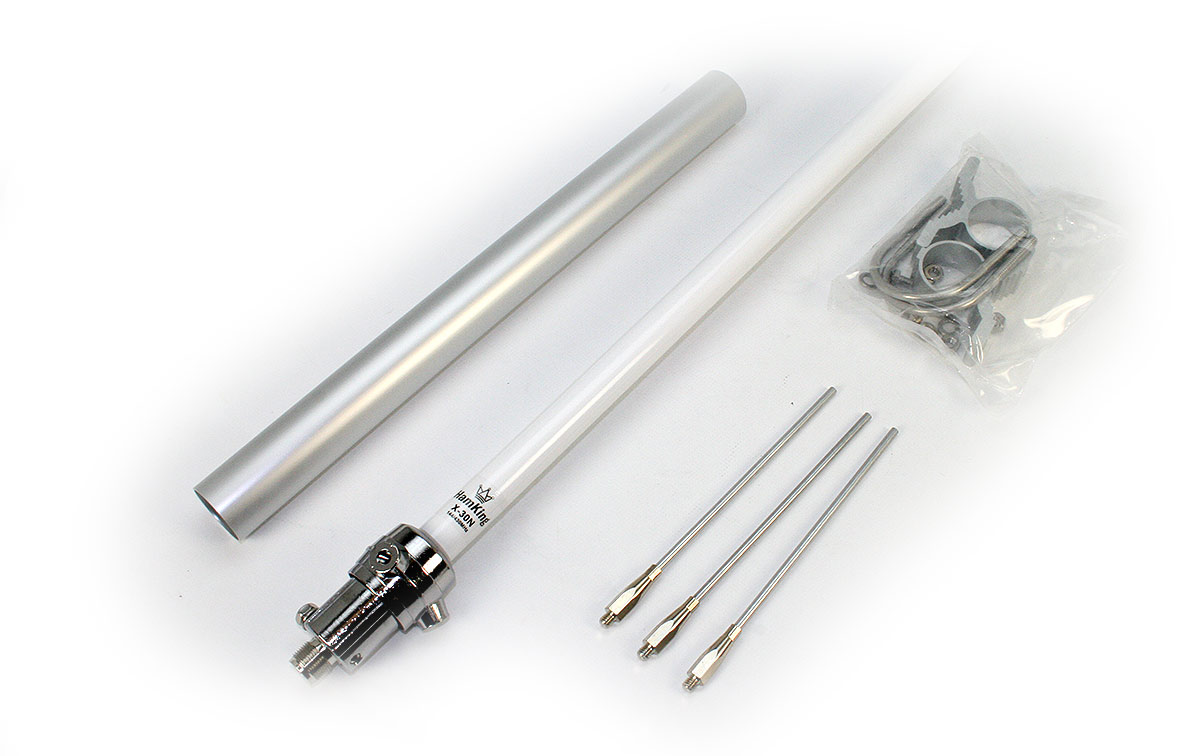

Kit Contents
- 1 HAMKING X-30N Antenna
- 2 Mast mounting brackets
- 3 16cm radials
- 1 User's manual
Features
- Frequency band: VHF/UHF
- Frequency: 144/430 Mhz
- Gain: 3 dBi (144MHz) / 5.5 dBi (430MHz)
- VSWR: <1.5
- Power: 150 watts
- Impedance: 50 Ohms
- Type: 1/2 wave element (144 MHz), 2x5/8 wave element (430 MHz)
- Radiation: Omnidirectional
- Connector: N male
- Mast diameter: 30 - 48 mm
- Max wind resistance: 60 m/sec (216 km/h)
- Weight: 700 gram
- Length: 130 cm
