HAMKING X-50N DUALBAND BASE ANTENNA VHF/UHF 144/430 Mhz

HAMKING X-50N

HAMKING X-50N DUALBAND BASE ANTENNA VHF/UHF 144/430 Mhz

The HamKing X-50N vertical antenna for 144 MHz (4.5 dBi gain) and 430 MHz (7.2 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed.

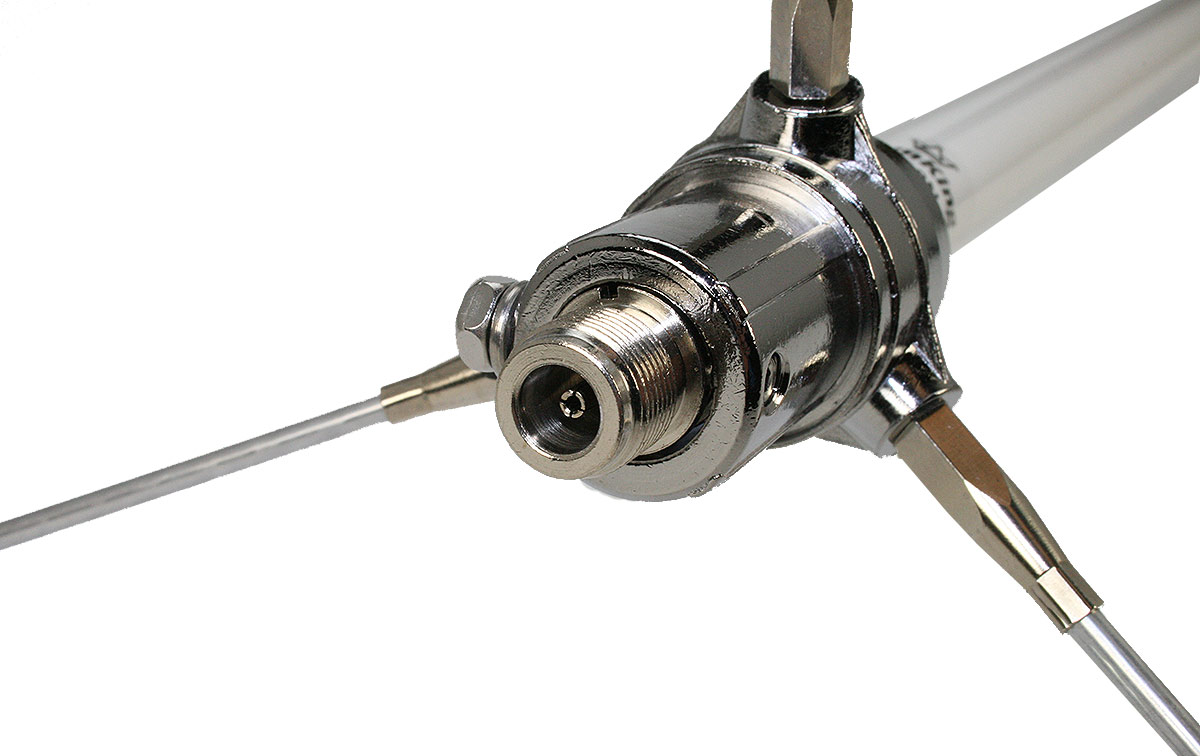

Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.

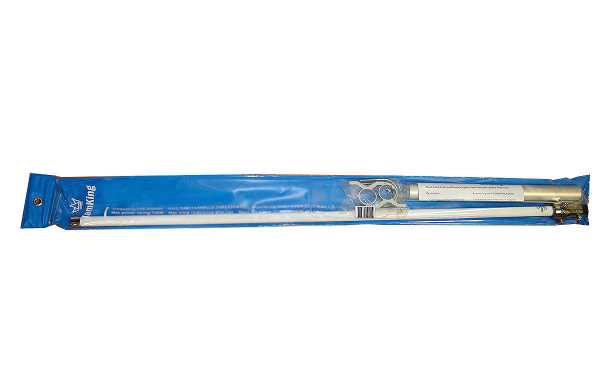

Kit Contents

• 1 HAMKING X-50N Antenna
• 2 Mast mounting brackets
• 3 Antenna radials
• 1 English user's manual

Features

• Frequency band: VHF/UHF
• Frequency: 144/430 Mhz
• Gain: 4.5 dBi (144 MHz) / 7.2dBi (430 MHz)
• VSWR: <1.5
• Power: 200 watts
• Impedance: 50 Ohm
• Type: 6/8 wave C-Load (144 MHz), 3x5/8 wave C-Load (430 MHz)
• Radiation: Omnidirectional
• Weight: 900 gr

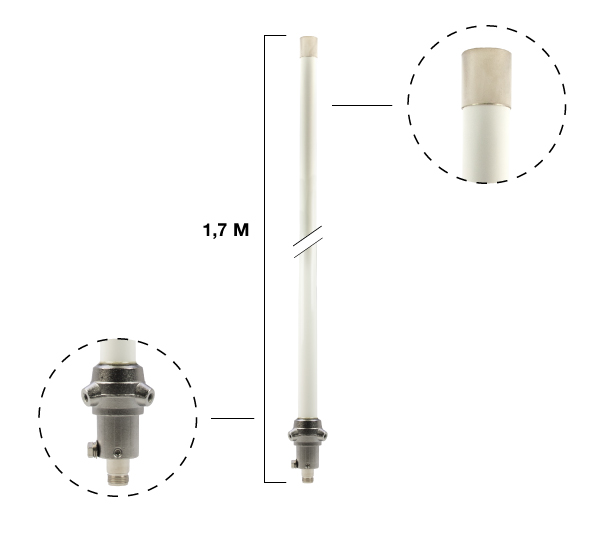

• Length: 170 cm
• Connector: N male
• Mast diamteter: 30 - 48 mm
• Max wind resistance: 60 m/sec (216 km/h)
