HAMKING HKX-200N2 Bibanda Antenna VHF / UHF144 / 430 MHz N connector
The HamKing HKX-200N2 vertical antenna for 144 MHz (6 dBi gain) and 430 MHz (8 dBi gain) fiberglass antenna is made up of two sections. Mast mounting brackets are included. Equipped with a 'N' low loss connector
4,088,66€ VAT included 73,27€ excl. VAT
Description HAMKING HKX200N2
HAMKING X200N
The HamKing HKX-200N2 vertical antenna for 144 MHz (6 dBi gain) and 430 MHz (8 dBi gain) fiberglass antenna is made up of two sections. Mast mounting brackets are included. Equipped with a low-loss 'N' connector for better performance. Maximum power: 200 watts. It can be installed in mast diameter 30 mm to 48 mm. Connection type N female. White antenna fiber length 2.5 m. Two sections.

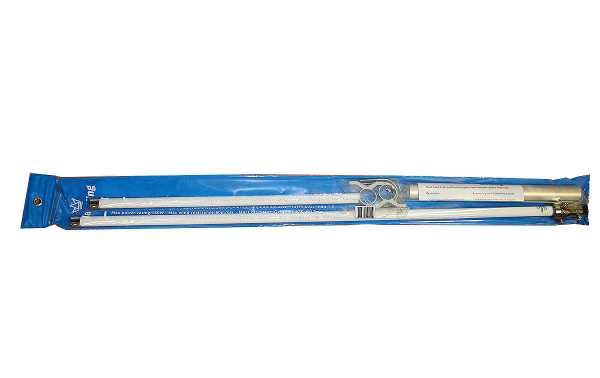

- 1 white fiber antenna.
- 2 Mast flanges from 30 mm to 48 mm
- 3 Radials length 52 cm.
- 1 English assembly manual.
You may be interested in the adapter to PL see link click <<< here >>>
Features
- Impedance: 50 Ohm
- VHF gain: 6 dBi
- UHF gain: 8 dBi
- Maximum power: 200 watts.
- VHF wavelength 2 x 5/8 (144 Mhz)
- UHF wavelength 4 x 5/8 (430 Mhz)
- Antenna length: 2.5 meters in two sections
- Section: 2
- Omnidirectional radiation
- Weight: 1200 grams
- ROE: 1.5 SWR
- Connector: N female
- Mast 30-48 mm
- Radial: 3 rods longitd 52 cm.
- Maximum wind resistance: 50m / sec (180 km / h)
