GP-MINI-DUAL KOMUNICA Dual band VHF-UHF antenna for base. 90cm

GP-MINI-DUAL KOMUNICA Dual band VHF-UHF antenna for base. Length 90cm. PL-259 PL female connector. Innovative Komunica antenna, dual band VHF/UHF. Easy and quick installation on mast and surface. Great wearable. more Manufacturer: komunica Reference GPMINIDUAL

(4,0) 1 Reviews

GP-MINI-DUAL KOMUNICA Dual band VHF-UHF antenna for base. length 90cm

not available

136,91€ incl. VAT

113,15€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

GP-MINI-DUAL

GP-MINI-DUAL KOMUNICA VHF-UHF dual band antenna for base. Length 90 cm. PL-259 PL female connector. Innovative Komunica antenna, dual band VHF/UHF. Easy and quick installation on mast and surface. Perfectly portable. Komunica's GP-MINI-DUAL antenna is a VHF-UHF dual band antenna designed for base use. It is 90 cm long and is equipped with a female PL-259 connector, making it easy to connect to compatible radio equipment. This antenna is especially suitable for portable applications, but can also be easily mounted on a mast or surface for use in a base configuration. Its innovative and compact design makes it versatile and easy to install in different environments. Komunica's GP-MINI-DUAL antenna allows you to operate in the VHF and UHF bands, giving you the flexibility to communicate on different frequencies according to your needs. It is compatible with two-way radios and other radio equipment using frequencies in the VHF-UHF band. With its robust and durable design, this antenna offers reliable performance and good signal quality. It is an ideal choice for both portable users and those who want a versatile and easy to install base antenna. Remember that for a safe and optimal installation, it is important to follow the instructions provided by the manufacturer and take into account safety considerations when mounting the antenna on a mast or surface. Enjoy clear and effective communication on the VHF and UHF bands with Komunica's GP-MINI-DUAL antenna.

GP-MINI-DUAL KOMUNICA Antena doble banda VHF-UHF para base. 90 cm.

kit content

1 Directive Antenna GP-MINI-DUAL

GP-MINI-DUAL KOMUNICA Antena doble banda VHF-UHF para base. 90 cm.

Characteristics

Model: GP-MINI-DUAL
Brand: FALKOS
Dual band format
Material Anodized Aluminum
Frequency 144 MHz / 1/4 wave
Frequency 430 MHz /1/4 wave
VSWR : < 1.5
Impedance 50 Ohms
HyGain: 3dB(VHF) / 5.5dB(UHF)
Polarization: horizontal
Frequency: 140 - 150MHz / 380 - 470MHz
Adjustment: Gamma-Match
Maximum power: 300 Watts

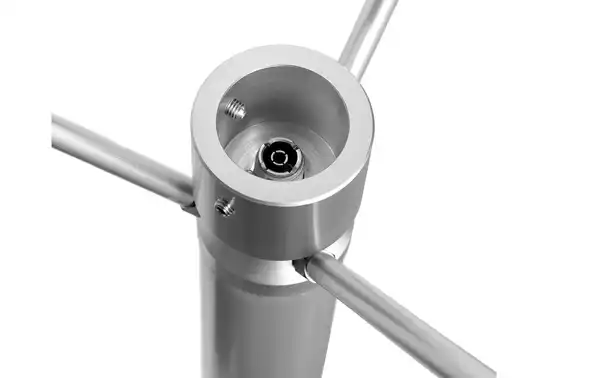

PL Female Connector
Mast diameter 35 mm
HyGain: 4dB(VHF) / 5dB(UHF)

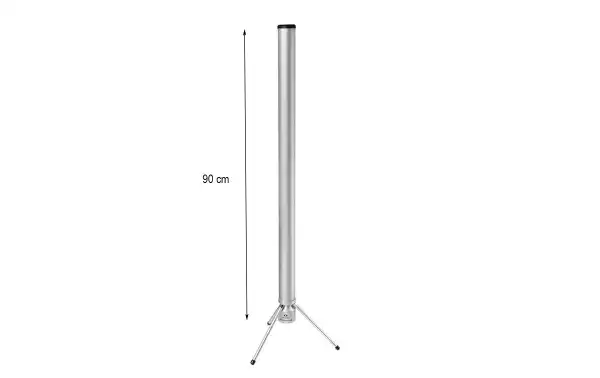

Antenna length 90 cm

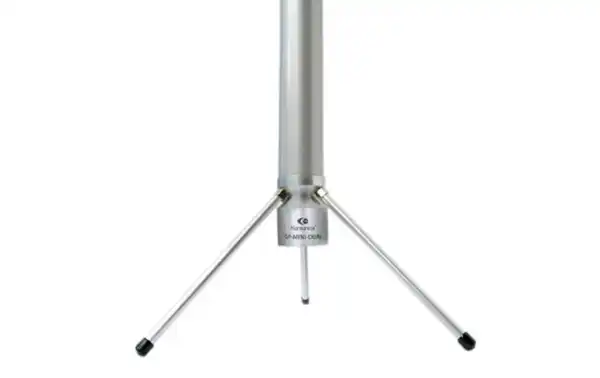

Radial length 3 x 19 cm each
Weight 1080 grams.

Reviews

Eugenio RMR 29-12-2025 | 11:42

La GP-MINI-DUAL es una antena compacta y omnidireccional con plano de tierra para 2m y 70 cm, que se puede montar permanentemente en un mástil o funcionar como antena portáble, por ejemplo, sobre una mesa de camping. Los 3 radiales sirven como soportes para la antena en terreno llano. La GP-MINI-DUAL es una discreta antena, de solo 90 cm de longitud. También es ideal para el balcón de un piso si no se pueden montar antenas más grandes. La instalación, la conexión y la puesta en marcha son muy sencillas y pueden realizarse en muy poco tiempo. Personalmente, la utilizo en salidas portable de VHF/UHF con muy buen rendimiento en todos los escenarios donde la he puesto a prueba, evidentemente cuanto más alta la puedas ubicar mejor será la experiencia que tengas con ella, yo la monto sobre un trípode de 5 metros de altura asegurada correctamente con sus respectivos vientos. La alimentación se realiza a través de una conexión PL-239 hembra. La GP-MINI-DUAL soporta un máximo de 300 vatios en transmisión. Saludos cordiales a toda la familia de Locura Digital. 73-51
