Reference X300PL | DIAMOND

DIAMOND X-300PL Dualband VHF / UHF base antenna. ORIGINAL JAPANESE

Dualband base antenna DIAMOND X-300PL ORIGINAL JAPANESE. Antenna valid for both VHF / UHF bands.

Make the first review
NOTIFY
not available

Description DIAMOND X300PL

DIAMOND X300NPL

diamond x30 ORIGINAL

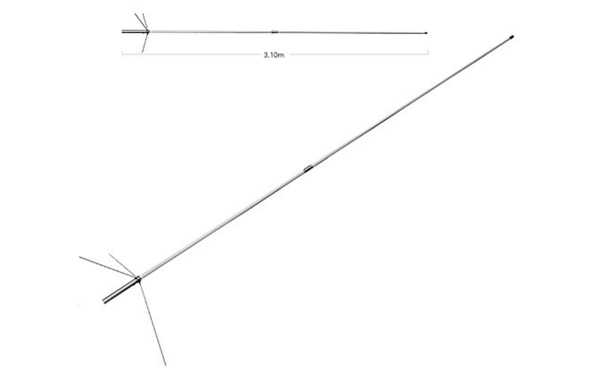

ORIGINAL JAPANESE DIAMOND BAND BASE Antenna X-300PL. Antenna valid to transmit and receive in two bands VHF 144 / UHF 430. It has three radials. It can be installed on mast diameter 30 mm to 60 mm. Connection type PL female. White fiber antenna length 3.10 m. Composed of two sections.

antena base bibanda diamond original japonesa x-300

DIAMOND X-300PL Kit Contents
  • 1 White fiber antenna two sections.
  • 2 Clamps for mast from 30 mm to 60 mm
  • 3 Radials length 52 cm.
  • 1 English assembly manual.

DIAMOND X30PL

base bibanda diamond original japonesa x-300

Features

  • Impedance: 50 Ohm.
  • VHF gain: 6.5 dB
  • UHF gain: 9.0 dB
  • Maximum power: 200 watts.
  • Wavelength VHF 2 x 5/8 (144 Mhz)
  • Wavelength UHF 5 x 5/8 (430 Mhz)
  • Antenna length: 3.10 meters
  • Weight: 1,5 kg.
  • SWR: 1.5 SWR
  • Connector: PL female
  • Sections: 2 joined
  • Radials: 3 rods length 52cm.
  • Rod material: Stainless steel.
  • Maximum wind resistance: 50 m / sec (112.5 MPH)
