13,59€ VAT included
Reference LEMMAT50 | LEMM
LEMM AT50 Dipole Antenna bands 40 - 80 - 160 meters (7 Mhz. - 3.5 Mhz....
LEMM AT-50 Wire Dipole Antenna with coils Frequencies (7 Mhz, 3.5 Mhz, 1.8 Mhz.) Band of 40-80-160 meters. Length 32.5 meters. The Lemm AT-450 wire antenna with coils is supplied complete with a center balun and its mounting bracket, as well
Make the first review271,63€ VAT included 224,49€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Delivery price from 30,25€
Description LEMM LEMMAT50

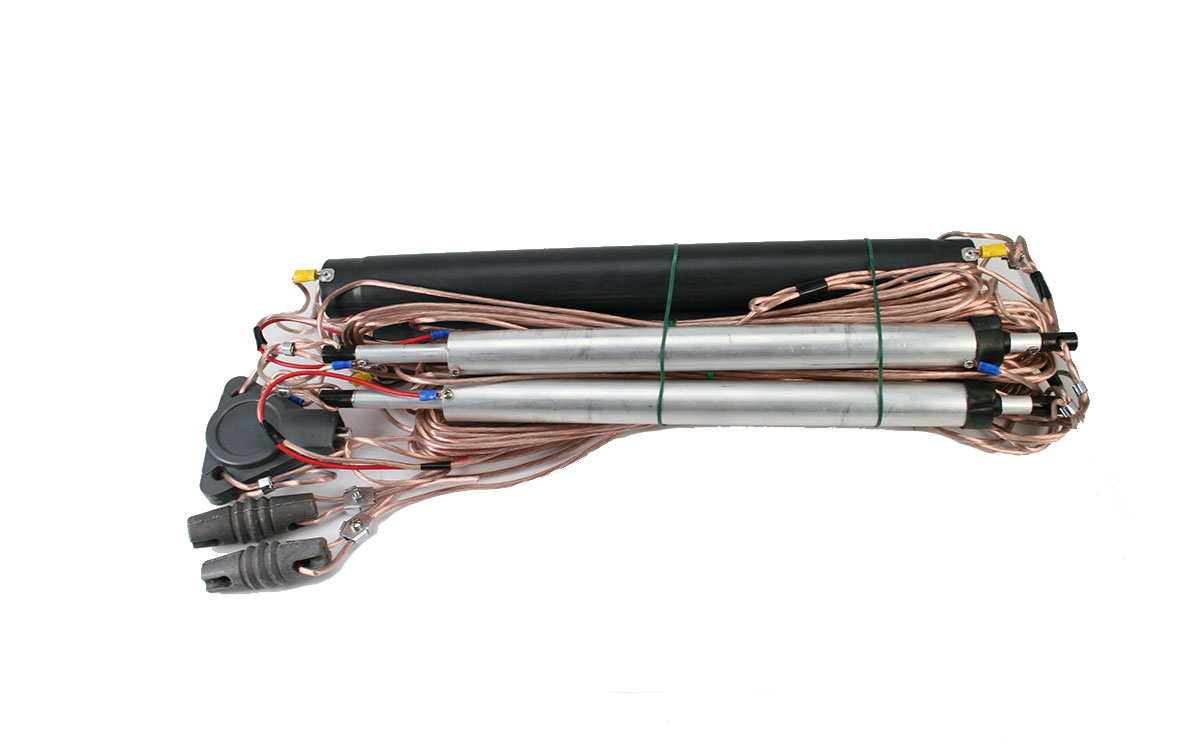

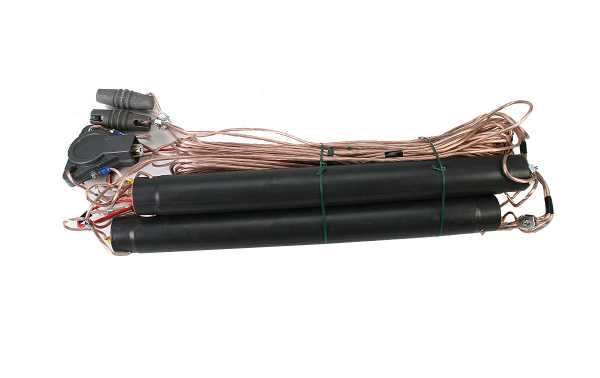

LEMM AT-50
LEMM AT-50 Wire Dipole Antenna with coils Frequencies (7 Mhz, 3.5 Mhz, 1.8 Mhz.) Band of 40-80-160 meters.
Length 32.5 meters. The Lemm AT-450 coil wire antenna is supplied complete with a center balun and its mounting bracket, as well as the 2 isolators.
Maximum power 500W
WEIGHT 3,600 Kg.
Kit contents
- 1 AT-50 Wire Dipole Antenna
- Mast mounting accessories
Characteristics
- Frequencies (7 Mhz, 3.5 Mhz, 1.8 Mhz.)
- Band of 40-80-160 meters.
- Impedance 50 ohms
- Bandwidth 200 Khz

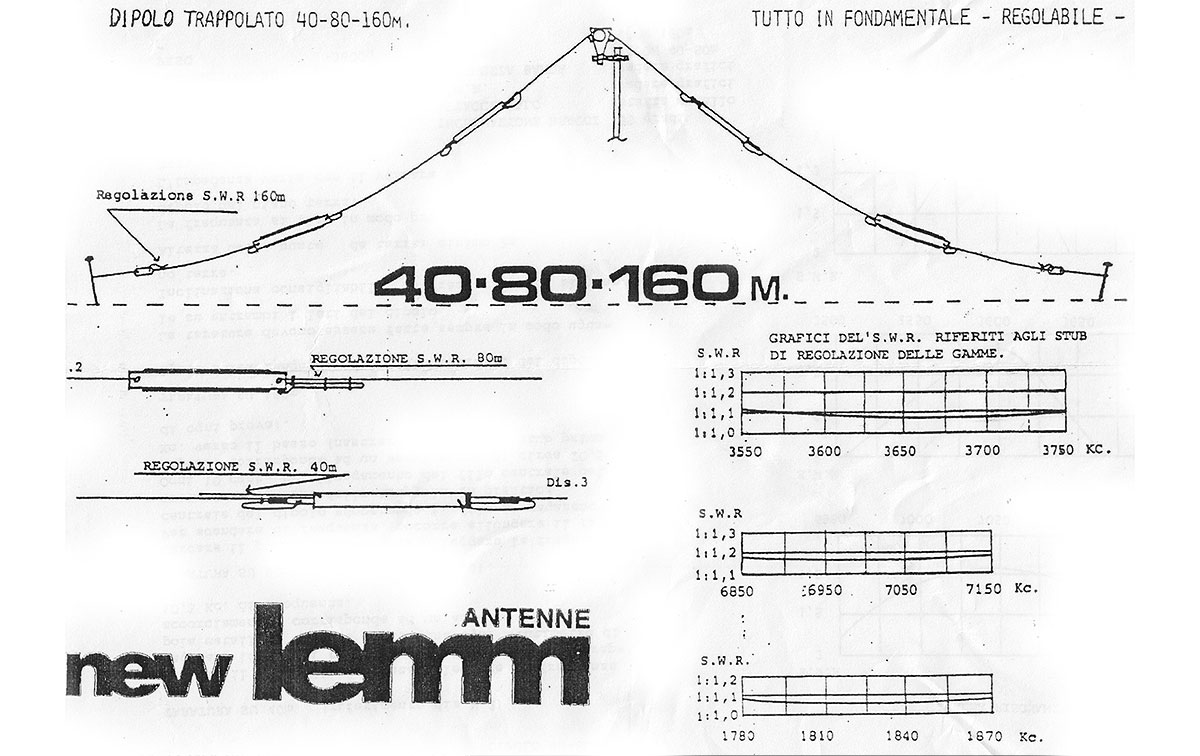

- Thread dipole format with traps
- Maximum power 500 watts
- Balum PL female connector
- Maximum length 32.5 m.
- Balum 1/1
- SWR 1.4
- Weight 3600 gr
Accessories LEMM LEMMAT50
