Reference LEMMAT47 | LEMM

LEMM AT47 Dipole Antenna bands 10-15-20 meters 28 Mhz, 21 Mhz, 14 Mhz

LEMM AT-44 Wire dipole antenna with coils Frequencies (28 Mhz, 21 Mhz, 14 Mhz.) Band of 10-15-20 meters. Length 7.2 m Wire antenna with coils Lemm AT-47 is supplied complete with a central balun and its mounting bracket, as well as the 2 to

Make the first review

135,83€ VAT included 112,26€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

You've seen it cheaper Request a quote
available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description LEMMAT47

LEMM AT-47

LEMM AT-44 Dipole wire antenna with coils Frequencies (28 Mhz, 21 Mhz, 14 Mhz.) Band of 10-15-20 meters.

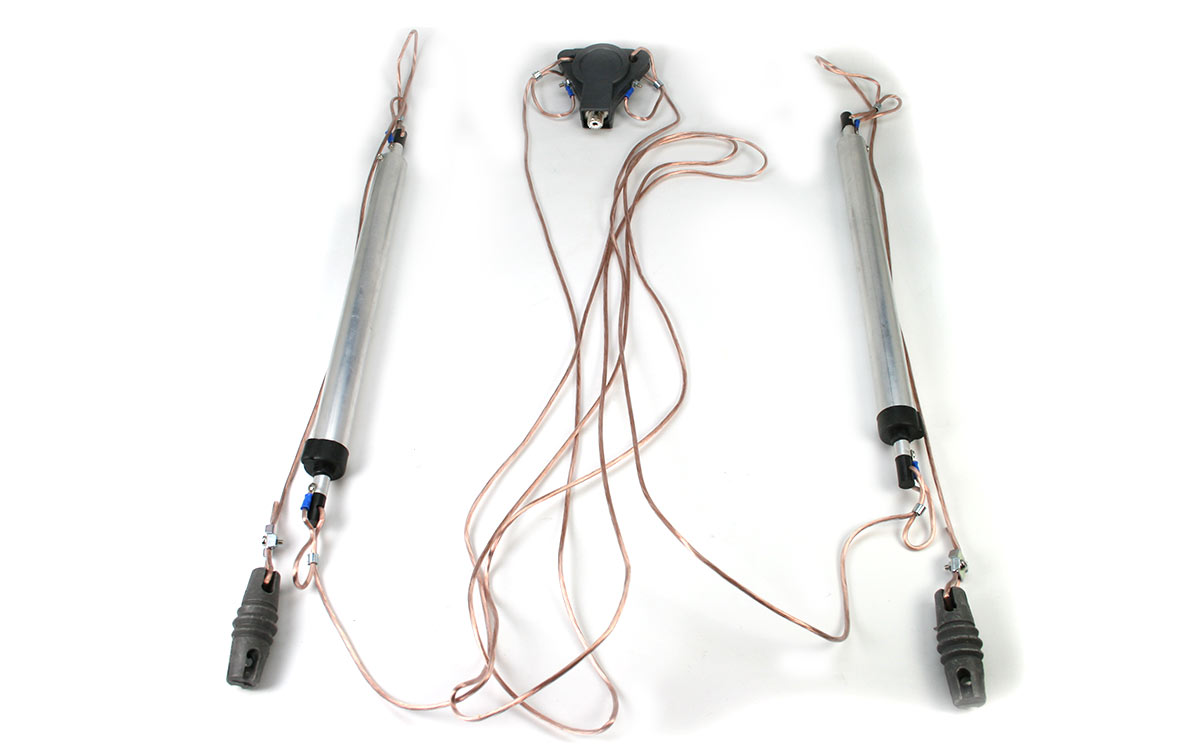

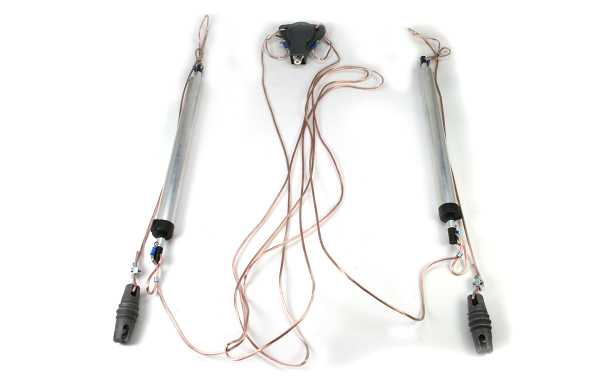

Length 7.2 m The Lemm AT-47 coiled wire antenna is supplied complete with a central balun and its mounting bracket, as well as the 2 insulators.
maximum power 1000W
WEIGHT 1,100 Kg.

LEMM AT47 Antena Dipolo bandas 10-15-20 metros 28 Mhz, 21 Mhz,14 Mhz

kit content
  • 1 AT-47 Wire Dipole Antenna
  • Mast mounting accessories

LEMM AT47 Antena Dipolo bandas 10-15-20 metros 28 Mhz, 21 Mhz,14 Mhz

LEMM AT47 Antena Dipolo bandas 10-15-20 metros 28 Mhz, 21 Mhz,14 Mhz

Characteristics

  • Frequencies (28 Mhz, 21 Mhz, 14 Mhz.)
  • Band of 10-15-20 meters.
  • Impedance 50 ohms
  • Bandwidth 200 Khz
  • Wire dipole format with traps
  • Maximum power 1000 watts
  • Balum PL female connector
  • Maximum length elements 7.2 m.
  • Balum 1/1
  • SWR 1.4
  • Weight 1100 grams
