LEMM AT4081 Dipole Antenna bands 40 (7 Mhz) 80 meters (3.5 Mhz)

LEMM AT4081 Dipole Antenna bands 40 (7 Mhz.) - 80 meters (3.5 Mhz.). Large version. power 1,000 watts Length 32 m The Lemm AT-4081 wire antenna with coils is supplied complete with a central balun and its mounting bracket, as well as the 2 to more Manufacturer: lemm Reference LEMMAT4081

Make the first review

LEMM AT4081 Dipole Antenna bands 40 (7 Mhz) 80 meters (3.5 Mhz)

available

148,18€ incl. VAT

122,46€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

LEMM AT-4081

LEMM AT-4081 Inverted V Dipole Antenna 40 bands (7 Mhz.) - 80 meters (3.5 Mhz.). Large version. power 1,000 watts

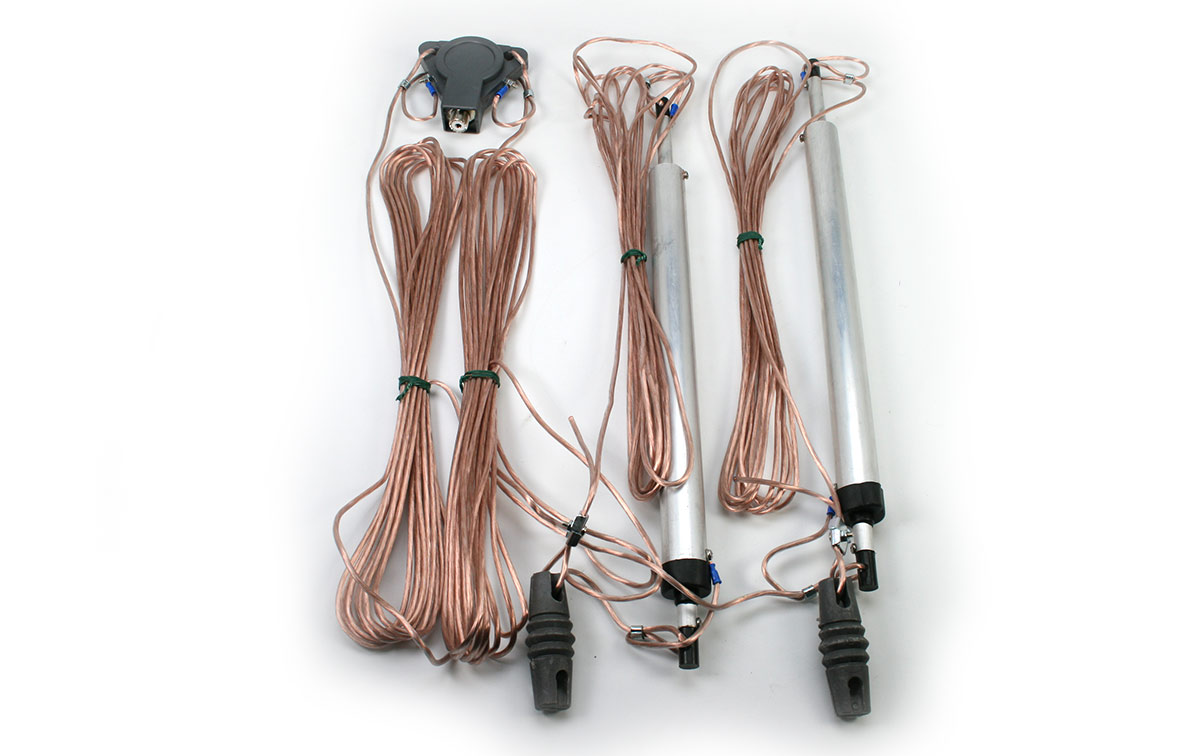

Length 32 m The Lemm AT-4081 coil wire antenna is supplied complete with a center balun and its mounting bracket, as well as the 2 isolators.
Maximum power 1000W
WEIGHT 2,100 Kg.

LEMM AT4081 Antena Dipolo bandas 40 (7 Mhz) 80 metros (3,5 Mhz)

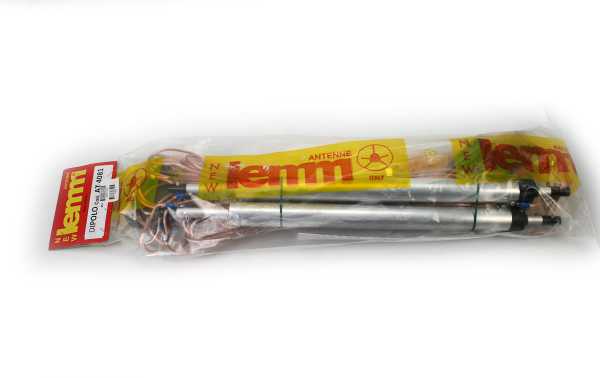

Kit contents

1 AT-4081 Wire Dipole Antenna
Mast mounting accessories

lemm at47 antena dipolo bandas 10-15-20 metros 28 mhz, 21 mhz,14 mhz

LEMM AT4081 Antena Dipolo bandas 40 (7 Mhz) 80 metros (3,5 Mhz)

Characteristics

Frequencies (3.5 Mhz, 7 Mhz.)
80-40 meter band.

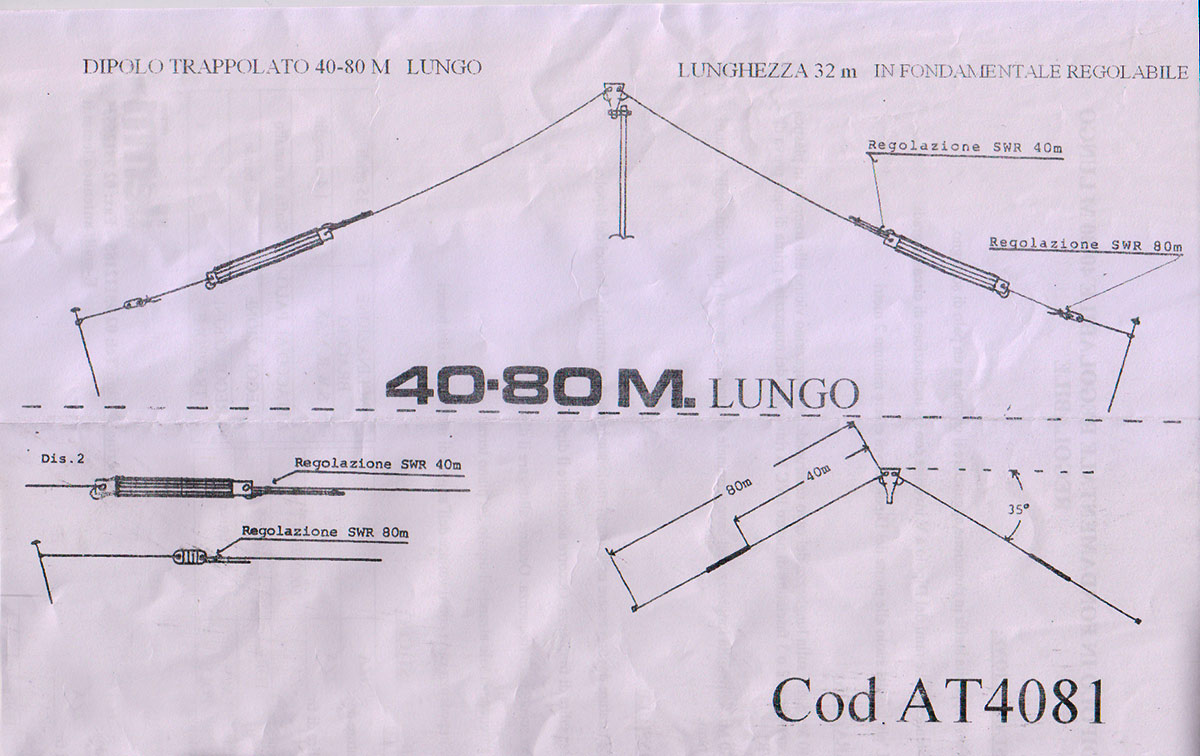

Inverted V installation
Impedance 50 ohms
Bandwidth 200 Khz
Thread dipole format with traps
Maximum power 1000 watts
Balum PL female connector
Maximum element length 32 m.
Balum 1/1
SWR 1.4
Weight 2100 gr
