LEMM AT4080 Dipole Antenna bands 40 (7 Mhz.) - 80 meters (3.5 Mhz.)

LEMM AT-4080

LEMM AT4080 Dipole Antenna bands 40 (7 Mhz.) - 80 meters (3.5 Mhz.) Short version. Power 1,000 watts

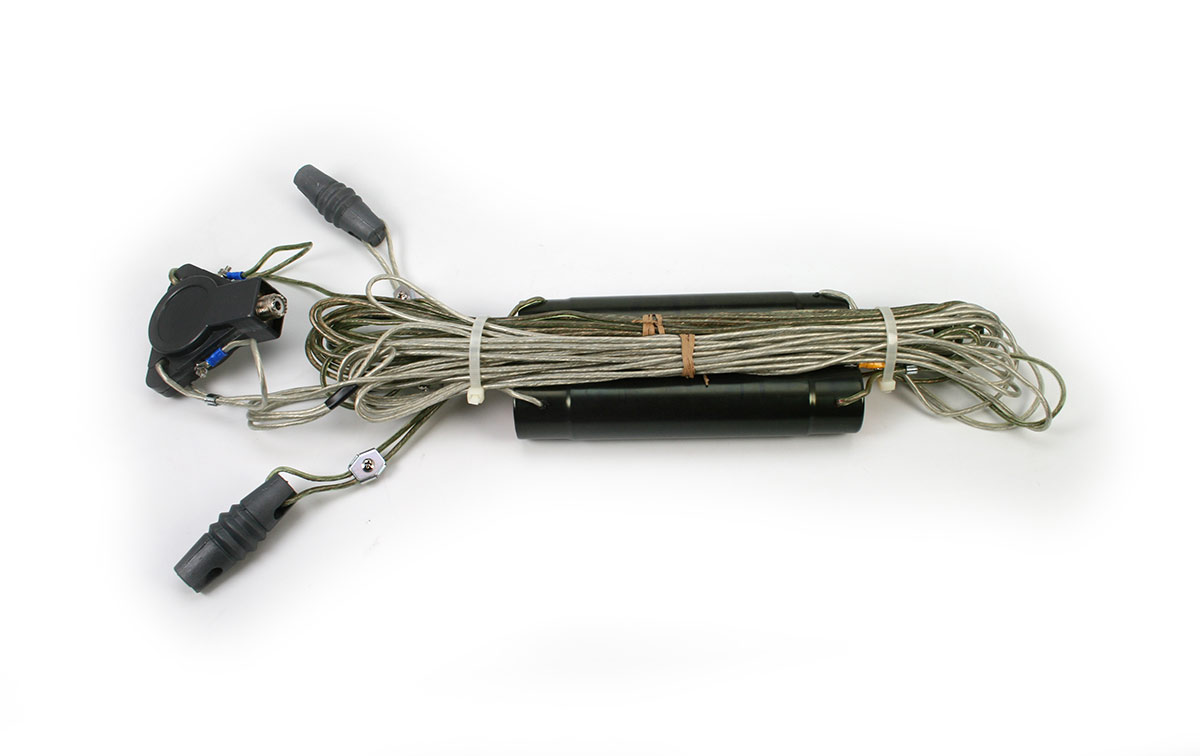

Length 20 m The Lemm AT-4080 coil wire antenna is supplied complete with a central balun and its mounting bracket, as well as the 2 isolators.
Maximum power 1000W
WEIGHT 1,900 Kg.

Total length 20 meters.

• 1 AT-4080 Wire Dipole Antenna
• Mast mounting accessories

Characteristics

• Frequencies (3.5 Mhz, 7 Mhz.)
• 80-40 meter band.

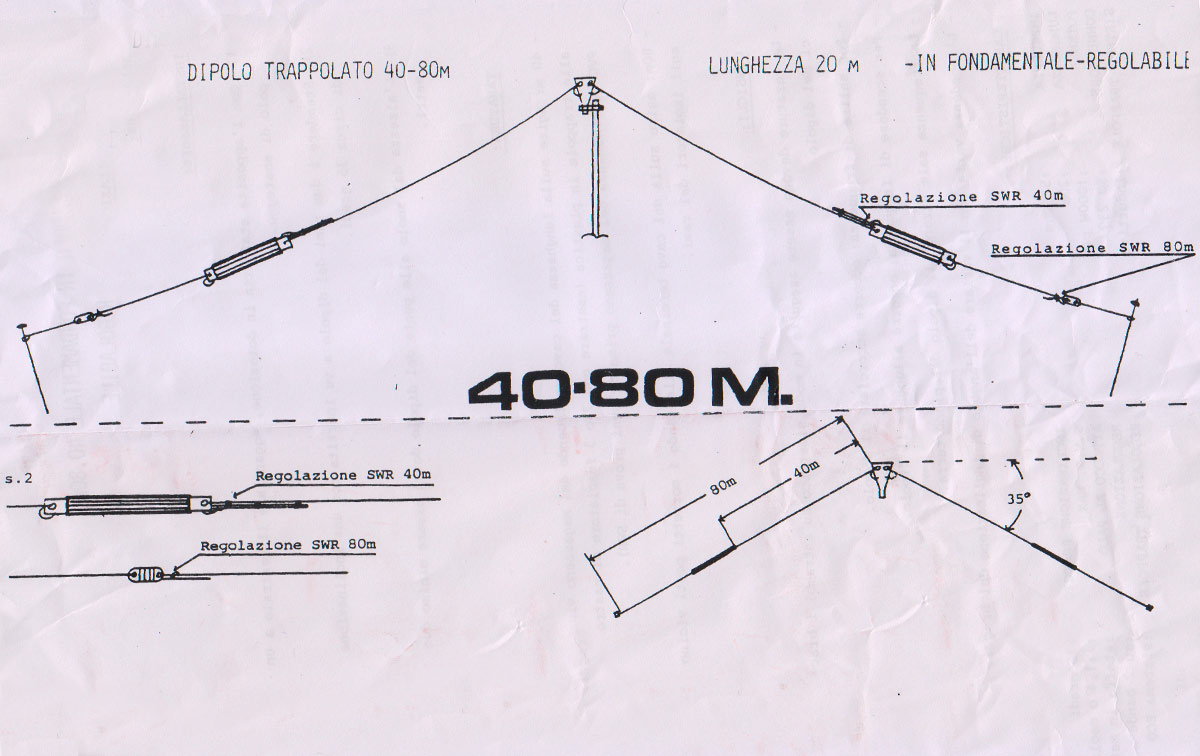

• Inverted V installation
• Impedance 50 ohms
• Bandwidth 200 Khz
• Thread dipole format with traps
• Maximum power 1000 watts

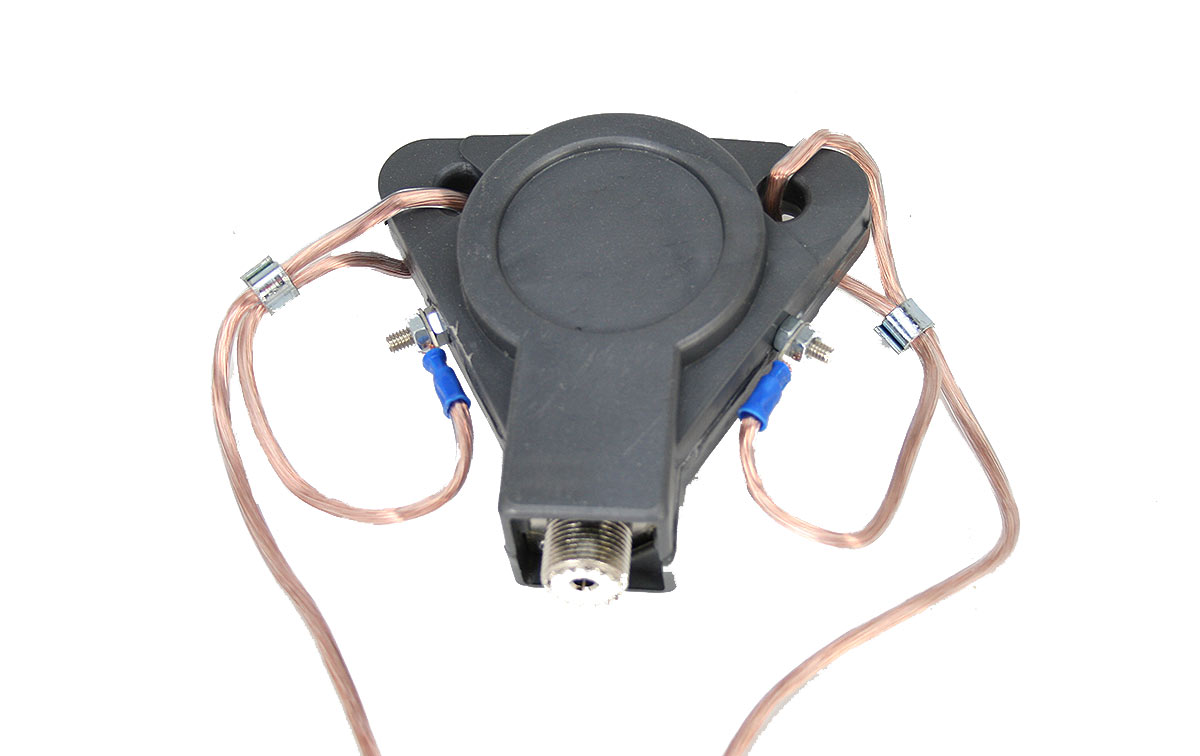

• Balum PL female connector
• Maximum total cable length 20 m.
• Balum 1/1
• SWR 1.4
• Weight 1900 gr
