LEMM AT-44 Wire Dipole Antenna 7 Mhz Band of 40 meters

LEMM AT-44

LEMM AT-44 Dipole wire antenna 7 Mhz Band of 40 meters Maximum power 900W
Overall length 10.5m
Length 1 section 5.25 meters and Length 2 section 5.25 meters - Total 10.5 meters.

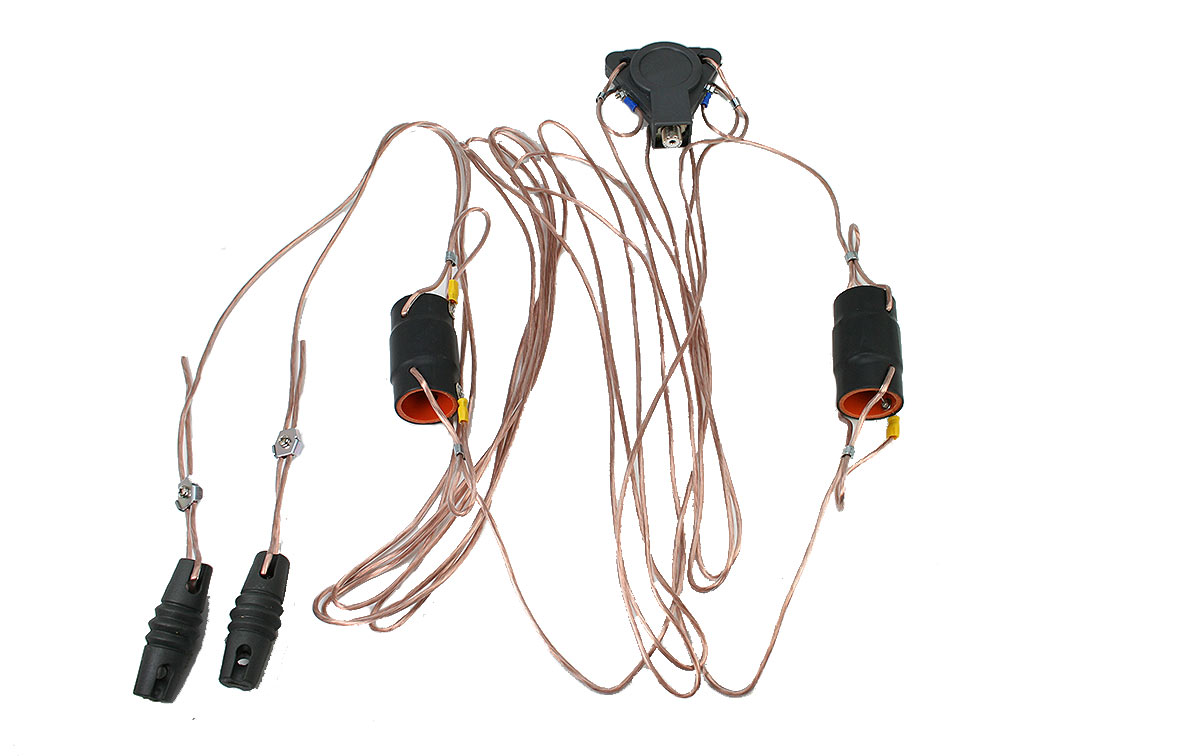

The Lemm AT-44 wire antenna is supplied complete with a central balun and its mounting bracket, as well as the 2 insulators.

WEIGHT 1 Kg.

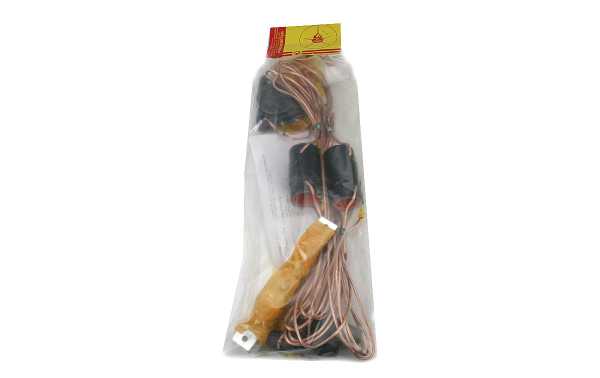

• 1 AT-44 Wire Dipole Antenna
• Accessories for mast mounting

Characteristic

• Frequencies 7 Mhz - Band 40 meters
• Impedance 50 ohms
• Bandwidth 200 Khz
• Wire dipole format
• Maximum power 900 watts
• Total length of elements 10.5 m.
• Length 1 section 5.25 meters and Length 2 section 5.25 meters - Total 10.5 meters.
• Balum 1/1 female PL connector
• SWR 1.4
• Weight 990 grams
