Reference D4CUSHCRAFT | CUSHCRAFT

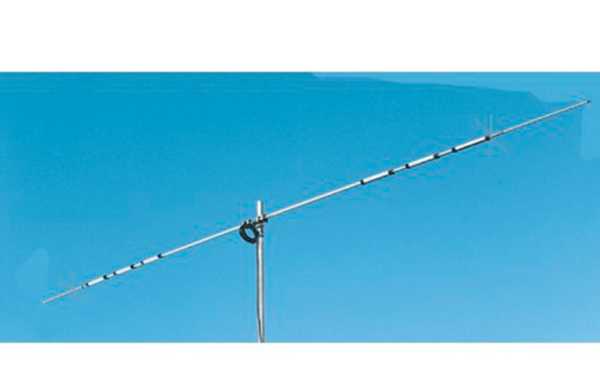

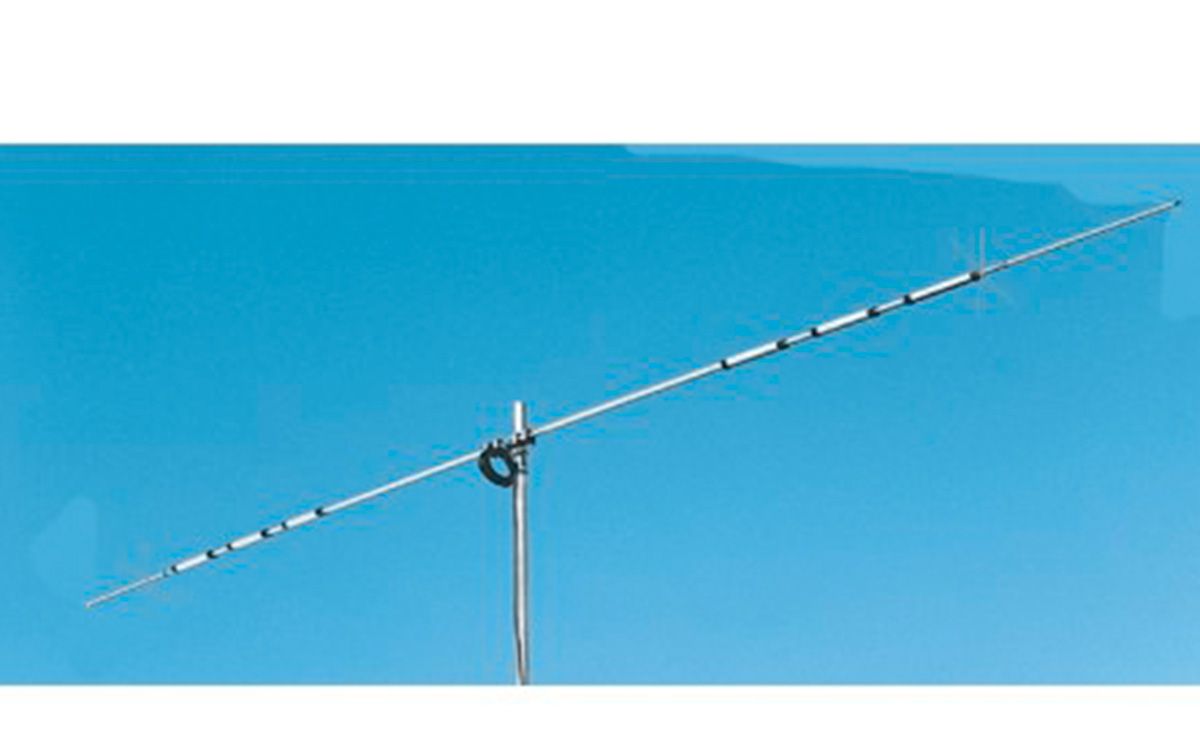

D4 CUSHCRAFT Antena Dipolo 7/14/21/28 Mhz Potencia maxima 1500W
D4 CUSHCRAFT Antena Dipolo 7/14/21/28 Mhz Potencia maxima 1500W LONGITUD MÁXIMA DE ELEMENTOS 10,92 m SUPERFICIE MÁXIMA DE ANTENA 0,12 m2 DIAMETRO MÁSTIL 32-50 mm PESO 6 Kg.
We're sorry, this item is no longer available.
Description CUSHCRAFT D4CUSHCRAFT
Cushcraft D-4
D4 CUSHCRAFT Dipole Antenna 7/14/21/28 Mhz Maximum power 1500W
MAXIMUM ELEMENT LENGTH 10.92 m
MAXIMUM ANTENNA SURFACE 0.12 m2
MAST DIAMETER 32-50 mm
WEIGHT 6 Kg.
Contents of the kit
- 1 Dipole antenna D-4
- Accessories for assembly
characteristics
- Frequencies 7/14/21/28 Mhz 10/15/20/40 meters
- Impedance 50 ohms
- Maximum power 1500 watts
- Maximum length elements 10.92 m.
- Mast assembly 38-50 mm
- Weight 6 kg
- Rigid dipole format
