62,92€ VAT included
Reference BIDATONGLW20 | BIDATONG EAN 4250158725935
BIDATONG LW-20 Stainless steel cable length 20m frequencies 0.5 -50
BIDATONG LW-20 1.5 mm thick stainless steel cable antenna. Cable length: 20 meters with insulators. For mounting dipoles from 0.5 to 50 Mhz. In transmission, it must be powered by a 1: 9 ratio magnetic balum (not included) for a
Make the first review45,98€ VAT included 38,00€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€
Description BIDATONG BIDATONGLW20
LW-20

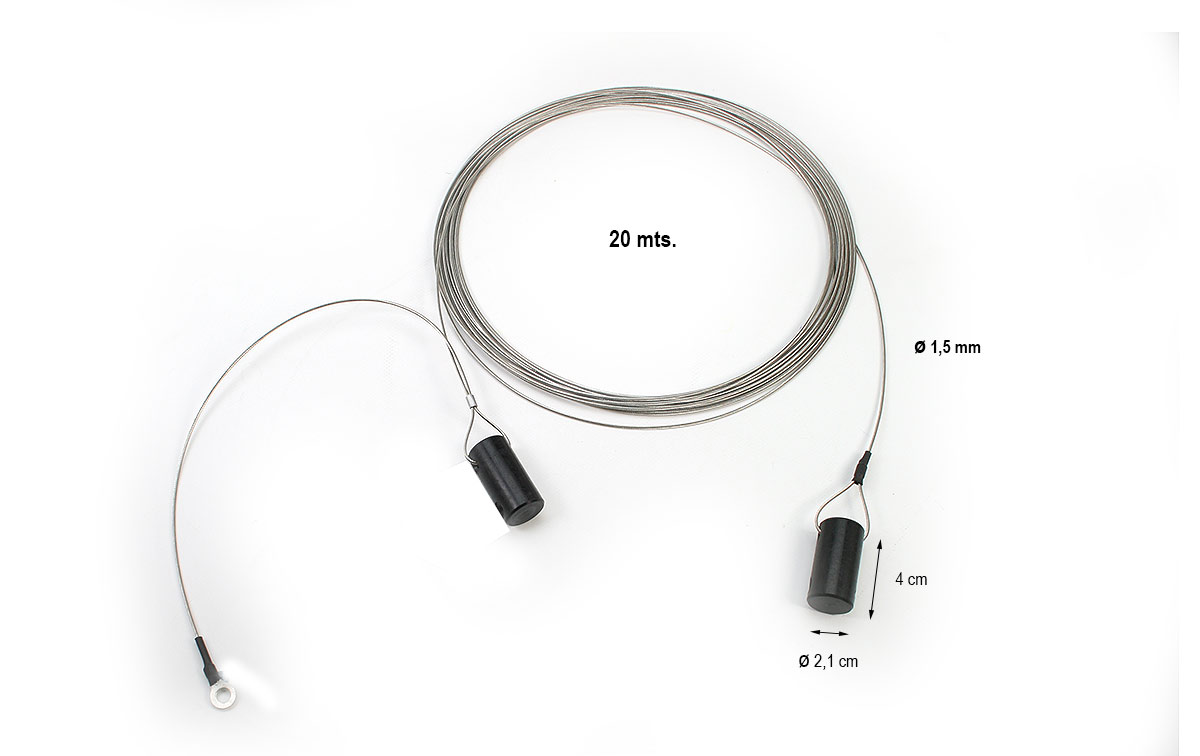

BIDATONG LW-20 1.5 mm thick stainless steel cable antenna. Cable length: 20 meters with insulators. For mounting dipoles from 0.5 to 50 Mhz. In transmission, it must be powered by a 1: 9 ratio magnetic balum (not included) to adapt the impedance of the cable to the transmitter. Suitable for powers up to 1 kW. For reception only, it can work without balum.
Also suitable for reception purposes without balun
Kit contents
- LW-20 cable
- 2 Insulator
Characteristics
- Frequencies 0.5 -50 Mhz
- Length 20 meters
- Cable diameter ø 1.5 mm
- Cable Stainless steel
- Insulators x 2 PVC
- 40 cm Balum connection cable
- Maximum power 1 kw
- Weight 300 gr.
