BIDATONG
Reference BIDATONGLW10 | BIDATONG EAN 4250158725942

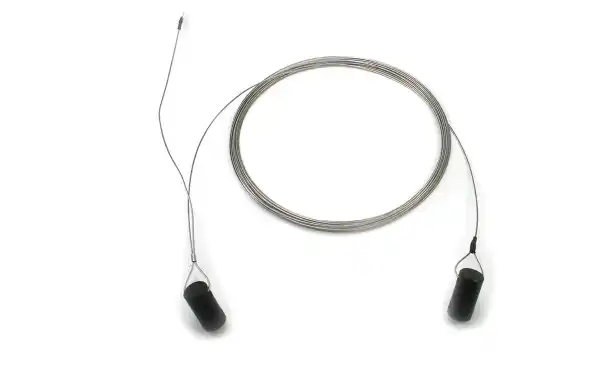

BIDATONG LW-10 Stainless steel cable length 10m frequencies 3.5 -50

BIDATONG LW-10 1.5 mm thick stainless steel cable antenna. Cable length: 10 meters with insulators. For mounting dipoles from 3.5 to 50 Mhz. In transmission, it must be powered by magnetic balum with a 1: 9 ratio (not included) for a

Make the first review

39,93 VAT included 33,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

not available Will be received soon Delivery price from 6,50€

Description BIDATONG BIDATONGLW10

LW-10

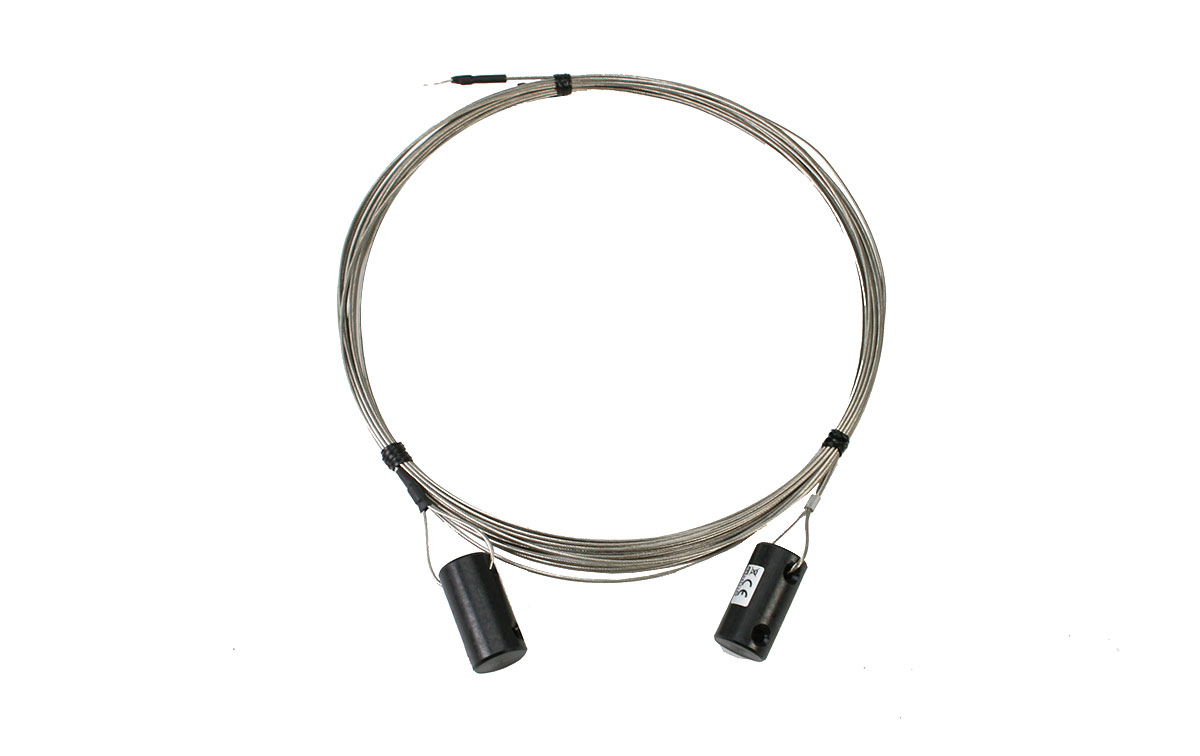

BIDATONG LW-10 1.5 mm thick stainless steel cable antenna. Cable length: 10 meters with insulators. For mounting dipoles from 3.5 to 50 Mhz. In transmission, it must be powered by a 1: 9 ratio magnetic balum (not included) to adapt the impedance of the cable to the transmitter. Suitable for powers up to 1 kW. For reception only, it can work without balum.
Also suitable for reception purposes without balun

IDATONG LW-10 Antena de cable acero inoxidable. Longitud 10 metros con aisladores para montaje de dipolos de 3,5 a 50 Mhz

Kit contents
  • LW-10 cable

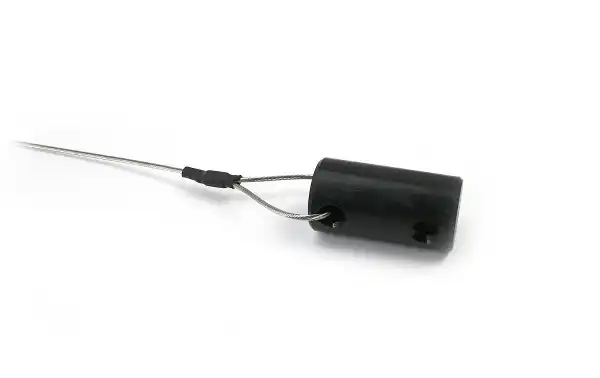

  • 2 Insulator

IDATONG LW-10 Antena de cable acero inoxidable. Longitud 10 metros con aisladores para montaje de dipolos de 3,5 a 50 Mhz

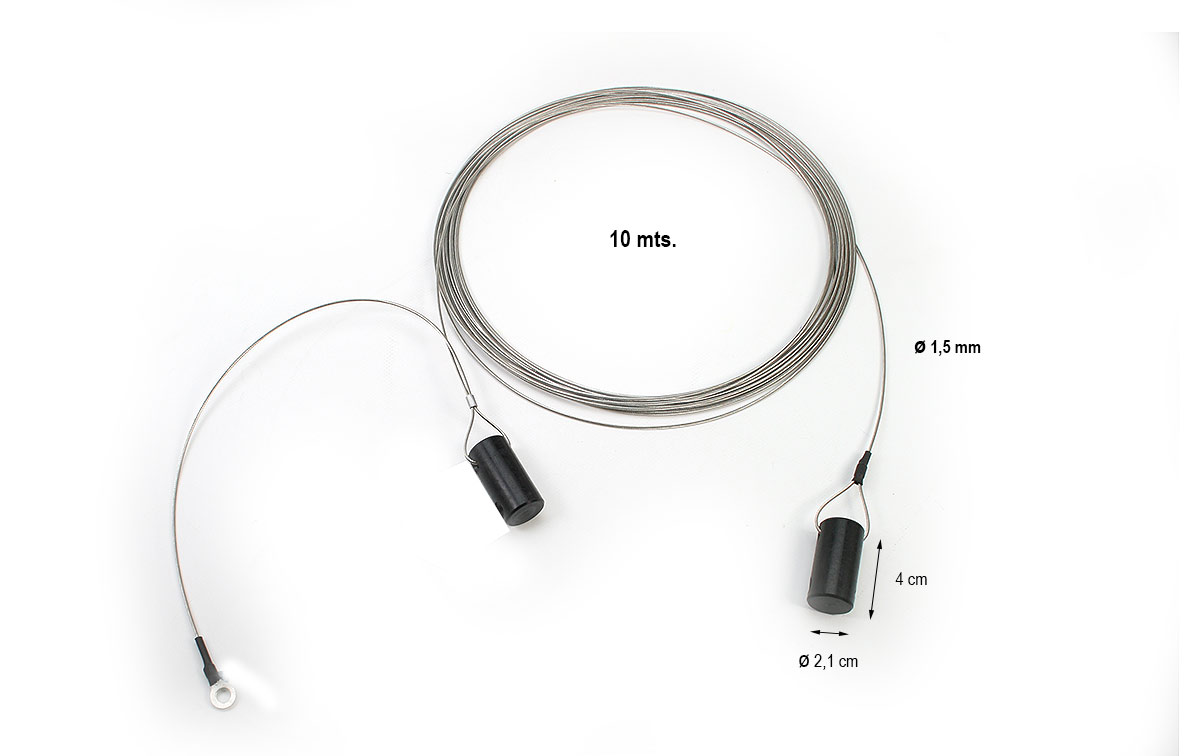

Characteristics

  • Frequencies 3,5 -50 Mhz
  • Length 10 meters
  • Cable diameter ø 1.5 mm
  • Cable Stainless steel
  • Insulators x 2 PVC
  • 40 cm Balum connection cable
  • Maximum power 1 kw
  • Weight 150 gr.

Accessories BIDATONG BIDATONGLW10
