KENWOOD NXR-1700-KIT VHF repeater KPSRPT source and DPF26H VHF duplexer

NXR-1700E-KIT VHF

The Kenwood NXR-1700E-KIT VHF is a VHF repeater that combines analog capabilities with DMR and NXDN digital technology, allowing a gradual migration to digital communication. Designed to provide high quality in two-way radio networks, it is suitable for mission-critical environments. It includes the KPSRPT power supply for stable operation and a DPF26H VHF duplexer that allows efficient use of the spectrum, improving the quality and range of communications on VHF frequencies. Ideal for users who need flexibility in analog and digital communication.

KENWOOD NXR-1700E KIT-VHF. This is a VHF repeater designed to operate in the 136-174 MHz range. This repeater comes configured in analog mode from the factory, but can be converted to digital through licenses to operate in DMR or NEXEDGE (NXDN), which gives it great flexibility in its use.

Software options:
DMR Conventional License: Allows you to enable DMR (Digital Mobile Radio) mode, providing clear and efficient digital communication for professional applications.

NXDN Conventional License: Activates NXDN mode, a digital radio protocol developed by Kenwood and Icom that improves coverage capacity and audio quality, ideal for large-scale radio networks.

Conventional IP Network License: Enables IP networking for multiple sites, allowing communication between repeaters over the IP network, both in analog and digital mode, extending coverage over wider geographic areas.

SIP Phone License for NXDN or DMR: Allows the integration of SIP phones with the radio system, enabling interoperability between telephone networks and NXDN or DMR radios, facilitating communication between telephone and radio users.

These software licenses allow you to customize the KENWOOD NXR-1700E for different work environments and improve its performance according to the user's communication needs.

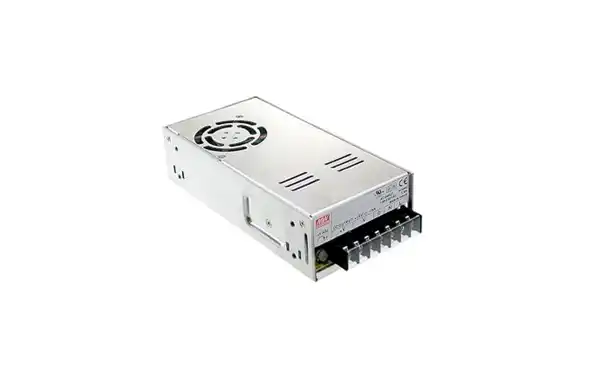

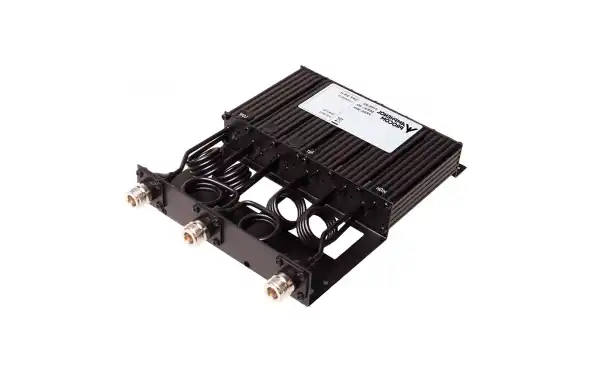

Note: Includes power supply ref. KPSRPT and includes duplexer ref. VHF-DPF26H
Note: Does not include DMR or NXDN license, consult Locura Digital tel. 938616372

DMR License: Not Included
The Kenwood KWDNX10DCK DMR license is an activation key that allows compatible equipment (such as the NXR-1700E repeater) to use DMR digital functions, expanding the system's capabilities to operate in digital modes in addition to analog. This license is required to unlock advanced features on DMR digital radio networks, such as improved channel management and greater clarity in long-distance communication.
NXDN License: Not Included
The Kenwood NXDN KWDNX10NCK license enables NXDN functionality on compatible devices, such as the NXR-1700E repeater, expanding its capabilities to operate on the NXDN digital standard. This is ideal for voice and data communication networks in professional environments, providing greater audio clarity, security and spectrum efficiency. This license is essential for users requiring secure and efficient digital communication on NXDN systems.

Characteristics

• Frequency range: 136-174 MHz
• Number of channels: 32
• Frequency spread: 38 MHz
• Analog channel spacing: 25 kHz / 20 kHz / 12.5 kHz
• Digital channel spacing: 12.5 kHz / 6.25 kHz
• Antenna impedance: 50 Ohm
• Transmission consumption: 12.0 A (maximum power), 9.0 A (25W)
• Frequency tolerance: ±0.5 ppm (-30°C to +60°C)
• Power supply: 10.8 - 15.6 V DC
• Weight: 1.9 kg
• RF output power: Adjustable between 50W and 1W
• Operating Mode: Up to 50W at 50% duty cycle
• Full cycle mode: 25W at 100% duty cycle
• Compact design: Accommodates 2 repeaters in a 19-inch rack
• Rack height: 1U height

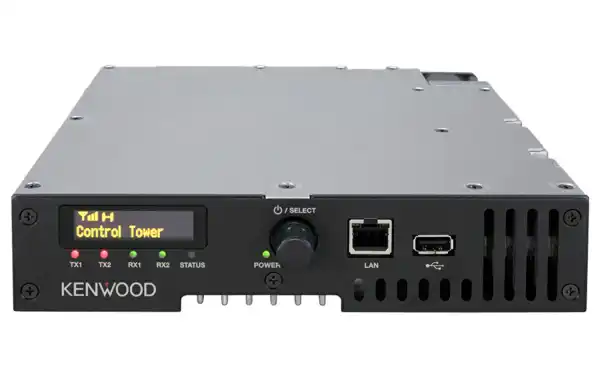

• OLED Display: 1.71 inch size
• OLED display: With icons and numeric display
• Temperature controlled fan
• Dual Digital Protocol: Supports DMR Tier II and conventional NXDN
• Individual programming: DMR and NXDN can be programmed one at a time
• Simplex and half-duplex mode (no repetition)
• NXDN analog and digital mode
• Conventional IP Network: Supports up to 16 sites
• IP Network: Compatible in digital and analog mode
• Software Option: For multi-site conventional IP network
• System Redundancy: Active Standby
• SNMP Protocol: Direct reporting to generic systems
• Remote Control: IP Remote Control Interface (IPRCI)
• Compatibility: With other Kenwood solutions
• Multi-site technology: For extended coverage
• Expandability: Through digital licenses
• Energy efficiency: Compact and optimized
• Active ventilation: With automatic thermal management
• Support for multiple modes: Digital and Analog
• Fast Switching: Between DMR and NXDN
• Programmable via software
• Standard Rack: Ideal for professional spaces
• Rack efficiency: Minimize space in shared racks
• High RF power: Up to 50W for long range
• Technical Support: Extensive Kenwood technical support network
