Spytechnology JJN Digital
Reference EDD24T | Spytechnology JJN Digital

EDD-24T nonlinear detector NON LINEAR JUNCTION NLJD portable handheld

The new EDD-24T is a portable nonlinear junction detector (NLJD). It detects all types of electronic devices, whether active, passive, or even powered off. It will detect the presence of semiconductor circuits used in all devices.

Make the first review

12.783,65€ VAT included 10.565,00€ excl. VAT

You've seen it cheaper Request a quote
available. Envio a partir de 2 días. Delivery price from 30,25€

Description Spytechnology JJN Digital EDD24T

EDD-24T

The new EDD-24T is a portable nonlinear junction detector (NLJD). It detects all types of electronic devices, whether active, passive, or even switched off.
It will detect the presence of semiconductor circuits used in all modern electronic devices, such as cell phones, tracking devices, listening devices, hidden cameras, digital voice recorders, SIM cards, etc. Importantly, the EDD-24T will detect such devices whether they are turned on and in use, turned on but in standby mode, or even turned off without power. Semiconductor electronics are used in all modern electronics and are manufactured using silicon substrates. When high-frequency radio signals are transmitted directly onto silicon, a strong second harmonic frequency of that radio signal is produced. Other materials, such as some bimetals or oxidized metals, may respond with a third harmonic signal.

The EDD-24T transmits a focused directional signal at 2.4 GHz (ISM Type B band). It receives at 4.8 GHz (second harmonic) and 7.2 GHz (third harmonic).

The highly sensitive receiver will respond to any signal produced at the second harmonic by even the smallest piece of silicon, such as that used in SIM cards, mobile phones, listening devices, voice recorders, covert video cameras, etc., and will need to be in use, in standby mode, or even have any power source connected to them to be detected.

The third harmonic receiver acts as a valuable confirmation of signals that may be ambiguous or non-threatening, such as those from oxidized metals, bimetals, etc.

Detects all types of electronic components, whether active, passive or even switched off

el edd-24t es un detector de unión no lineal o nljd portátil compacto. detectará la presencia de circuitos semiconductores que se utilizan en todos los dispositivos electrónicos modernos, como teléfonos móviles, dispositivos de rastreo, dispositivos de escucha, cámaras ocultas, grabadoras de voz digitales, tarjetas sim, etc. es importante destacar que el edd-24t detectará dichos dispositivos ya sea que están encendidos y en uso, encendidos pero en modo de espera, o incluso apagados sin energía.

Kit contents
  • 1 EDD-24T Handheld Electronic Device Detector - Weight 700 g
  • 1 Charger: 110V to 240V AC input (auto switching) with international adapters 5V DC 2A output
  • 1 Headphones

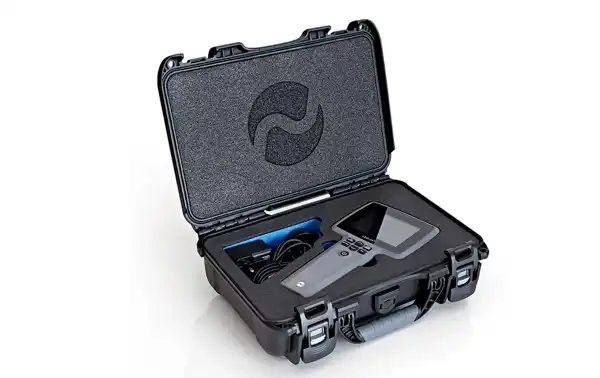

  • 1 Carrying case.

la electrónica de semiconductores se utiliza en toda la electrónica moderna y se fabrica utilizando sustratos de silicio. cuando las señales de radio de alta frecuencia se transmiten directamente sobre el silicio, se produce una fuerte segunda frecuencia armónica de esa señal de radio. otros materiales, como algunos bimetales o metales oxidados, pueden responder con una señal de tercer armónico.

Characteristics

  • Portable NON-LINEAR JUNCTION Detector (NLJD)

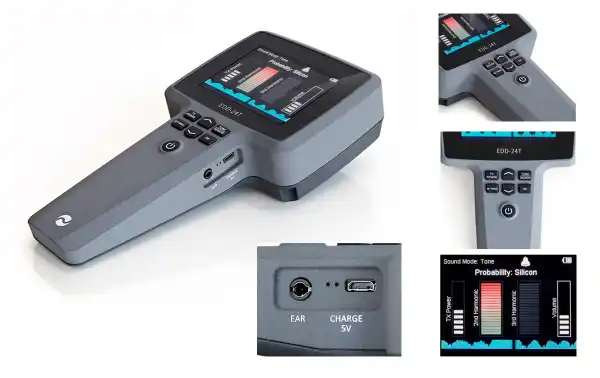

  • 3.5" Display
  • Detects all types of electronic components, whether active, passive or even switched off
  • Easy to operate with an intuitive and user-friendly interface
  • 2.4 GHz Transmission - 4 Watts
  • Second harmonic (4.8 GHz) and third harmonic (7.2 GHz) receivers
  • As powerful and responsive as much larger so-called "portable" units
  • Material detected Indicator 'Silicon' or 'Metal'
  • Micro USB charging plug DC 5V 1A
  • It will even detect the latest NANO SIM cards up to 20cm.
  • Audible tone and demodulation function through speaker or headphones
  • Battery life up to 4.5 hours.
  • Charger input 110/220V Auto-switching - International adapters Output 5V DC 2A
  • Weight 700g
  • Aluminum box

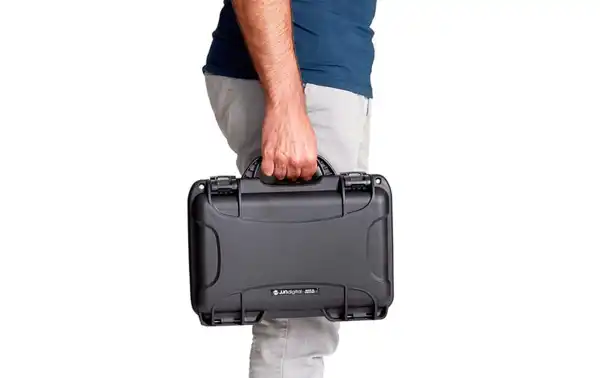

  • Supplied in a standard military carry case
  • Dimensions 225 mm x 118 mm x 51 m
  • Gray housing color
