Description HSAQ1
HSAQ-1

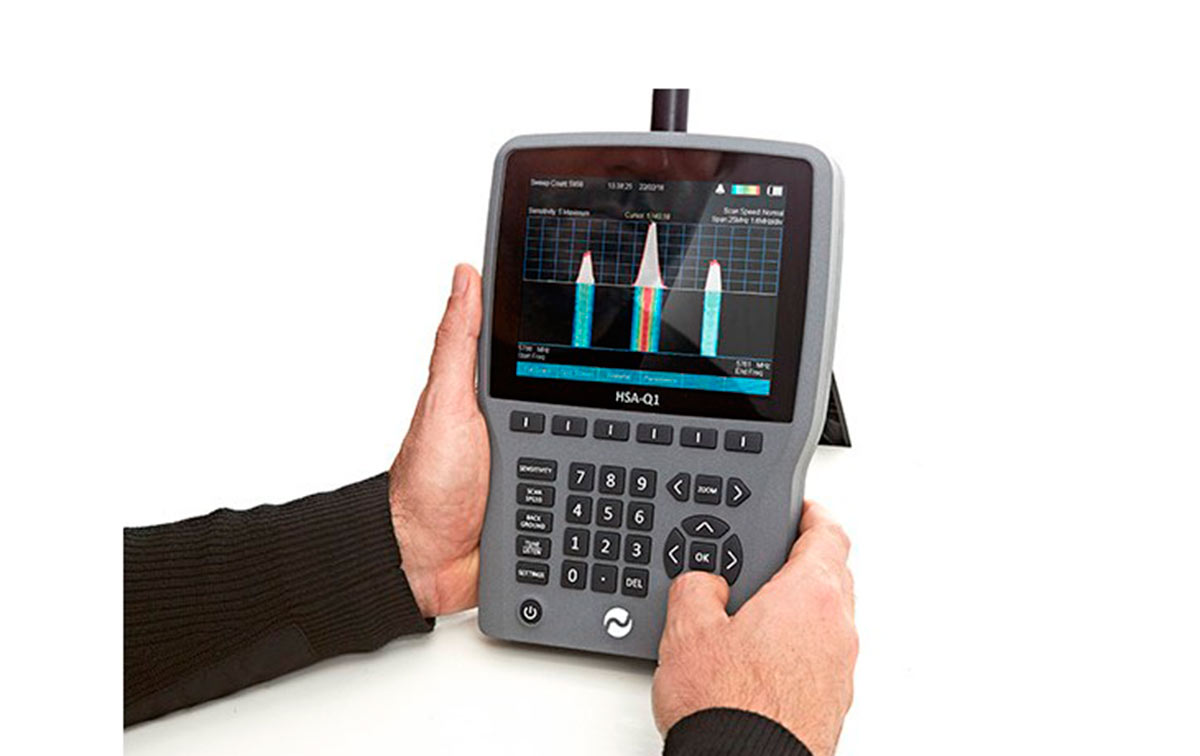

The HSA-Q1, is a portable RF spectrum analyzer, specially designed for the use of professional counter-measures (TSCM).
With a frequency range of 0 to 13.4 GHz, in a sweep time of only half a second, it offers unprecedented performance to guarantee the detection of all types of RF signals, especially the bursts or pulses that other scanning units They can be overlooked.
It has been designed with the highest possible technical specification to guarantee maximum detection capacity and has a range of features to help with RF detection or "Sweep" measurements.
Although its technical capacity is very easy to use
The frequency ranges can be configured from a full range of 13.44 GHz to 25 Mhz when a detailed analysis of the signal is required. Simply move the cursor over any detected signal and press the 'Zoom' button to see the signal in more detail.
The cascade function (spectrogram) shows a full-color graphic display in real time of any detected signal to allow the user a deeper analysis. This is especially useful in the analysis of modern pulsed digital signals (or frequency hopping signals) such as those based on cellular, Wi-Fi, Burst and GPS.
The RF sensitivity can be adjusted in 5 levels: Maximum (-80 dBm), for example, to detect all signals, including those from other adjacent rooms or even outside the building, up to the Minimum for when the location of a signal is required. specific near signal source.

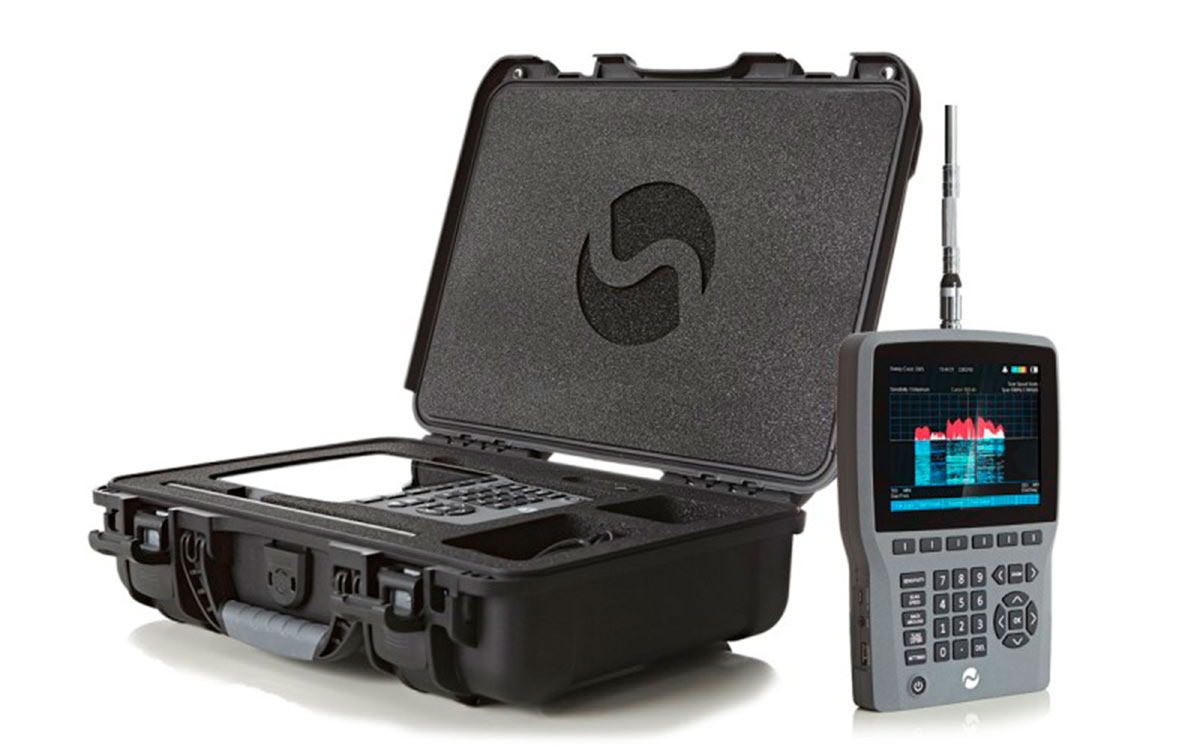

- 1 Detector HSAQ-1
- 1 Charger 220 v. with adapters for several countries
- 2 Antennas
- 1 Transport suitcase.
features
- TNC connector antenna
- Frequencies reading: 1 Mhz to 13,440 Mhz
- Graphic mode to graph detected signals / frequencies
- Audio demodulation through built-in speaker
- Sensitivity: 100 Mhz - 49 dbm
- Sensitivity: 200 Mhz - 48 dbm
- Sensitivity: 500 Mhz - 47 dbm
- Sensitivity: 1 Ghz - 44 dbm
- Sensitivity: 2 Ghz - 50 dbm
- Sensitivity: 5 Ghz - 42 dbm
- Sensitivity: 10 Ghz - 30 dbm
- Sensitivity: 14 Ghz - 2 dBm
- Demodulation Sens. For 50mW Audio -30dBm (measured at 500MHz 50% AM 1kHz)
- Audio Frequency Response 400Hz - 5kHz /- 2dB
- TFT Color 6High Contrast Graphic Display
- Internal battery 3.7V 1500 mAH Li-Ion rechargeable
- Battery charged full duration 8 hours
- Full charge time of the battery 4 hours
- Working temperature -15 - 50 degrees C - with humidity <90%
- Dimensions 223 mm x 158 mm x 45 m
- Weight 1300 gr.
- Signal Processing and Control RISC Based Microcontroller
- Gray housing color
