CON1654 Short PL-259 Male Crimp Connector

CON-1654. Short format MALE PL connector to crimp with polytetrafluoroethylene (PTFE), popularly known as Teflon. It is ideal for RG-213 cables. This is a high quality connector ideal for soldering without any problem. Short format MALE PL connector. more Manufacturer: mirmidon Reference CON1654

available
5,28 incl. VAT
4,36€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

CON-1654

CON-1654. Short format MALE PL connector to crimp with polytetrafluoroethylene (PTFE), popularly known as Teflon. It is ideal for RG-213 cables. This is a high quality connector ideal for soldering without any problem. With gold brass bath and TEFLON insulator for radio communication. It is a VERY HIGH QUALITY connector. The gold-plated brass coating on the conductive parts guarantees better transmission and use of the signal that circulates through the connector. Gold-plated brass, in addition to being one of the best conductors in the world, prevents contact oxidation as occurs over time in conventional connectors.

Reject plastic PL, at Digital Madness, we give you more for less!

Ideal for use in RG-213 type cable

CON-1654. Conector PL MACHO formato corto para crimpar con politetrafluoroetileno (PTFE), conocido popularmente como Teflón

kit content
  • Connector CON-1654

CON1654 Conector PL-259 Macho de Crimpar corto

CON1654 Conector PL-259 Macho de Crimpar corto

Characteristic

  • Gold PL MALE Teflon connector
  • Working voltage 500 VRMS
  • Body material Brass Nickel
  • Material central pins Brass Gold
  • Frequency range 0 - 1 Ghz
  • Withstand voltage 2000v rms
  • Insulating material polytetrafluoroethylene (PTFE)
  • golden conductor
  • Compatible with RG-213 type cable
  • RG-213 fat cable

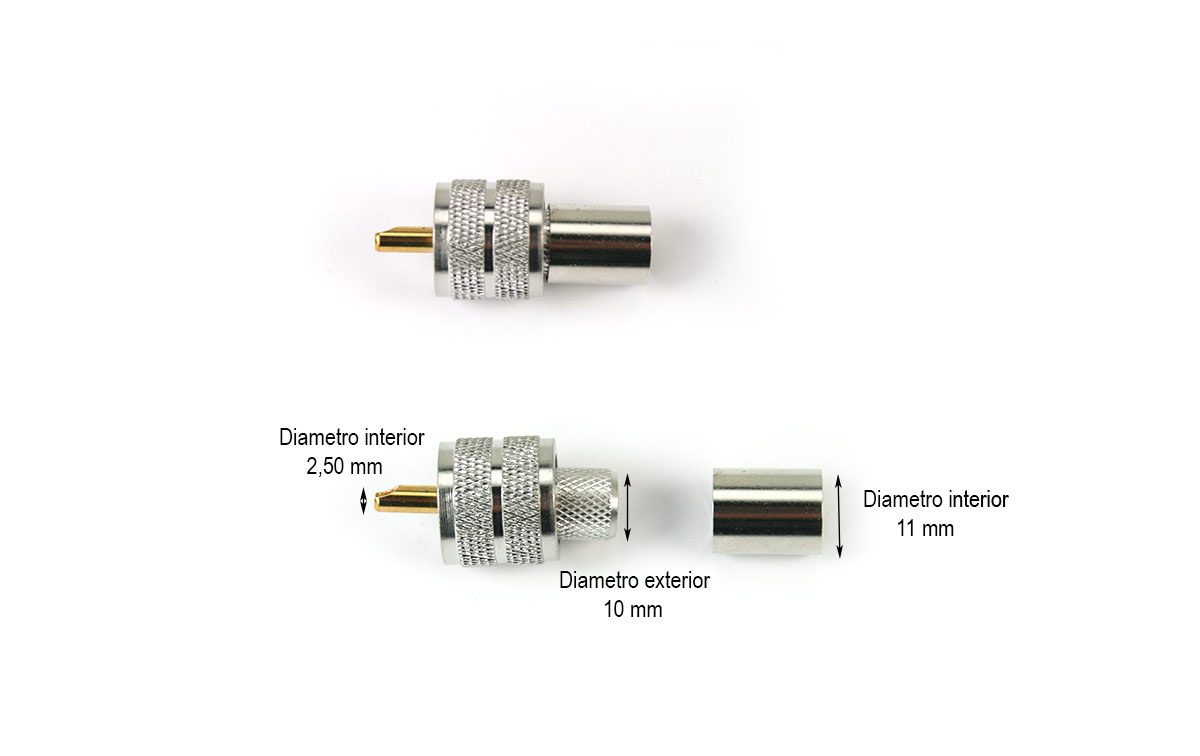

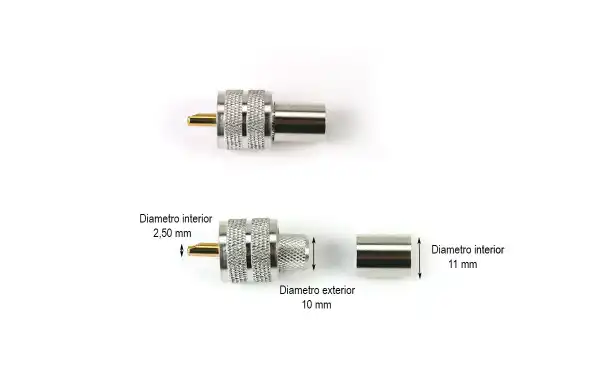

  • Internal live diameter 2.5 mm x crimping bushing diameter 11 mm
  • For radio communication antennas, meters, transmitters...
