Reference NAIR15FEM | SSB

NAIR15FEM N Female connector for EcoFlex15 SSB cable

The "NAIR-15-FEM" connector is an N female connector designed for use with coaxial cables, in this case, specifically for the EcoFlex15 SSB cable with PTFE (polytetrafluoroethylene) insulation. Additionally, this N female connector is equip

Make the first review

17,36 VAT included 14,35€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

We know that sometimes welding a connector is difficult or you do not have the necessary tools to do it. For this reason, we put at your disposal our technical service that will be responsible for welding the connector you need.

Remember that this price only includes the assembly of this connector . If you need to solder 2 connectors, you must select the mounting service in the other connector as well.

Why are there connector mounting services with different prices?

We have evaluated the difficulty and the time that our technicians dedicate to solder / assemble the connectors and adjusted the maximum cost of this service.

This service is available for the following countries: España - Peninsula y Baleares, Canarias.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Delivery price from 6,50€

Description SSB NAIR15FEM

The "NAIR-15-FEM" connector is an N female connector designed for use with coaxial cables, in this case, specifically for the EcoFlex15 SSB cable with PTFE (polytetrafluoroethylene) insulation. Additionally, this N female connector is equipped with a gold pin.

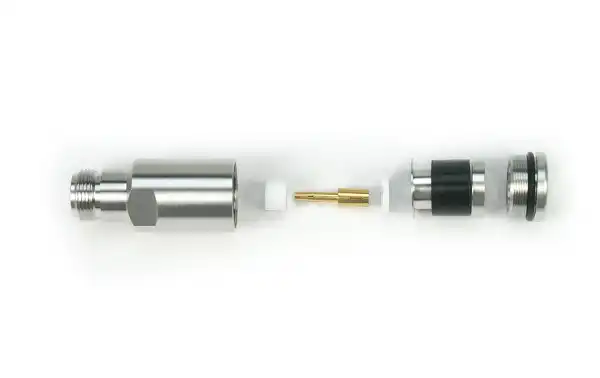

The N connector is a type of radio frequency connector used in high frequency signal transmission and communication applications. The N connector is commonly used in antennas, radio equipment and other devices that require high quality, secure connections to prevent signal loss.

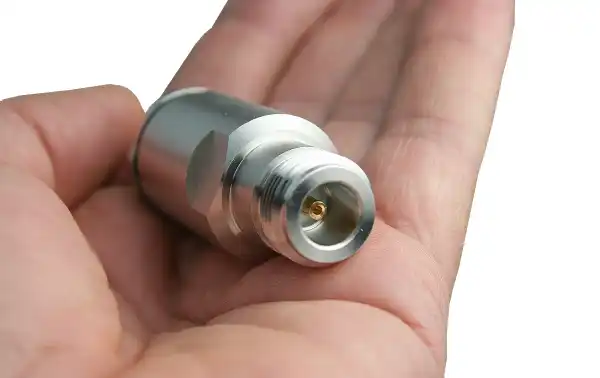

PTFE insulation is known for its excellent dielectric capacity and high temperature resistance, making it suitable for RF applications.

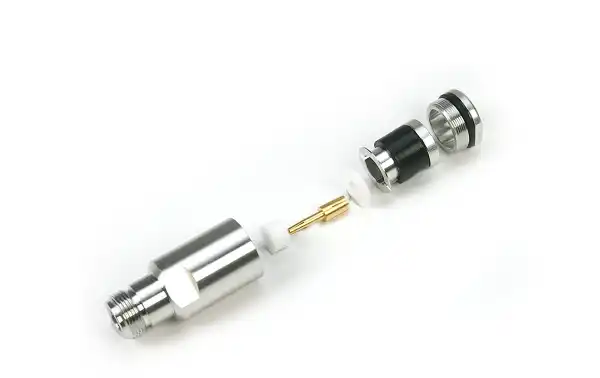

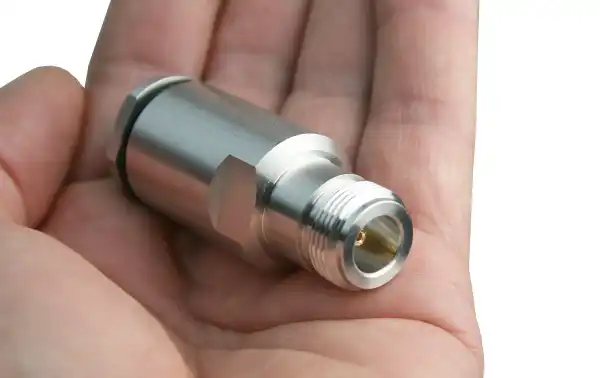

The gold pin on the connector helps improve conductivity and reduce corrosion, which is important for maintaining a high quality signal and low signal loss throughout the cable and connection.

The "NAIR-15-FEM" connector is a component used in radio frequency applications that require high quality and reliable connections, such as in antenna systems and communication equipment. It is designed to work with specific cables and offers good dielectric and conductive properties to ensure efficient signal transmission.

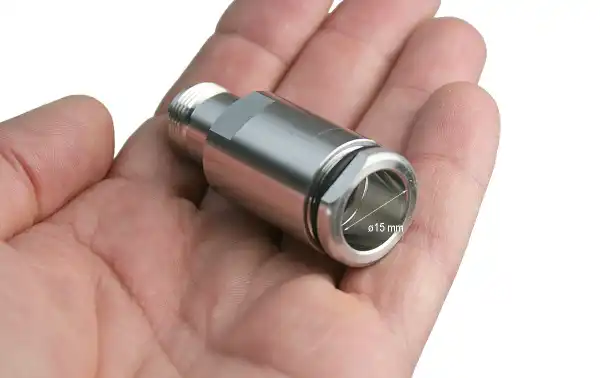

For cables maximum diameter 15 mm
El conector

Kit content
  • 1 NAIR-15-FEM Connector

El pin dorado en el conector ayuda a mejorar la conductividad y a reducir la corrosión, lo que es importante para mantener una señal de alta calidad y una baja pérdida de señal a lo largo del cable y la conexión.

El aislamiento de PTFE es conocido por su excelente capacidad dieléctrica y resistencia a altas temperaturas, lo que lo hace adecuado para aplicaciones de radiofrecuencia.

Characteristics

  • Brand: SSB
  • Model: NAIR-15-FEM
  • Insulation: PTFE
  • Cable diameter 15 mm maximum
  • 1 Pin hole for live cable maximum 4.30 mm
  • Central pin: Golden Brass
  • Connector body: Brass
  • Frequencies 0-10 GHz
  • Impedance 50 ohms
  • Soldering format
  • Fixed wrench size: 19 mm
