CON3919 N Male 90 Degree Elbow Crimp Connector LMR400 PTFE
The CON3919 is a 90-degree angled N male connector designed specifically for LMR-400 cables and featuring a crimping system. This connector is made from high quality materials, including PTFE (polytetrafluoroethylene) insulation, popularly known as T
Make the first reviewDescription MIRMIDON CON3919
CON-3919

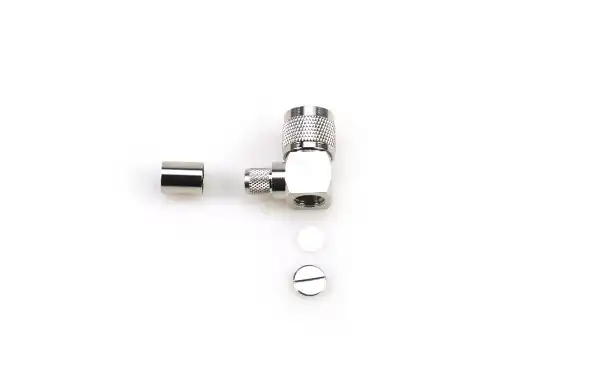

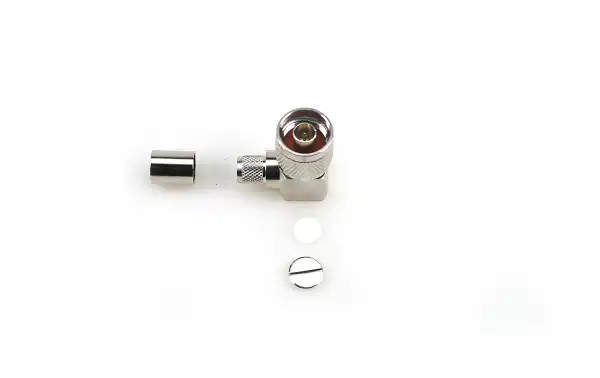

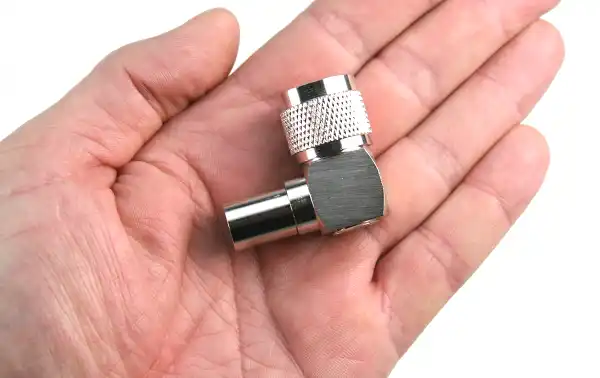

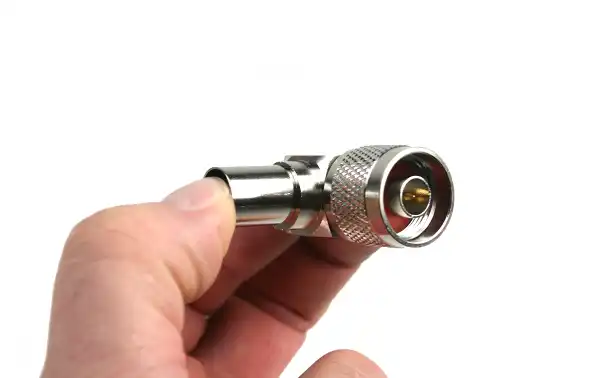

The CON3919 is a 90-degree angled N male connector designed specifically for LMR-400 cables and featuring a crimping system. This connector is made of high quality materials including PTFE (polytetrafluoroethylene) insulator , popularly known as Teflon , which gives it excellent thermal stability and dielectric properties, ideal for radio frequency (RF) applications.
Valid for cable with an approximate diameter of 10.3 mm
Belden 9913: Offers low loss and is suitable for high frequencies, similar to LMR400, with excellent performance for antenna and RF transmission applications.
Times Microwave LMR400UF: Flexible version of the LMR400, ideal for installations requiring greater flexibility without sacrificing performance.
RG213: Although somewhat lossier than LMR400, it is a robust option for short and medium distance RF and antenna applications.
Commscope CNT-400: Comparable to LMR400 in loss and power handling capabilities, suitable for VHF/UHF and microwave frequency applications.
AIR802 CA400: Designed with low loss characteristics similar to LMR400 and suitable for long distance RF applications, especially in Wi-Fi and antenna systems.
RF Industries RFC400: Low-cost alternative to LMR400, with similar low loss properties and flexibility in RF applications.
- 1 Adapter

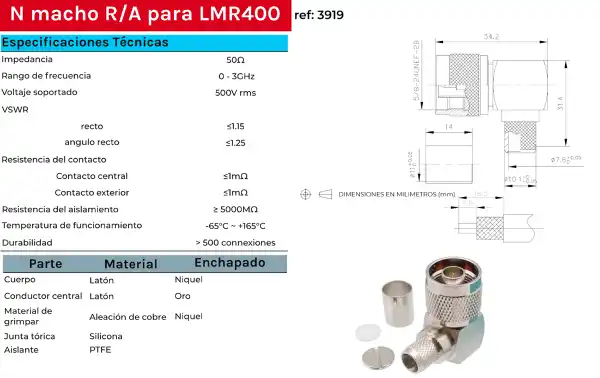

Characteristics
- Connector Type: N Male 90 Degree Angle.
- Cable Compatibility: Designed for LMR400 cable.
- Impedance: 50 O.
- Frequency range: 0 - 3 GHz.
- Voltage supported: 500 V rms.
- VSWR (straight): = 1.15.
- VSWR (right angle): = 1.25.
- Contact resistance (central): = 1 mO.
- Contact resistance (outside): = 1 mO.
- Insulation resistance: = 5000 MO.
- Operating temperature range: -65°C to +165°C.
- Mechanical durability: > 500 connections.
- Body Material: Brass.
- Body plating: Nickel.
- Center Conductor Material: Brass.
- Center Conductor Plating: Gold.
- Crimping material: Copper alloy.
- Crimping material plating: Nickel.
- O-ring material: Silicone.
- Insulator: PTFE (polytetrafluoroethylene), known as Teflon.
- Outer diameter of connecting section: 11±0.05mm.
- Outer diameter at thread: 10.1 ± 0.05 mm.
- Total length dimension: 34.2 mm.
- Height dimension: 31.4 mm.
- Coupling thread: 5/8 - 24 UNEF - 2B.
