CON4277 DIN 7/16 Female to N Female Adapter

CON-4277

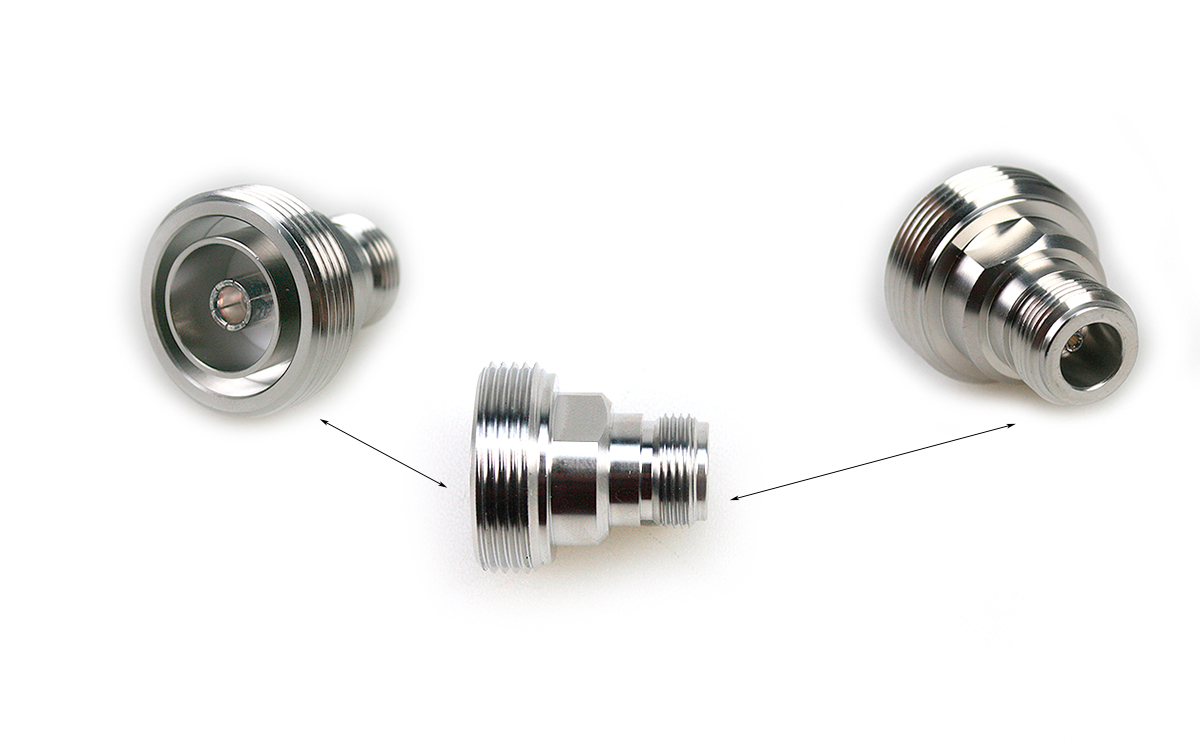

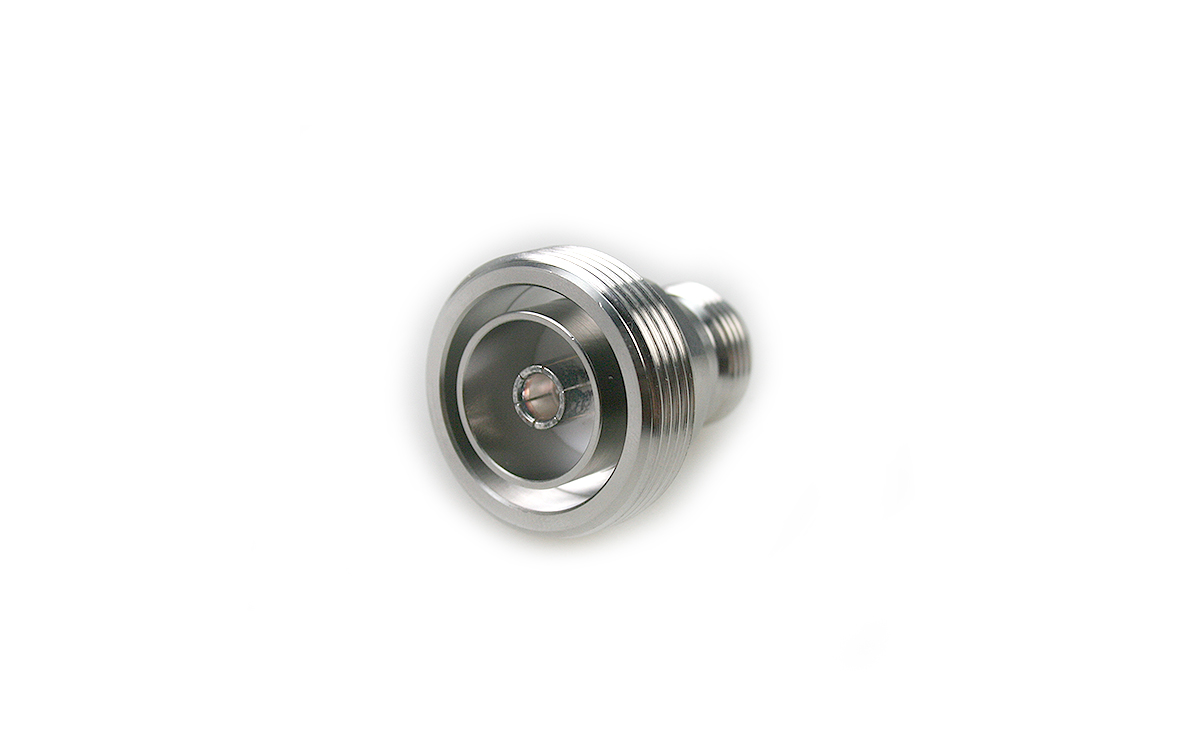

A DIN 7/16 female to N female adapter is a device that allows the connection between equipment or cables that use different types of coaxial connectors, specifically the DIN 7/16 connector and the N-type connector. It is suitable for high power environments and ensures reliable signal transmission between network components and communication systems.Connector Compatibility: Allows conversion between a DIN 7/16 female connector and a N-type female connector, facilitating the interconnection between devices with different connection standards.

High Frequency Applications: Designed for RF (radio frequency) applications, ideal for systems requiring good signal transfer at high frequencies, typically in the GHz range.

High Power: This adapter is suitable for high power applications, especially useful in telecommunications and radio communications where the 7/16 DIN connector is commonly used.

Low Return Loss: This type of adapter is designed to maintain low return loss, ensuring minimal signal attenuation in the connection.

Robust Construction: Generally made of materials such as nickel-plated brass or stainless steel, which gives it corrosion resistance and durability in demanding environments.

PTFE Insulation: Most of these adapters use PTFE (polytetrafluoroethylene) as the insulating material, offering high dielectric performance and thermal stability.

Use in Telecommunications and Mobile Networks: Widely used in telecommunications base stations, antennas, repeaters and other network infrastructure equipment that require reliable and low intermodulation connections.

Quality Standards: These adapters typically meet international standards, such as IEC 61169-4 for DIN 7/16 connectors and MIL-STD for N connectors, ensuring compatibility and connection quality.

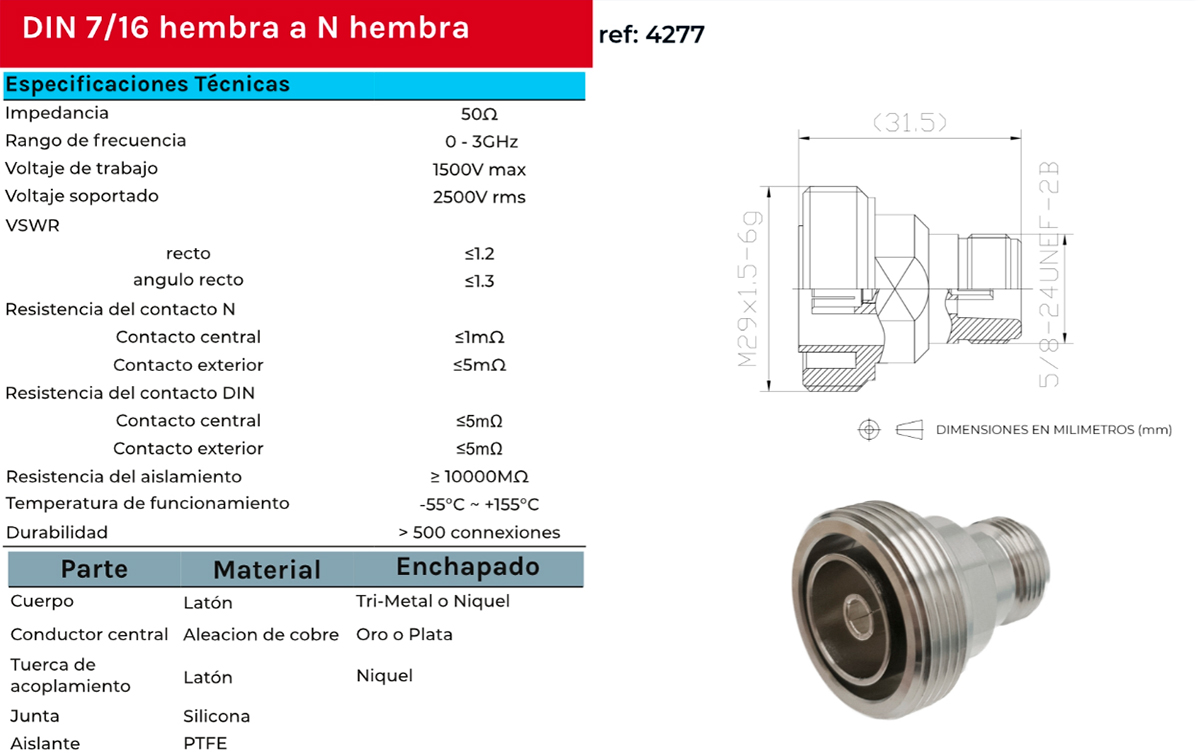

Characteristics

• Connector type: L29 DIN 7/16 female.
• N FEMALE connector.
• Compatibility: For 1/2" coaxial cable.
• Maximum frequency: Up to 3 GHz.
• Return loss: =30 dB (minimum value).
• Impedance: 50 ohms.
• Contact resistance of the inner conductor: = 0.4 mO.
• Contact resistance of external conductor: = 1.0 mO.
• Insulation resistance: = 5000 MO.
• Maximum working voltage: 1500 V RMS.
• Inner conductor material: Brass with silver finish.
• Outer conductor material: Zinc alloy with nickel plated finish.
• Encapsulation: PTFE insulation.
• Outer diameter: 29 mm
• Total length: Approx 31.5mm.
• Main thread: M29 x 1.5 - 6g and 5/8 - 24 UNEF - 2B
• Temperature range: -55°C to +155°C.
• Test standard: IEC 61169-4.
• Connector type: DIN 7/16 L29 thread.
• Vibration resistance: Up to 3 Grms (according to IEC 61169-4).
• Stability against temperature variations: Low change in frequency.
• Mechanical durability: More than 500 coupling cycles.
• Shielding: High shielding capacity to prevent interference.
• Approximate weight: Around 100 grams.
• Compliance: Complies with international connectivity standards.
• Typical applications: Mobile communications and base stations.
• Brand: Mirmidon
