CON4274 DIN 7/16 Male Connector 90 Degrees 1/2 Flexible Corrugated Cable
The CON4274 is a 90-degree angled 7/16" DIN male connector (clamp), specifically designed for 1/2" flexible corrugated coaxial cables. This type of connector is primarily used in telecommunication installations and RF applications due to it
Make the first review16,00€ VAT included 13,22€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description MIRMIDON CON4274
CON4270

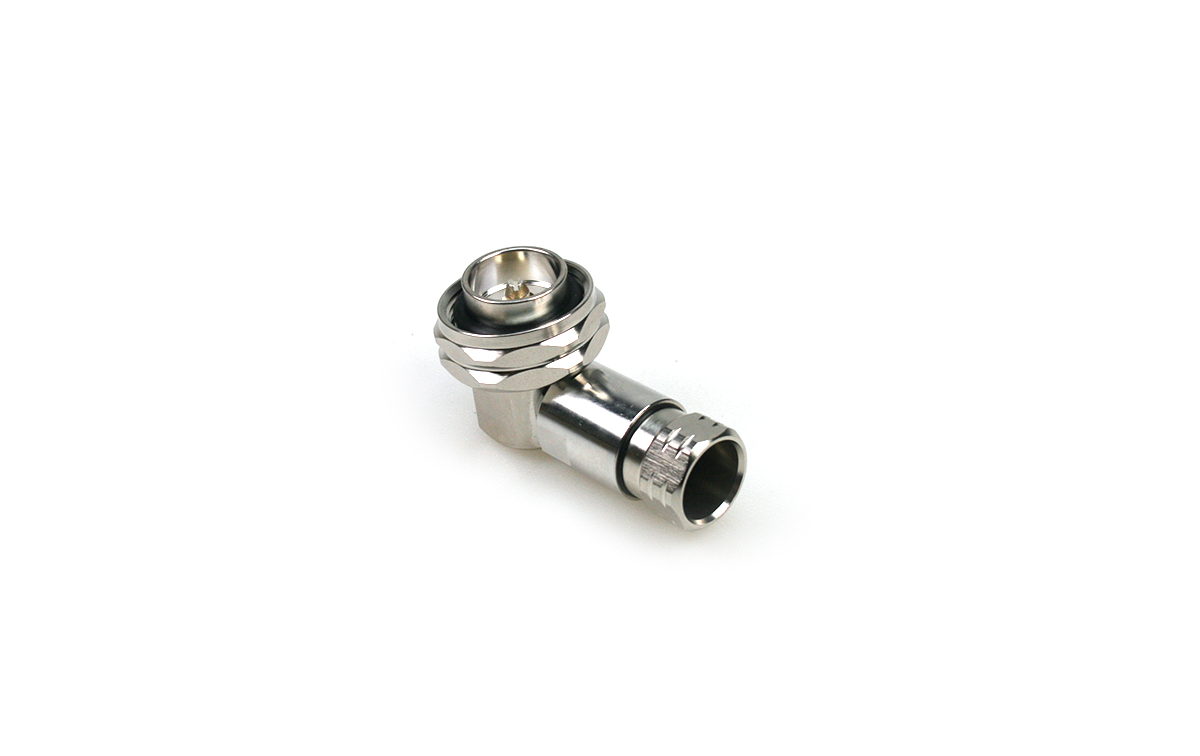

The CON4274 is a 90-degree angled 7/16 DIN male connector (clamp), specifically designed for 1/2 inch flexible corrugated coaxial cables. This type of connector is primarily used in telecommunication installations and RF applications due to its following features:
90 Degree Design: Facilitates connection in tight spaces or installations where a straight connector is not feasible.
Clamp type: Ensures a robust and reliable connection, optimized for flexible type coaxial cables.
Compatibility: Ideal for 1/2 inch flexible corrugated cables, very common in antenna and base station applications.
This connector is especially useful in high power, low loss applications such as mobile telecommunications networks, where a secure, high quality connection is required to maintain signal integrity in harsh environments.
For the DIN 7/16 Male Clamp connector for 1/2" corrugated coaxial cable, some compatible cable references are: Valid for cable with an approximate diameter of 13.8 to 15 mm
RFS Cellflex LCF12-50 : Low loss corrugated coaxial cable.
CommScope LDF4-50A - Known for its durability and high frequency performance.
Andrews CNT-500: Flexible, rugged cable ideal for RF applications.
HUBER+SUHNER Sucotest 1/2": Designed for high stability and low loss at high frequencies.
These cables are ideal for demanding telecommunication and RF networks.
- 1 Connector
DIN 7/16 Male
On the DIN 7/16 Male Clamp connector, the large threaded end is designed to connect to telecommunication equipment or antennas that have a DIN 7/16 female input . This connection is robust and intended for high power applications, offering excellent weather and vibration resistance.

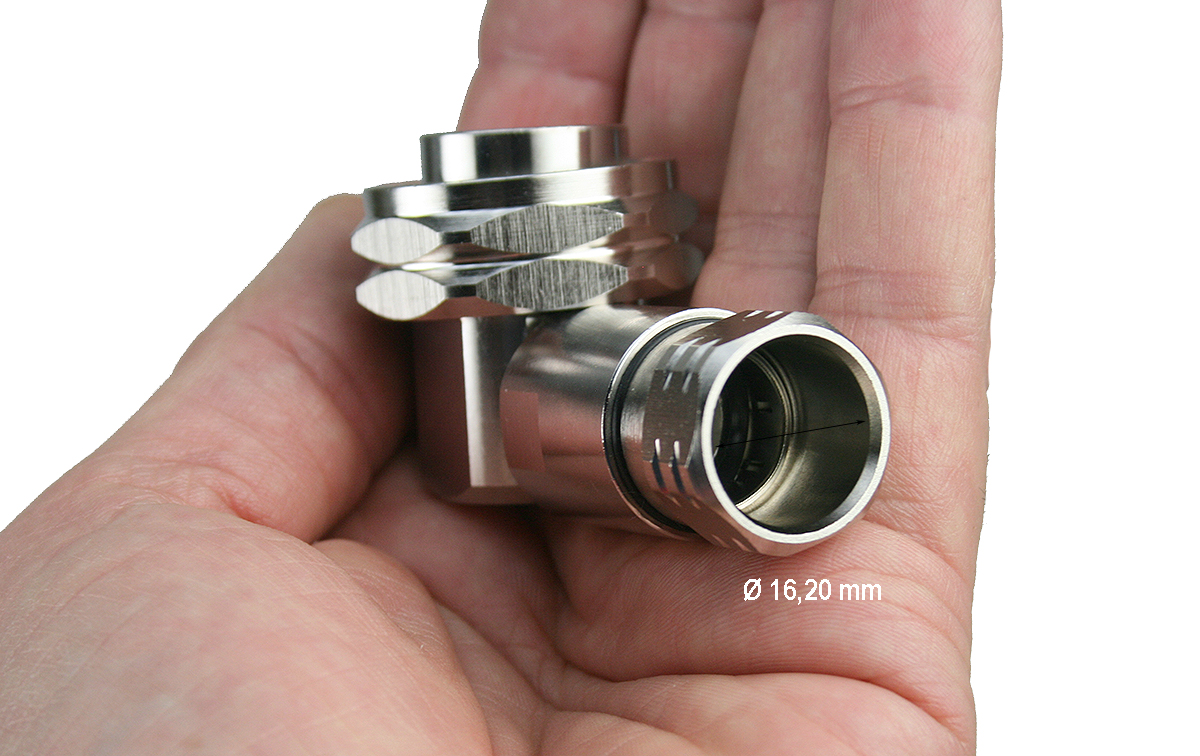

- Clamp Side (Non-Threaded): Connects to 1/2" corrugated cable.
- DIN 7/16 thread side: Connects to the female input on the equipment or antenna.
Characteristics
- Connector Type: L29 DIN 7/16 Male.
- Compatibility: For 1/2" coaxial cable.
- Maximum frequency: Up to 6 GHz.
- Valid for cable diameter approximately 13.8 to 15 mm
- Angled format
- Return loss: =30 dB (minimum value).
- Impedance: 50 ohms.
- Contact resistance of the inner conductor: = 0.4 mO.
- Contact resistance of external conductor: = 1.0 mO.
- Insulation resistance: = 5000 MO.
- Maximum working voltage: 2700 V RMS.
- Inner conductor material: Brass with silver finish.
- Outer conductor material: Zinc alloy with nickel plated finish.
- Encapsulation: PTFE insulation.
- External diameter: Approx. 29mm.
- Total length: Approx 52mm.
- Temperature range: -55°C to +155°C.
- Test standard: IEC 61169-4.
- Connector type: DIN 7/16 L29 thread.
- Vibration resistance: Up to 3 Grms (according to IEC 61169-4).
- Stability against temperature variations: Low change in frequency.
- Mechanical durability: More than 500 coupling cycles.
- Shielding: High shielding capacity to prevent interference.
- Approximate weight: Around 100 grams.
- Compliance: Complies with international connectivity standards.
- Typical applications: Mobile communications and base stations.
- Brand: Mirmidon
