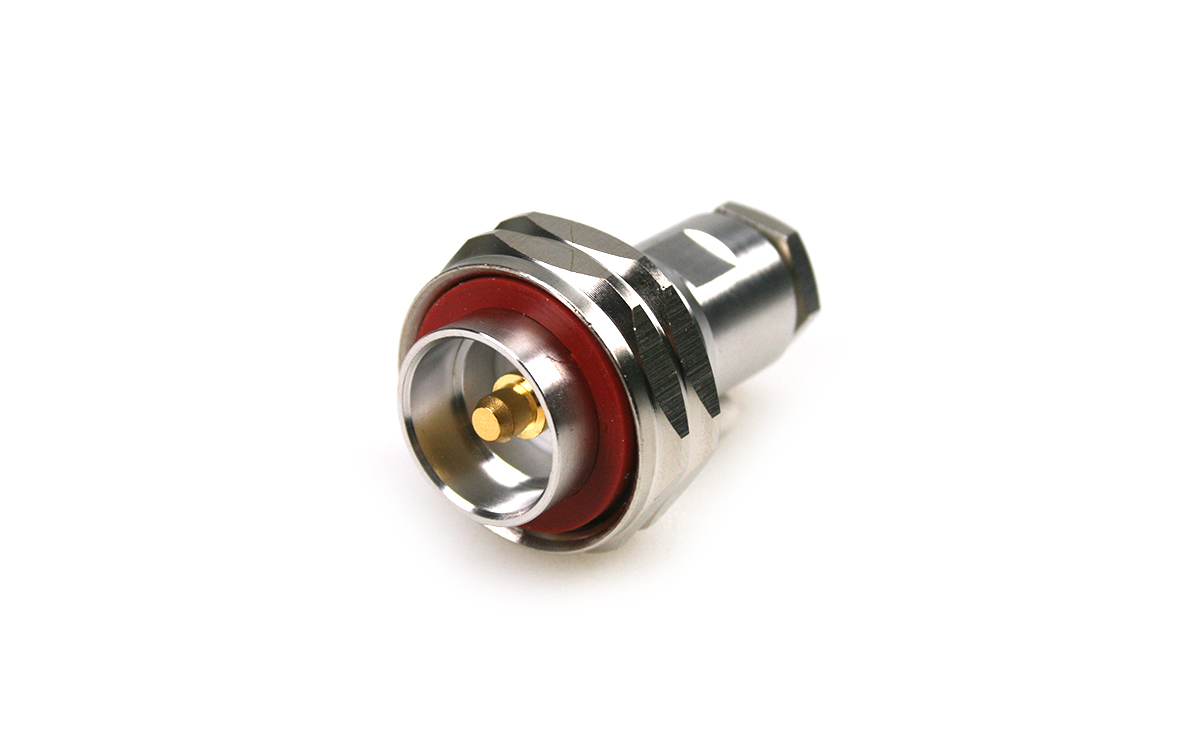

CON4272 DIN 7/16 Male Connector for LMR400 Cable
The CON4272 is a 7/16 DIN Male connector designed specifically for LMR400 cable. This connector is ideal for high frequency and power applications, offering low loss and excellent performance under demanding conditions. Being compatible with LMR400,
Make the first review12,58€ VAT included 10,40€ excl. VAT
Description MIRMIDON CON4272
CON4272
The CON4272 is a 7/16 DIN Male connector designed specifically for LMR400 cable. This connector is ideal for high frequency and power applications, offering low loss and excellent performance under demanding conditions. Being compatible with LMR400, it is suitable for communications in RF and telecommunication systems, where a durable and high quality connection is required. Valid for cable diameter of approximately 10.3 mm.
Belden 9913: Offers low loss and is suitable for high frequencies, similar to LMR400, with excellent performance for antenna and RF transmission applications.
Times Microwave LMR400UF: Flexible version of the LMR400, ideal for installations requiring greater flexibility without sacrificing performance.
RG213: Although somewhat lossier than LMR400, it is a robust option for short and medium distance RF and antenna applications.
Commscope CNT-400: Comparable to LMR400 in loss and power handling capabilities, suitable for VHF/UHF and microwave frequency applications.
AIR802 CA400: Designed with low loss characteristics similar to LMR400 and suitable for long distance RF applications, especially in Wi-Fi and antenna systems.
RF Industries RFC400: Low-cost alternative to LMR400, with similar low loss properties and flexibility in RF applications.
- 1 Connector

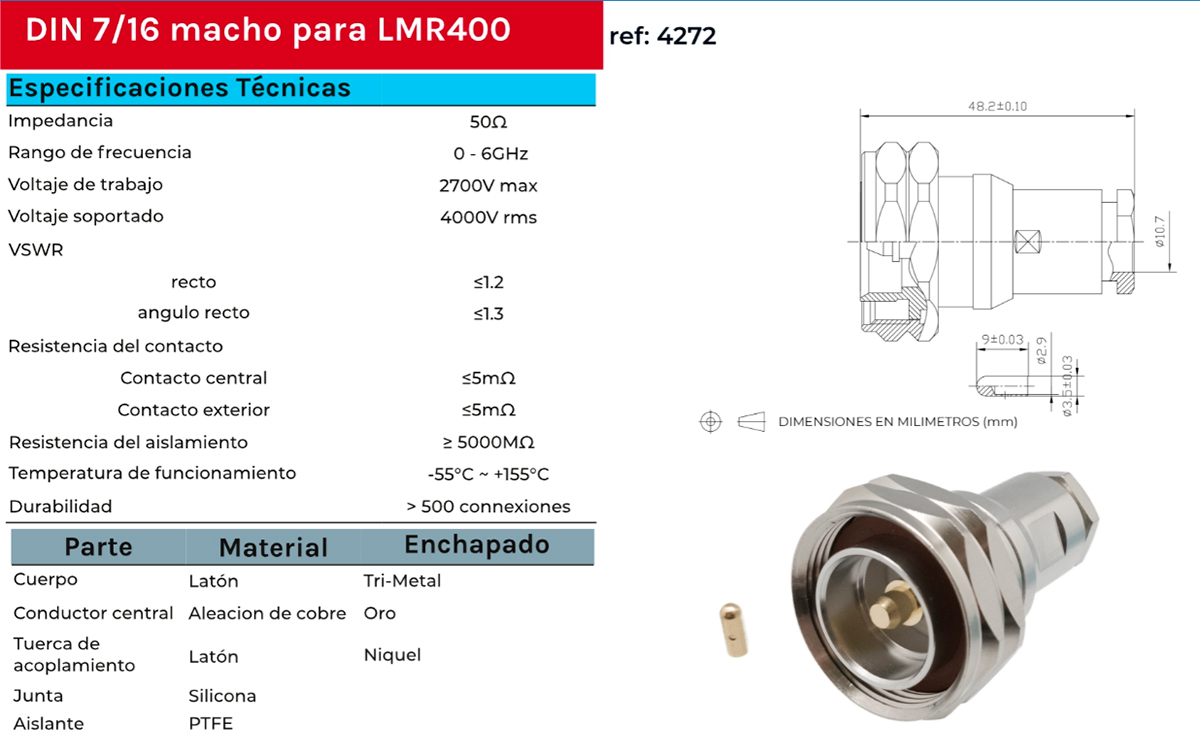

Characteristics
- Type: DIN 7/16 Male.
- Compatibility: LMR400 Cable.

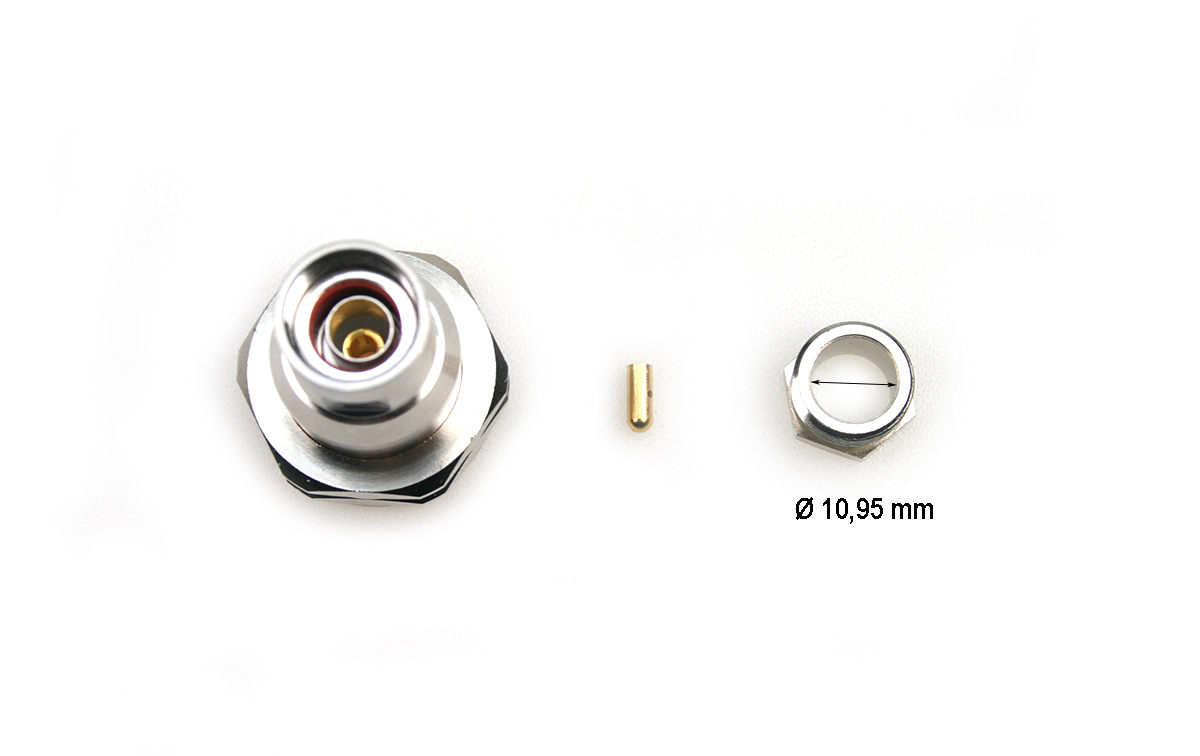

- Valid for cable with an approximate diameter of 10.3 mm
- Application: High frequency and power.
- Resistance: Excellent durability.
- Low Loss: Optimized for RF.
- Material: Metal, corrosion resistant.
- Performance: High quality transmission.
- Fastening: Secure fixing without welding.
- Use: Telecommunications and RF.
- Frequency: Supports high frequencies.
- Impedance: 50 ohms.
- Installation: Simple and reliable.
- Size: Robust design.
- Stability: Stable connection under difficult conditions.
- Protection: Weather resistant.
- Compatibility: With professional RF systems.
- Certification: Meets telecommunications standards.
- Expansion: Ideal for high capacity systems.
- Versatility: Useful in repeaters and antennas.
- Reliability: Low interference in transmission.
