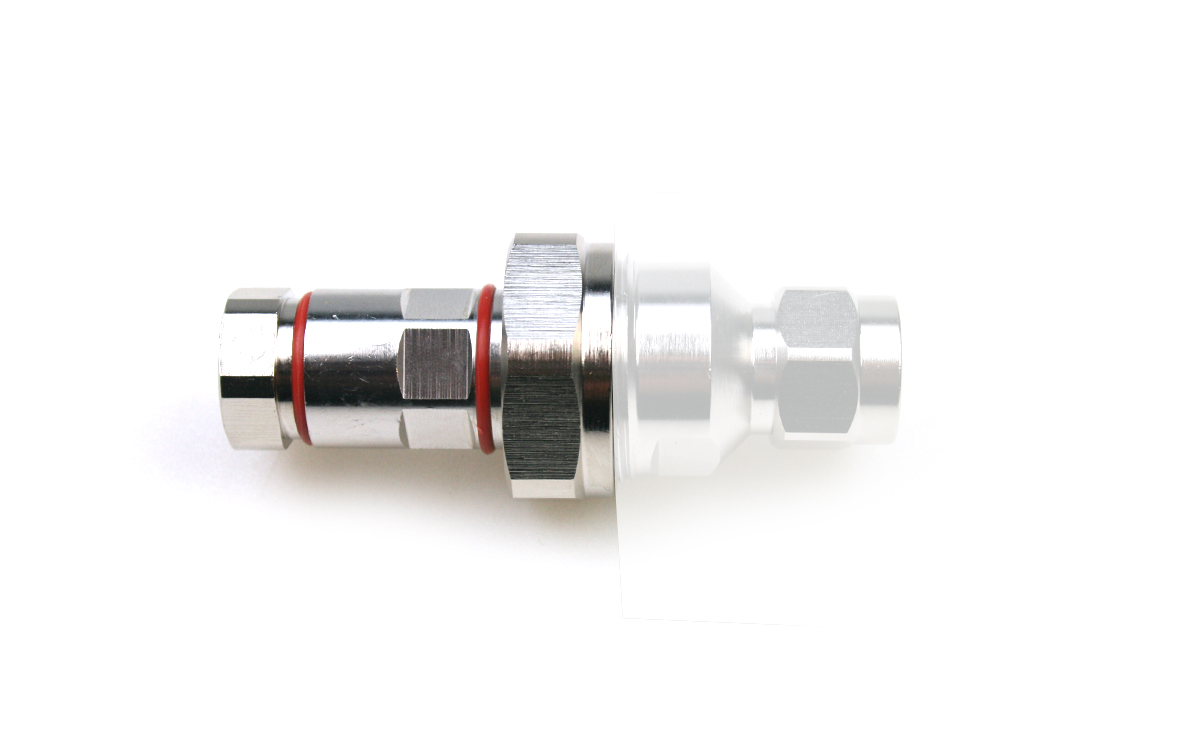

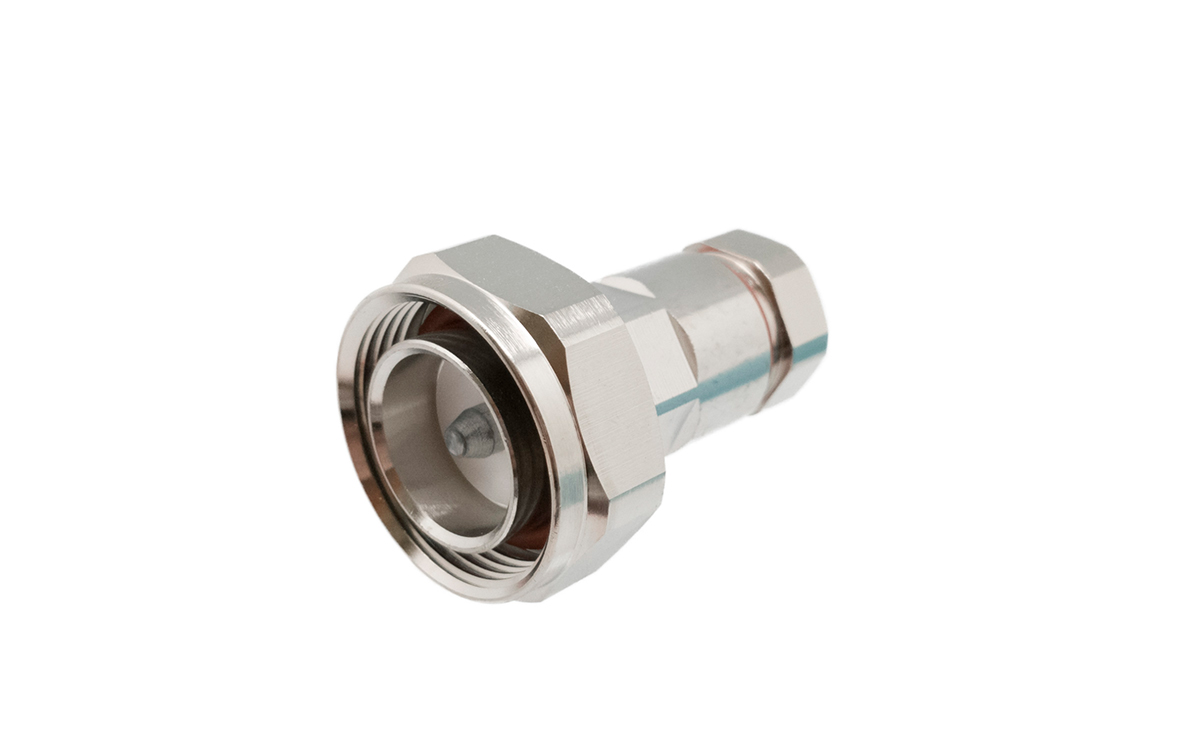

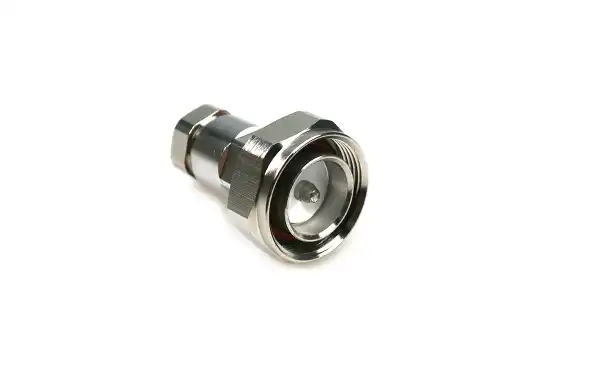

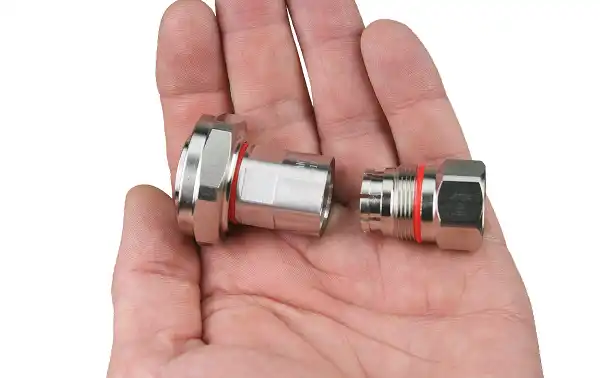

CON4270 DIN 7/16 Male Connector for 1/2 inch Corrugated Cable

CON4270

The 7/16 DIN Male Clamp Connector for 1/2" Coaxial Cable is a rugged and reliable option for RF connections in high power and frequency environments, commonly found in telecommunications and antenna systems. This type of connector provides a secure connection without the need for soldering, taking advantage of the clamp design to hold the 1/2" corrugated cable and minimize signal loss.

Connector type: DIN 7/16 male.
Fixing method: Clamp type (welding-free fit).
Cable compatibility: 1/2" corrugated.
Application: High power telecommunication systems.
Frequency: Ideal for RF applications.
Impedance: 50 ohms.
Durability: Excellent resistance to weather and corrosion.
Thread Size: Large and robust thread.
Installation: Quick, requires clamp tools.
Common use: In mobile phone base stations and broadcast antennas.

For the DIN 7/16 Male Clamp connector for 1/2" corrugated coaxial cable, some compatible cable references are: Valid for cable with an approximate diameter of 13.8 to 15 mm

RFS Cellflex LCF12-50 : Low loss corrugated coaxial cable.
CommScope LDF4-50A - Known for its durability and high frequency performance.
Andrews CNT-500: Flexible, rugged cable ideal for RF applications.
HUBER+SUHNER Sucotest 1/2": Designed for high stability and low loss at high frequencies.
These cables are ideal for demanding telecommunication and RF networks.

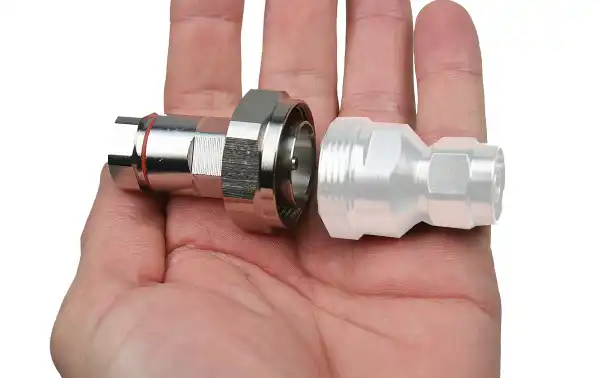

DIN 7/16 Male

On the DIN 7/16 Male Clamp connector, the large threaded end is designed to connect to telecommunication equipment or antennas that have a DIN 7/16 female input . This connection is robust and intended for high power applications, offering excellent weather and vibration resistance.

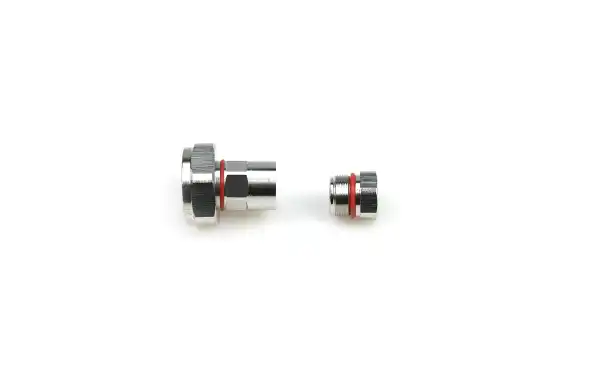

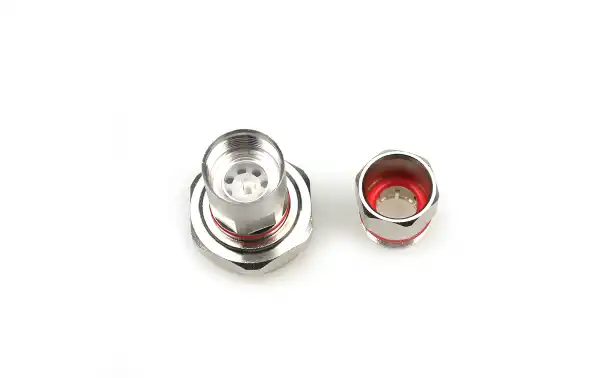

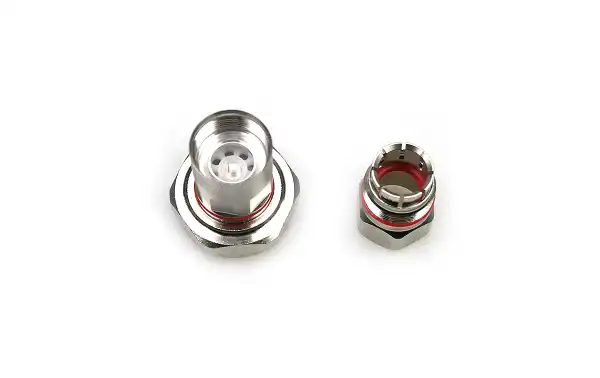

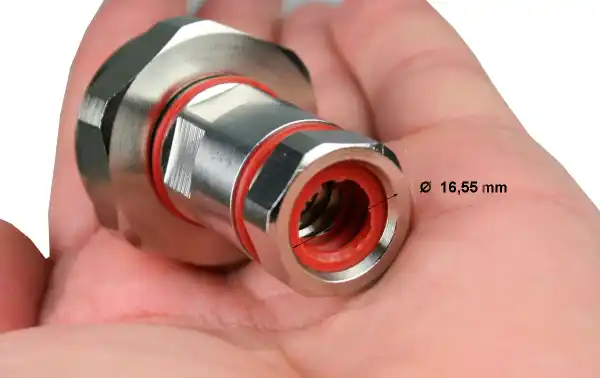

• Clamp Side (Non-Threaded): Connects to 1/2" corrugated cable.
• DIN 7/16 thread side: Connects to the female input on the equipment or antenna.

Characteristics

• Connector Type: L29 DIN 7/16 Male.
• Compatibility: For 1/2" coaxial cable.
• Maximum frequency: Up to 6 GHz.
• Valid for cable diameter approximately 13.8 to 15 mm
• Return loss: =30 dB (minimum value).
• Impedance: 50 ohms.
• Contact resistance of the inner conductor: = 0.4 mO.
• Contact resistance of external conductor: = 1.0 mO.
• Insulation resistance: = 5000 MO.
• Maximum working voltage: 2700 V RMS.
• Inner conductor material: Brass with silver finish.
• Outer conductor material: Zinc alloy with nickel plated finish.
• Encapsulation: PTFE insulation.

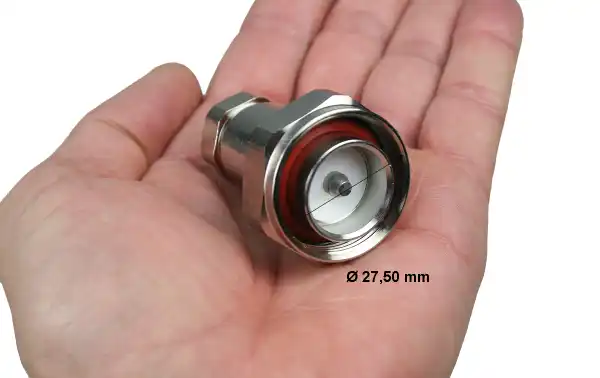

• External diameter: Approx. 29mm.
• Total length: Approx 52mm.
• Temperature range: -55°C to +155°C.
• Test standard: IEC 61169-4.
• Connector type: DIN 7/16 L29 thread.
• Vibration resistance: Up to 3 Grms (according to IEC 61169-4).
• Stability against temperature variations: Low change in frequency.
• Mechanical durability: More than 500 coupling cycles.
• Shielding: High shielding capacity to prevent interference.
• Approximate weight: Around 100 grams.
• Compliance: Complies with international connectivity standards.
• Typical applications: Mobile communications and base stations.
• Brand: Mirmidon
