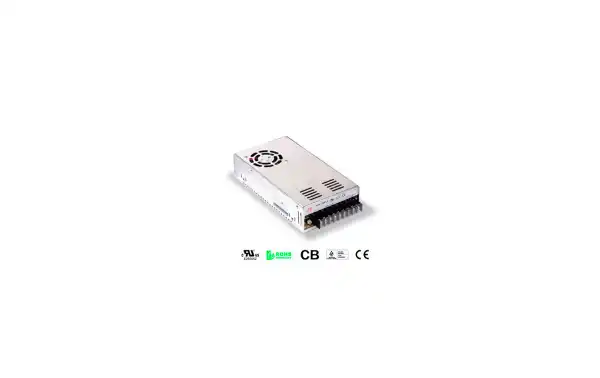

ASIPFC-32012 LAFAYETTE Industrial Switched Power Supply 320 W | 25 Amps...

ASIPFC 32012 LAFAYETTE Industrial Switched Power Supply 320 W, voltage 12 volts. 25A amps

Input voltage: 220 volts

Entrada voltage:220 voltios
Voltage output: 12 volts

PFC Protection

Proteccion PFC

Features

UNIVERSAL input from 88 to 264 VAC PF> 0.98 @ 115VAC PF> 095 @ 230VAC

EMI complies with EN55022 (CISPR22) Class B
• Low Power consumption
Approvals: UL / CUL / TUV / CB / CE
• Protections: Over load, over voltage, over temperature, short circuit.
  100% full high temperature load
  DC output: 12V 0 ~ 25A
  Voltage range input: 88 ~ 264VAC 120 ~ 370VDC
  Frequency input: 47 ~ 63Hz
  Current surge: cold start, 25A / 115VAC, 50A / 230VAC
  Output range adjustment: 10% nominal output voltage
  Regulating line: <0.5%
  Output over load protections: 105% ~ 135% mode, self-recovery
  Output over voltage protections: Voltage of 115% ~ 145% of nominal output
  Short output circuit protections: mode, auto recovery
  Rise, Retention time: 50 ms, 20 ms at full load (typical)
  Isolation:
  I / PO / P 3KVCA,
  E / P FG 1.5KVCA,
  O / P FG 0.5KVCA
  Operating Temperature range:
  0 ° C to 40 ° C to 100%, 10 ° C to 80%,
  60 ° C @ 60%
  Safety standards: UL60950 1
  EMC standards: EN55022 class B, EN61000 3 2, 3
  EN61000 4 2, 3,4,5,6,8,11, ENV50204
  Cooling method: forced air cooling by the built-in DC fan cooling fan n ON OFF control / auto
  Weight: 1.10 kg
  EN61000 4 2, 3,4,5,6,8,11, ENV50204
  Enfriamiento método: refrigeración por aire forzado por el ventilador incorporado DC
  ventilador de refrigeración ON OFF de control / auto
  Peso: 1,10 kg
