LAFAYETTE ASI4024 Industrial Power Supply 40W Switched | 1.8 Amps | output...

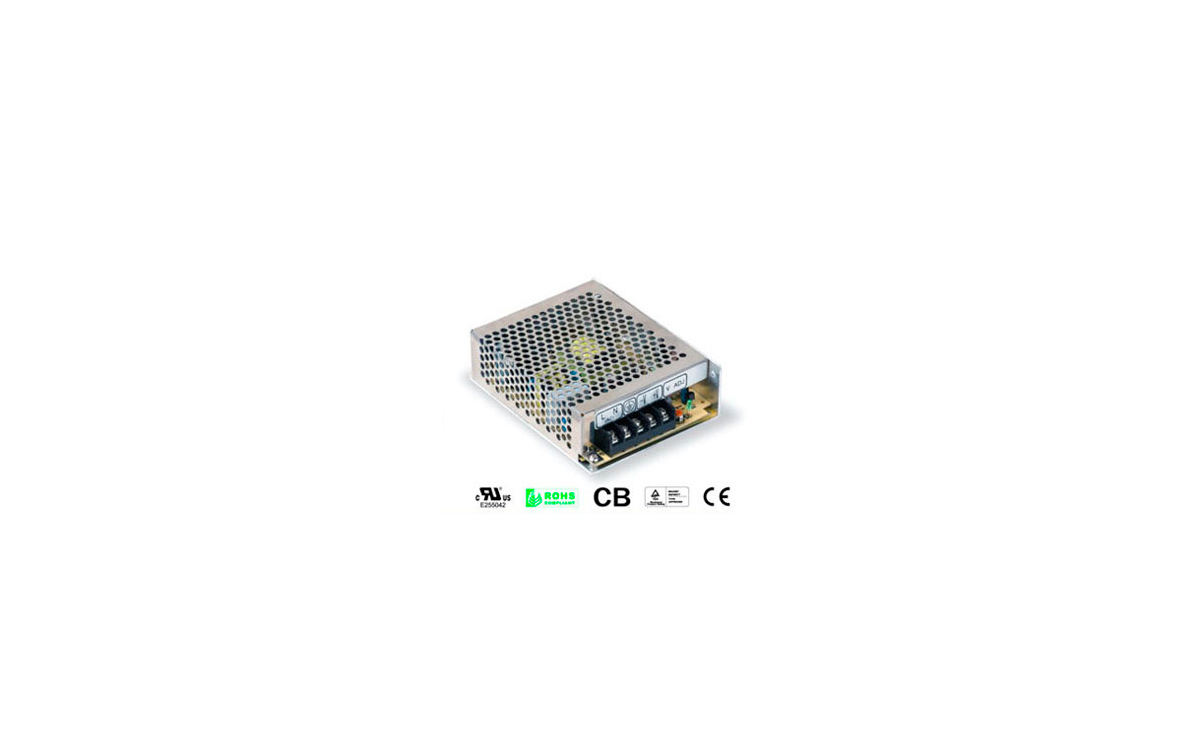

ASI 4024

ASI 4024

ASI4024 LAFAYETTE Industrial Switched Power Supply 40W, voltage 24 volts. amps 1.8 A

ASI4024 LAFAYETTE Fuente Alimentación Conmutada Industrial 40W,voltage 24 volts. amperios 1,8 A

Input voltage: 220 volts

Output amps: 1.8 A
Salida amperios: 1,8 A

Voltage output: 24 volts

Salida voltage: 24 voltios







Caracteristicas

ASI 4024

40W Power supply
• ASI 4024
  Universal input from 85 to 264 VAC
  EMI complies with EN55022 (CISPR22) Class B
  Comsumption power
  Approvals: UL / CUL / TUV / CB / CE
  Protections: Over load, over voltage, short circuit
  100% full high load temperature
  DC output: 24V 0 ~ 1.8A
  Input voltage range: 84 ~ 264VAC 120 ~ 370VDC
  Input frequency: 47 ~ 63Hz
  Start current: cold start, 15A / 115VAC, 25A / 230VAC
  Range output setting: Rated output voltage 10% Line regulation: <0.5%
  Output on load protections: 105% ~ 150% hypo mode, auto recovery
  Output on voltage protections: Voltage of 115 % ~ 135% nominal output
  Definitive output circuit protections: Hypo mode, auto recovery
  Rise, support time: 50ms, 20ms at full load (typical)
  Isolation of Hello pot: I / PO / P 3KVCA ,
  E / P FG 1.5KVCA, O / P FG 0.5KVCA
  Operating temperature: 0 ° C to 50 ° C to 100%, 10 ° C to 80%, 60 ° C @ 60%
  safety: UL60950 1, TUV EN60950 1
  EMC Standards: EN55022 class B, EN61000 3 2, 3
  EN61000 4 2, 3,4,5,6,8,11, ENV50204
  Cooling method: free convection air cooling
  Weight: 0.44 kg
  EN61000 4 2, 3,4,5,6,8,11, ENV50204
  Método de enfriamiento: refrigeración por aire de convección libre
  Peso: 0,44 kg
