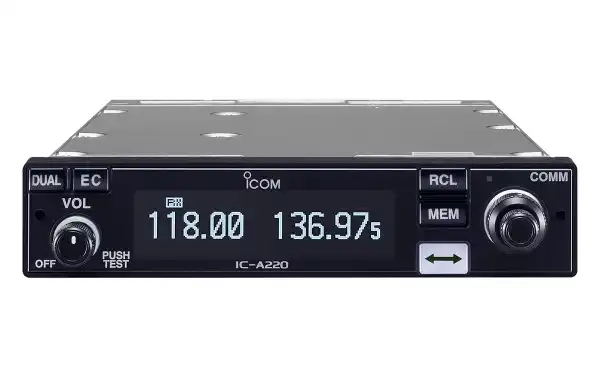

ICOM IC-A220-TSO Panel Mount VHF Air Band Transceiver 118-136 Mhz
The ICOM IC-A220 is a panel-mounted VHF (Airband) aviation transceiver. It features a high-contrast OLED display, ultra-slim design, and intelligent features that facilitate cockpit operation. The ICOM IC-A220 TSO
Make the first review2.539,79€ VAT included 2.099,00€ excl. VAT
Description ICOM ICA220TSO
The ICOM IC-A220 is a VHF (Airband) aviation transceiver designed for panel mounting. It features a high-contrast OLED display, ultra-slim design, and intelligent features that facilitate cockpit operation. The ICOM IC-A220 TSO is a VHF airband transceiver specifically designed for panel mounting in general aviation aircraft. TSO-C128a and TSO-C169a (ETSO) certification ensures reliable performance and regulatory compliance in aeronautical communications.
Its white OLED display provides clear, glare-free reading in all lighting conditions, while its compact, ultra-slim design (just 33 mm deep) makes it easy to integrate even into cockpits with limited space. The IC-A220 TSO incorporates features designed to enhance the flight experience: Two-position intercom, allowing direct communication between pilot and copilot. Automatic squelch, which intelligently adjusts the noise level. Advanced memory management, organized into groups for quick access. Weather frequency scanning, keeping the pilot informed of changes in real time. Remote control connection from a PC, ideal for customized configurations. Compatible with 13.8 V and 27.5 V electrical systems, the IC-A220 TSO combines reliability, ease of use and modern technology, making it an indispensable tool for safe flight operations.
Official technical sheet
With features like built-in intercom, automatic squelch adjustment, GPS memory for nearby frequencies, and compatibility with 13.8V and 27.5V power systems, the IC-A220 offers ruggedness and ease of use, even in harsh environments.
Some of the features that the ICOM IC-A220 offers are:
- High visibility OLED display (angle ~180°), no backlight required
- Large, backlit flip-flop buttons optimized for cockpit use
- Automatic squelch that adjusts sensitivity to the noise level
- Voice-activated intercom for pilot/copilot communication
- GPS Memory Function (requires external GPS receiver with airport base)
- Channel Spacing: 8.33 kHz and 25 kHz selectable
- Dual Watch functions, priority, direct access to 121.5 MHz (emergency)
- Auto-dimmer of display and keys; external control supported

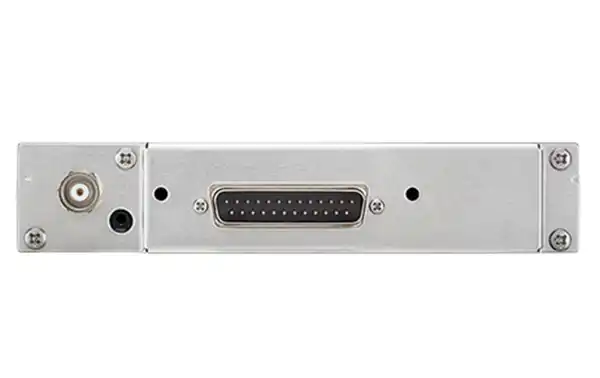

- Remote control from the rear panel for Flip-Flop, intercom and memory
- IC-A220 panel-mount ready transceiver
- Mounting kit (brackets and hardware)
Technical specifications
- Frequency range: 118.000–136.992 MHz (8.33 kHz), 118.000–136.975 MHz (25 kHz) WX* (weather) receiver: 161.650–163.275 MHz
- Modulation: AM (6K00A3E / 5K60A3E); stability ±5 ppm
- Power supply: 13.8 V and 27.5 V DC (negative ground)
- Memory: 20 normal channels, 50 group channels, 20 history channels, 10 GPS channels, 10 WX channels*
- Dimensions: 160 × 34 × 271 mm; Weight: approx. 1.0 kg
- TX power: 8 W (carrier); parasitic emissions: = -60 dBc
- RX sensitivity: AM (6 dB S/N) < 2 ?V; FM (12 dB SINAD) < 1.4 ?V
- Audio: External speaker 5 W (4 O), earphone 60 mW (500 O)
- Certifications: Meets MIL-STD-810 (vibration, shock, humidity, temperature, etc.)
