KRA-23M Short UHF Antenna 440-490MHz 60/70/80/140/160/170/180 Series
The KRA-23M is a short antenna designed to operate in the UHF frequency band, specifically in the 440-490 MHz range. Antenna Type: The KRA-23M is a short antenna, which means that it has compact dimensions, with a length of
Make the first review27,83€ VAT included 23,00€ excl. VAT
Description KENWOOD KRA23M
KRA23M
The KRA-23M is a short antenna designed to operate in the UHF frequency band, specifically in the 440-490 MHz range.
Antenna Type:
The KRA-23M is a short antenna, meaning it has compact dimensions, with a length of approximately 8 cm.
Operating Frequency:
It operates in the UHF frequency band, with a specific range of 440 to 490 MHz.
Compatibility:
It is compatible with a series of radios or equipment that belong to the 60, 70, 80, 140, 160, 170, 180, 202, 302, 360, 260, ATEX, and 312 series.
Use in Potentially Explosive Environments (ATEX):
The ATEX designation suggests that the antenna can be used in potentially explosive environments where ATEX certified equipment is required to ensure safety.
This short antenna can be useful in situations where a compact, low-profile antenna is needed, such as in portable applications or space-constrained environments. The UHF frequency band specification indicates that it is suitable for radio communications in that frequency range.
- 1 KRA-23M Antenna
Characteristics
- Frequency 440-490 Mhz
- rigid type
- Power 10 W.

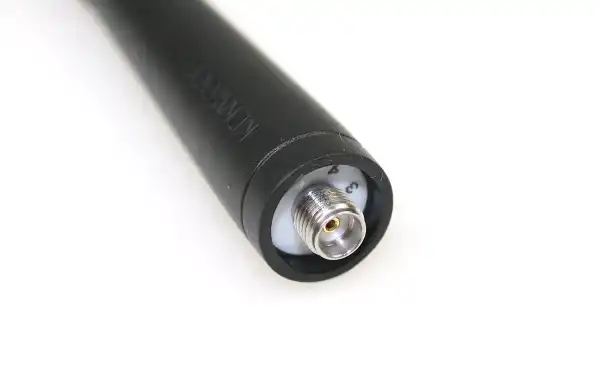

- SMA female connector
- Impedance 50 ohms
- ROE/SWR1.5
- Weight 31 gr.
- 1/4 wavelength
- Antenna length 8 cm.
- Color Black
