Komunica PWR-TA-607SMAF Dual Band Antenna VHF/UHF144/430 SMA FEMALE
Komunica PWR-TA-607SMAF Dual-Band VHF/UHF 144/430 MHz Walkie-Talkie Antenna with SMA Female Connector. The Komunica PWR-TA-607-SMAF is a professional dual-band (VHF/UHF) portable antenna designed for mobile communications with portable radios. Approx
Make the first reviewDescription KOMUNICA PWRTA607SMAF
Komunica PWR-TA-607-SMAF VHF/UHF Walkie Antenna, 70 cm, SMA F Connector. This is a professional dual-band (VHF/UHF) portable antenna designed for mobile communications with portable radios. Approximately 70 cm long and featuring a female SMA (SMA F) connector, it offers an excellent balance of length, gain, and portability.
The antenna operates in a typical VHF/UHF frequency range (~144 MHz / ~430 MHz), has an estimated gain of ~ 2.15 dBi at 144 MHz and ~ 4.5 dBi at 430 MHz , an impedance of 50 O , and is designed to handle a transmission power of up to 10 W. It weighs approximately 45 g , making it lightweight and suitable for portable equipment.
Some of the features offered by the Komunica PWR-TA-607-SMAF are:
- Frequency range: VHF/UHF (~144 MHz and ~430 MHz)
- Gain: ~2.15 dBi (144 MHz) / ~4.5 dBi (430 MHz)

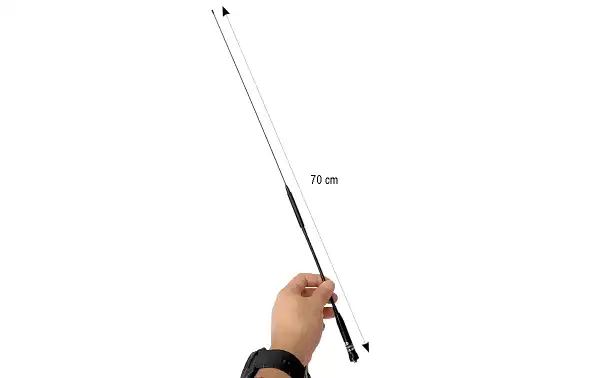

- Length: ~70 cm
- Maximum power: 10 W

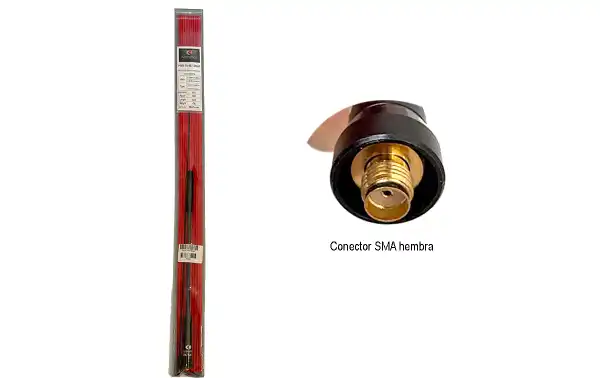

- Connector: SMA female (SMA F)
- 1 Komunica Antenna PWR-TA-607-SMAF (70 cm, SMA F)
Technical and mechanical characteristics
- Manufacturer: Komunica Power Accessories SL
- Model: PWR-TA-607-SMAF
- Type: Portable dual-band VHF/UHF antenna for handheld transceiver
- Nominal length: ~70 cm
- Estimated gain: 2.15 dBi at 144 MHz / 4.5 dBi at 430 MHz
- Impedance: 50 O
- Power capacity: up to 10 W
- Connector: SMA female (SMA F)
- Approximate weight: 45 g
- Recommended use: professional portable radios, vehicle installation, lightweight mobile base
