MAAS L-30-HNT Helium base antenna - UMTS 3G - WLAN- from 698 to 2700 Mhz

MAAS L-30-HNT

MAAS L-30 HNT Base antenna LTE 4G - UMTS 3G - WLAN. From 698 to 2700Mhz. Valid for wall or mast installation. Compatible with all helium hotspot miners: Nebra HNT Indoor Hotspot Miner, HNT Rewards, RAK Hotspot Miner v2, BOBCAT Miner, Nebra HNT Outdoor Hotspot Miner, BOBCAT Miner, SyncroBit Gateway, Helium

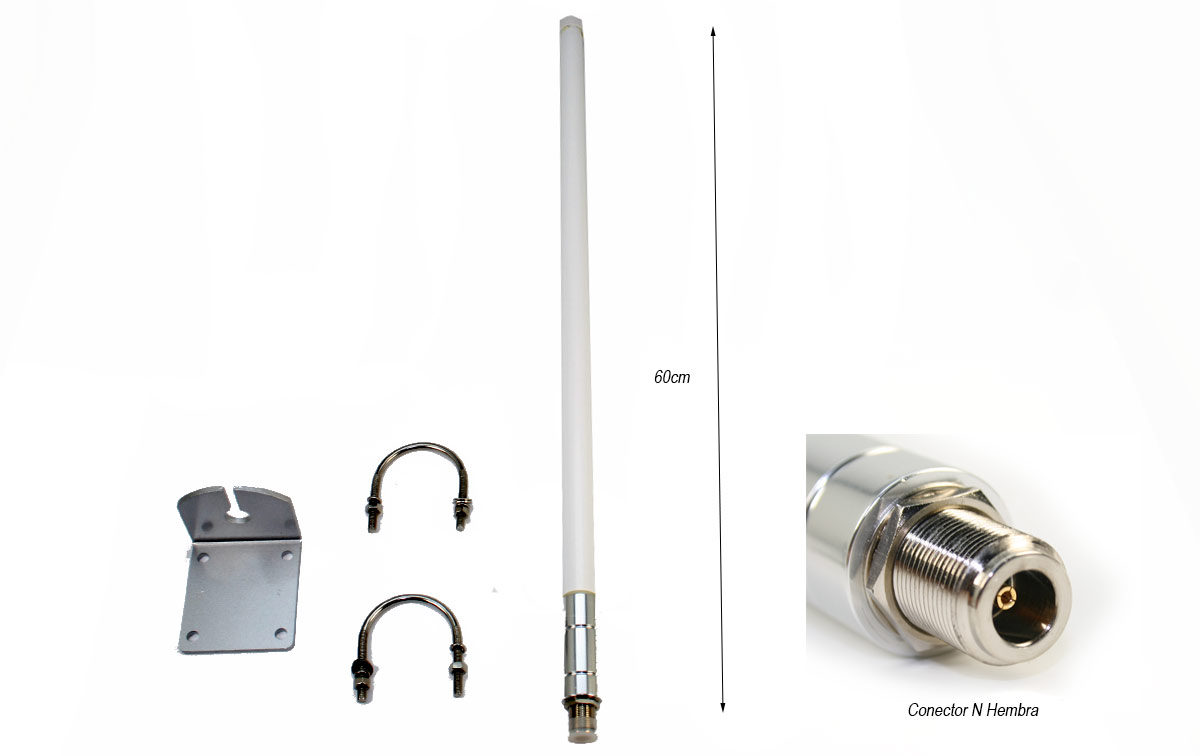

Antenna length 60cm
N Female Connector

Features

• Frequency From 698 to 2700 Mhz.
• FIBER antenna.
• Base antenna type.
• Impedance 50 Ohm.
• Antenna length 60 cm
• Omnidirectional.
• N female antenna connector
• vertical polarization.
• Power. max. 100W
• VSWR <1.2:1.
• Gain 2.15dBi 790 - 960
• Gain 4 dBi 1710-2700 Mhz.
• System GSM-R, GSM-900, GSM-1800,
• 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE,
• ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz,
• WiFi-2.4GHz, DECT
• Weights 600 gr.
• Mast or wall mounting type.
