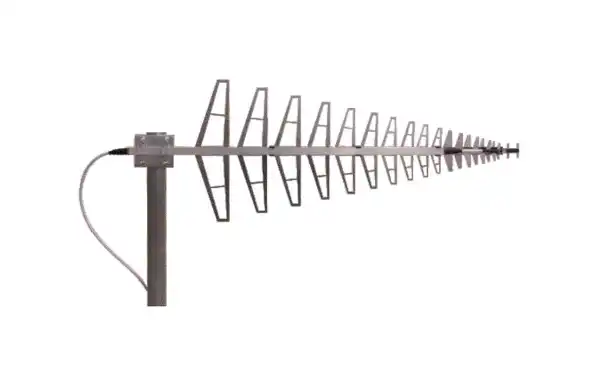

Sirio SLP 4G-LTE Antenna directive logo periodic from 698 to 2,700 Mhz

Syrian SLP-4G-LTE

SIRIO SLP 4G-LTE Periodic logo directive antenna all band from 698 to 2,700 Mhz. A single antenna is capable of covering all bands of GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/ LoRa 915MHz, WiFi-2.4GHz, DECT, etc. SIRIO HGO 4G LTE Omnidirectional Antenna from 790 to 960 and from 1,710 to 2,700 Mhz. No adjustment needed. A single antenna is capable of covering all bands of GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/ LoRa 915MHz, WiFi-2.4GHz, DECT, etc. The antenna comes with a 5 cm cable with very low loss and a SMA MALE connector.

Mount valid Mast.

• 1 Sirio SLP4G-LTE antenna
• 1 mast clamp
• Length 50 cm of white low loss RG cable
• 1 Connector soldered to the SMA male cable

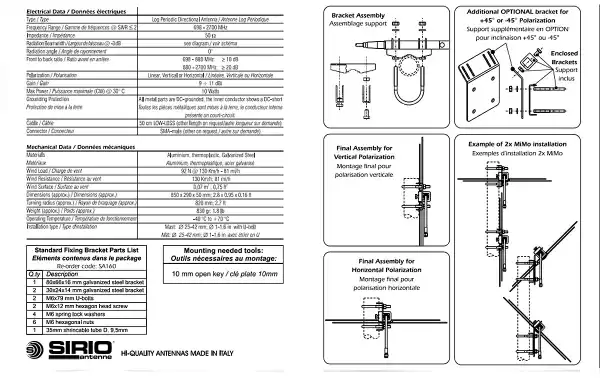

Characteristics

• Frequency Band: 698-2700 MHz Does not require adjustment
• System:GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, WiFi-2.4GHz
• Type: Periodic Log
• Radiation: Directional
• Impedance 50 ohms
• Polarization: Linear Vertical or Horizontal
• Gain: 9dBi
• Maximum Power: 10 Watts
• Cable Length / 50 cm / Low-Loss / Low Loss
• Materials: Galvanized Steel Clamp, UV Stabilized Thermoplastic
• Connector: 1 x SMA-Male
• Pole mounting 25 - 40 mm
• Wind resistance 180km/h

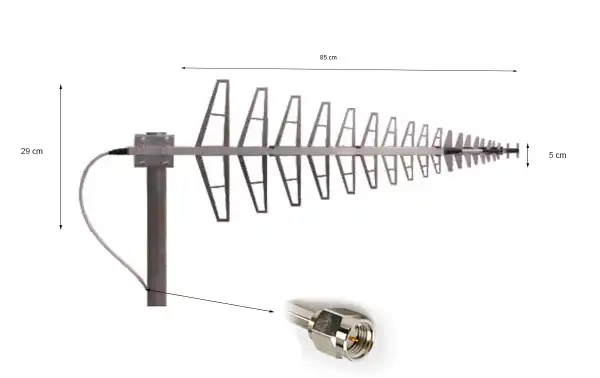

• Dimensions (approx): 850 x 290 x 50 mm / 2.79 x 0.95 x 0.16 ft
• Weight (approx): 830 gr / 1.83 lb
• Mounting Type: On Mast
