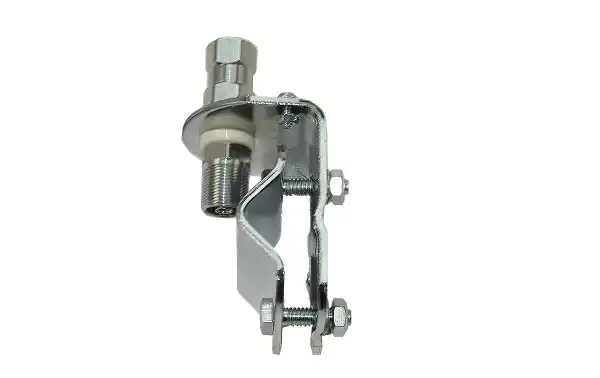

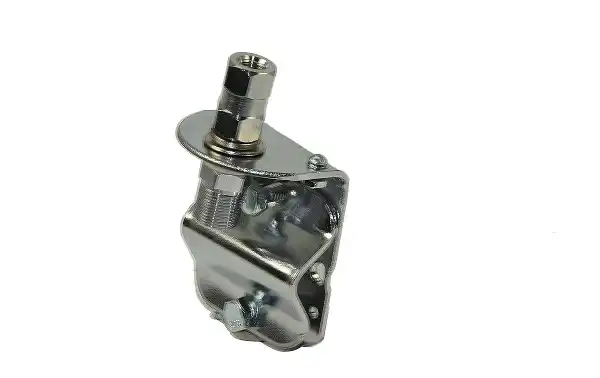

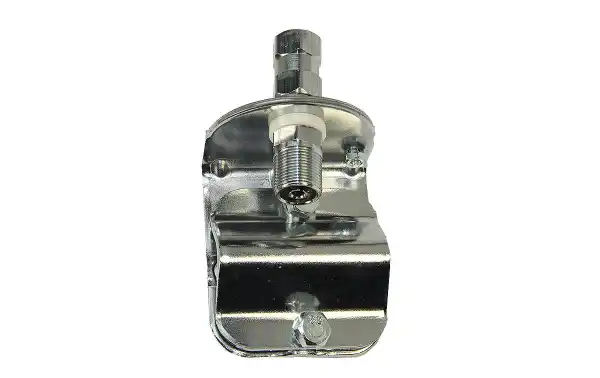

FIRESTIK K-64A 3-WAY MIRROR MOUNT FOR 3/8" ANTENNAS AND ACCESSORIES

FIRESTIK K-64A

FIRESTIK K-64A 3-WAY MIRROR MOUNT FOR 3/8" ANTENNAS AND ACCESSORIES
The mounting clamp can be positioned horizonatally for horizontal mirror arms and rails, or vertically for vertical mirror arms or rails. The clamp may be omitted which will allow the angle bracket to be used as a side bracket on any flat vertical surface, such as the side of a motorhome or back of a Jeep.

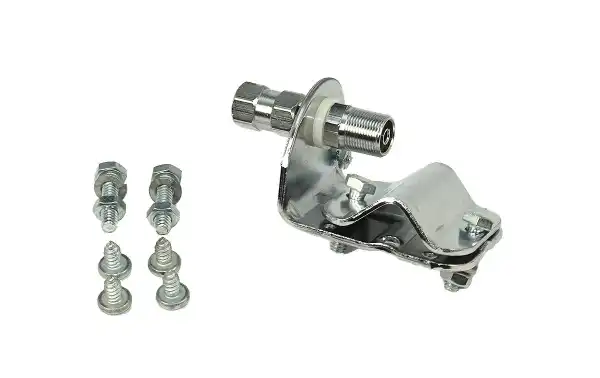

The K-64A model has our world famous K-4A stud mount with screw on coaxial termination. It comes complete with stainless steel mounting hardware.
Use the 3-Way Mounting Bracket for single or dual antenna installation on your car, truck, van, motorcycle or motorhome. If a strong structure is available, this mount will easily support antennas up to 1.5m in length. The actual size of the bracket is 57mm wide by 74mm high. With the stud in place, the overall height is 107mm. They protrude outward from the vertical surface 48mm. With the standard bolts supplied with the bracket, you can install it on a tube with a diameter up to 22mm. If longer bolts are used, the maximum tube diameter is 38mm.

Features

• Stainless steel
• K-4A stud mount
• PL female connector
• 3/8" connector
• 4 Screws with its nuts
• Dimensions: 7 x 6 x 2 cm
• Weight: 237 g
