5,30€ VAT included
Reference BIDATONG690 | BIDATONG

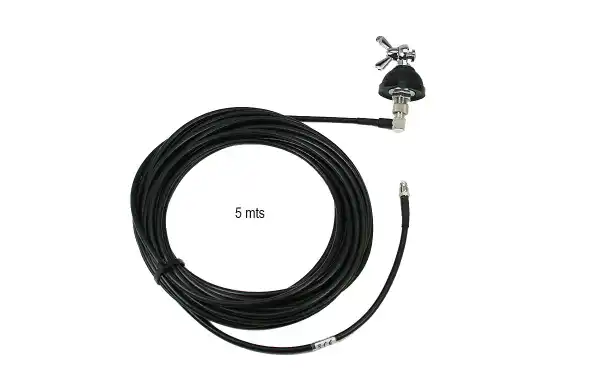

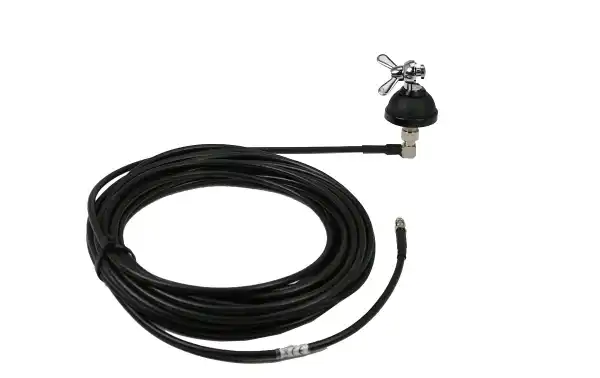

BIDATONG 690 Cable RG H-155 Length 5 mts + Wing base + FME H
BIDATONG 690. Made in Germany by the prestigious company BIDATONG. It is a complete antenna base equipped with 5 meters of H-155 very low loss cable with angled DV connector for connection to the PALOMILLA-type base. The H-155 cable, in addition to t
Make the first review30,98€ VAT included 25,60€ excl. VAT
Additional Services
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€
Description BIDATONG BIDATONG690
BIDATON-690
BIDATONG 690. Made in Germany by the prestigious company BIDATONG. It is a complete antenna base equipped with 5 meters of H-155 very low loss cable with angled DV connector for connection to the PALOMILLA-type base. The H-155 cable, in addition to the DV connector for the base, mounts at its end an FME Female connector to be able to install and pass the cable through small spaces. By adapting the FME-PL adapter to the female FME connector, we will immediately have a PL connector ready to be connected to any station that uses a female PL (SO239) in its chassis. The PALOMILLA-type antenna base allows to connect practically any antenna on the market with this type of connection and the H-155 cable due to its characteristics of very low loss in high frequencies makes this complete base set fully recommended to install any type of antenna either CB, VHF, UHF, Dual-Band, professional or amateur. Its length of 5 meters makes it valid to install in large vehicles such as vans, trucks, buses, etc?
You may be interested in the FME to PL adapter connector not included see here
Coaxial Cable H155 low loss CU./low attenuation
FEATURES
Dielectric: PE injected gas
Mesh: tinned copper
Outer diameter ø 5 mm
Impedance: 50 Ohm.
Capacitance: 82 pF / m
Speed ratio: 0.81

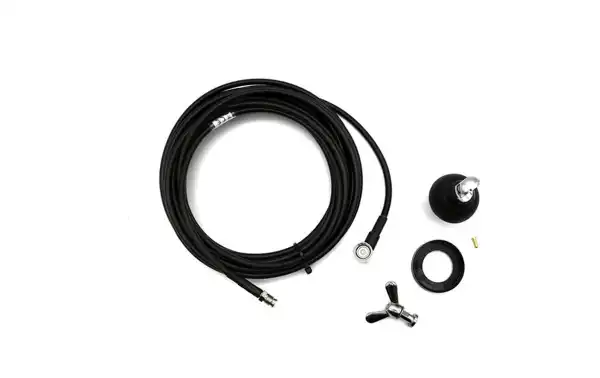

Kit contents
- 1 Base Palomilla
- 5 meters cable H-155
- 1 Connector put on FME Female cable
Characteristics

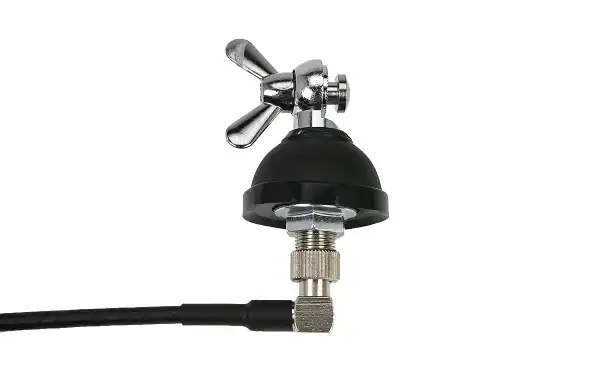

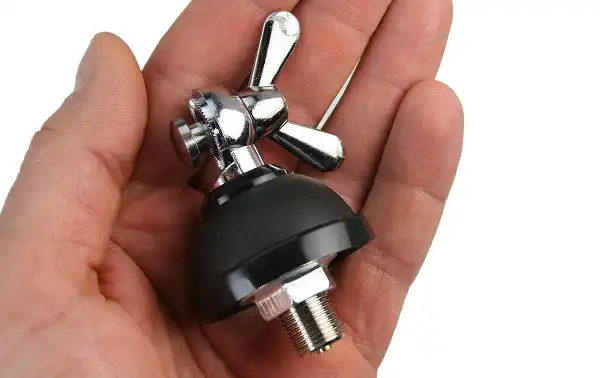

- PALOMILLA base
- Cable RG-H-155 low loss
- Cable length 5 meters
- Female FME connector
- DV Base Connector
- PALOMILLA BASE
- Frequencies HF-CB- VHF-UHF
- Screw wing nut format
- DV27 connector
- Wing nut screw
- Material ABS Chromed brass
- Hole in sheet 12.5 mm
- Base diameter 43 mm
