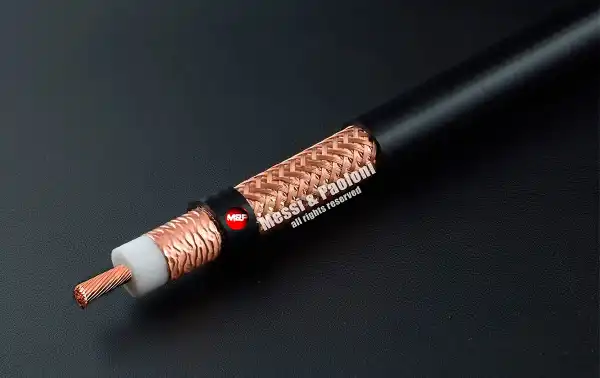

HYPERFLEX13 M&P High quality professional cable Diameter 12.7 mm

HYPERFLEX13 M&P High quality professional cable Diameter 12.7 mm, This new model from Messi and Paoloni has been specifically designed for use with high power linear amplifiers and for lovers of high frequency "Lunar rebound".

Make the first review
NOTIFY
not available

Description M&P HYPERFLEX13

M&P HYPERFLEX13

M&P HYPERFLEX13 Ham radio professional cable

M&P HYPERFLEX13 Ham radio professional cable. Extraflexible PVC diameter 12,7mm
Extreme flexibility: perfect matching with rotator operated antennas, obtained by means of a sophisticated full copper stranded inner conductor (19 wires instead of 7).
The price is for 1 metre.
Available for sale by the metre.

M&P HYPERFLEX13

Features

  • Impedance @200MHz: 50 Ohm
  • Multiple bends (15) / Single bend: 127 / 80 mm
  • Temperature range installation: -40º C to 60º C
  • Temperature range operative: -55º C to 85º C
  • Capacitance: 75 pF/m
  • Class: A
  • Inner conductor resistance: 2 Ohm/km
  • Outer conductor resistance: 12 Ohm/km
  • Screening efficiency 100-2000 MHz: >105 dB
  • Weight (100m): 17,4 kg
  • Velocity ratio: 86%
  • Maximum peak power: 20 KWATT
  • Tension test (spark test): 8 kV
