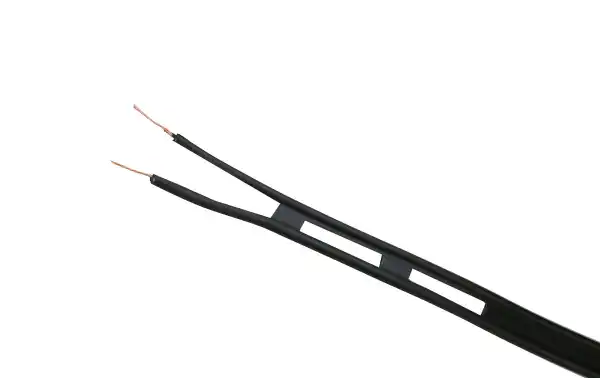

LINE450 Parallel line cable 450 ohms high quality

LINE-450

LINE-450 cable is a type of parallel line cable commonly used in amateur radio applications, especially in dipole type antennas and other configurations. The characteristic impedance of 450 ohms is useful for certain antenna designs.

Some features of the LINE-450 cable are:

450 ohm impedance: This impedance is common in antenna designs and is especially useful for building wire antennas such as dipoles.

2.2cm Width: This may refer to the physical width of the cable, which is often measured to ensure that the antenna is built accurately and conforms to the required specifications.

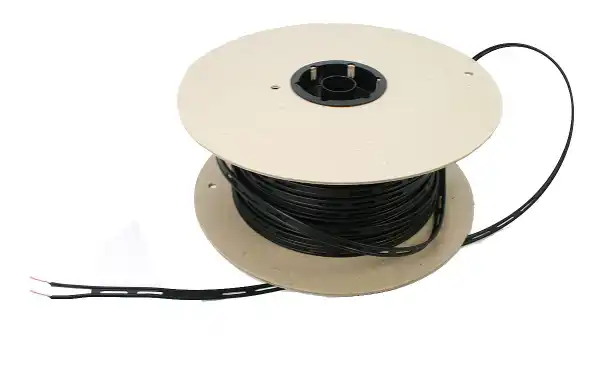

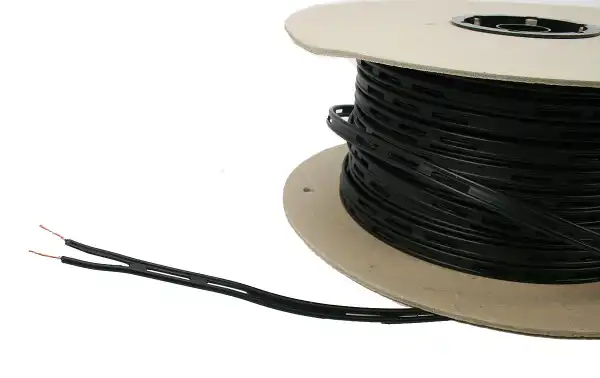

Sale by Meter: Sold by meters, allowing users to purchase the specific amount they need for their antenna or amateur radio projects.

LINE-450 cable is used for the construction of antennas due to its specific impedance, which allows better performance in amateur radio applications. It is important to calculate and purchase the length needed to accommodate the desired frequency and specific antenna design.

Characteristics

• Black cable
• Impedance 450 ohms
• Parallel cable type
• Live copper cable 7 cores total diameter 1 mm
• Parallel cable width 2.2 cm
