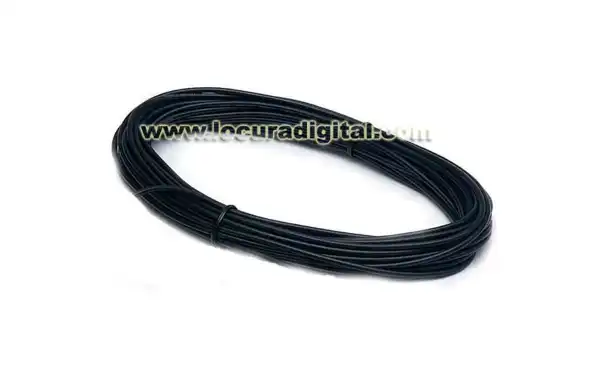

H155 Special low loss radio communication cable Sold by the meter

H-155

H155 coaxial cable.- Indicate when ordering the desired number of meters - Price is per meter -
Low Loss 50 Ohm Capacity Coaxial Transmission Cable
The H-155 is a coaxial cable for most applications in telecommunications and radio technology: it is extremely flexible, low-loss Wireless, wifi, etc.

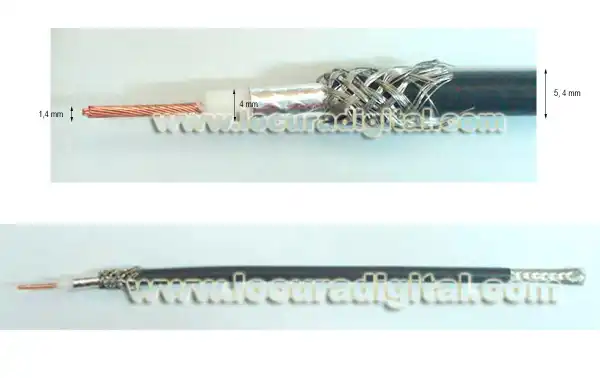

Operating frequencies between 5 and 3,000 MHz, outer diameter 5.4 mm live diameter copper 1.4 mm
Application: Weather resistant - suitable for outdoor use, flexible cable, halogen free, UV stable
Sheath color gray
Mesh: tinned copper with aluminum foil.
Equivalent in approximate measurements RG-58 (not in characteristics)

features

• Frequency 5-3000 Mhz
• Impedance 50 ohms
• Tinned copper mesh with aluminum foil
• Dielectric PE is diameter 4 mm
• Live copper wires total diameter 1.40 mm
• Outside diameter 5.4 mm
• Gray PVC cover / European standard PVC HD624
• Valid for HF, VHF, UHF
• DC resistance: <32 Ohm / Km.
• DC res. int. cond .: <15 Ohm / Km.
• DC res. ext. cond .: <17 Ohm / Km.
• Capacitance: 82 pF / m
• Speed ratio: 0.81
• Temperature range from -15 ° C to 70 ° C
• Loss 5 MHz: 2.5 dB / 100m 862 MHz: 27.3 dB / 100m
• Loss 50 MHz: 6.9 dB / 100m 1000 MHz: 29.6 dB / 100m
• Loss 100 MHz: 9.1 dB / 100m 1350 MHz: 34.9 dB / 100m
• Loss 230 MHz: 13.4 dB / 100m 1750 MHz: 40.3 dB / 100m
• Loss 400 MHz: 18.0 dB / 100m 2150 MHz: 46.0 dB / 100m
• Loss 800 MHz: 26.1 dB / 100m 2400 MHz: 49.1 dB / 100m
•
