MFJ-994-BR Automatic remote coupler power 600W 1.8-30MHZ

MFJ-994

MFJ-994-BR Remote automatic coupler power 600 W 1.8-30 MHZ.
MFJ's InstantRecall function first checks its memory to see if it has operated this frequency previously. If so, the tuning is instantaneous and is ready to operate. Otherwise, the IntelliTuner algorithm of MFJ, based on the famous SWR Analyzer technology of MFJ, is activated. Measure the complex impedance of your antenna. Next, calculate the components you need and fit them instantly. Then adjust the tuning to minimize the SWR: it is ready to operate. Everything is done in a fraction of a second.


Note: The content of the box does not include the manual. Available in Spanish download <<< here >>>

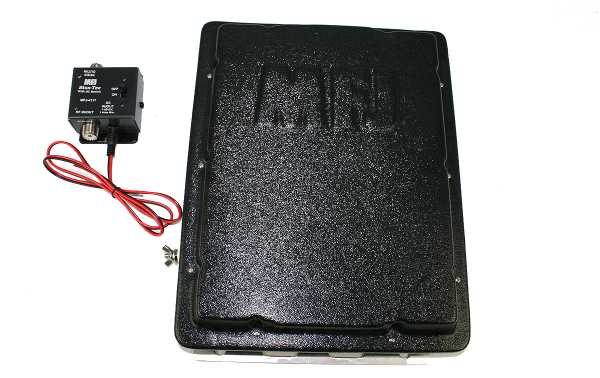

• 1 Coupler MFJ-994 BRT
• 1 DC swich MFJ-4117
• 1 Power cable 12 volts



features

• Frequencies 1.8 to 30 MHz
• Continuous coverage
• Power input minimum 2 watts
• Impedance of 12 to 800 ohms
• Maximum output power 600 SSB / 500 CW
• Input current 12-15 volts.
• Current consumption, 850 mA
• Antenna connectors 2 x PL female

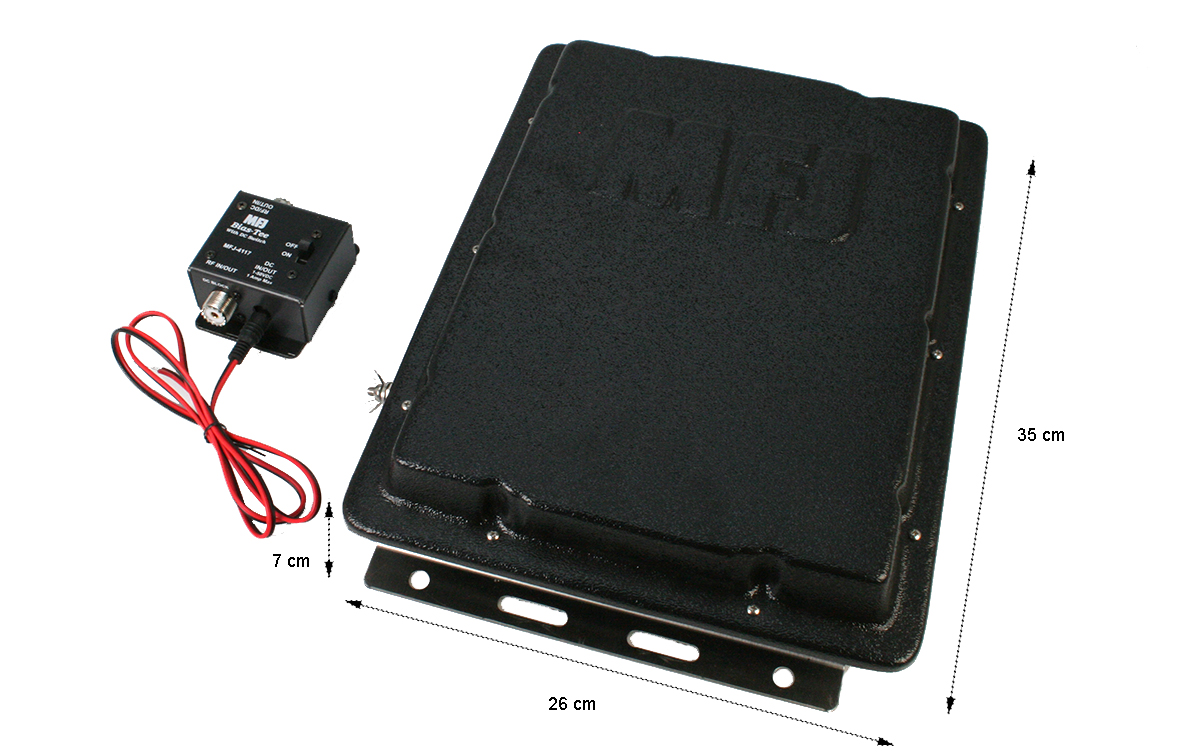

• Measures 257 x 71 x 234 mm
• Weight 1.8 kg.
