Reference MAT180HICOM | MAT-TUNER

MAT-180-H ICOM Automatic Tuner HF1.8-54 Mhz 120 watts

MAT-180-H Icom Automatic Tuner HF1.8-54 Mhz120 watts Compatible models: MAT-CI ICOM connection cable for automatic coupler MAT-180H Valid for ICOM equipment Transceivers of the IC-706, 703, 718, 7000, 7100 series, 7200, 7300, 7410, 746, 756, 7600 ..

Make the first review

234,26€ VAT included 193,60€ excl. VAT

You've seen it cheaper Request a quote
not available Will be received soon Delivery price from 30,25€

Description MAT-TUNER MAT180HICOM

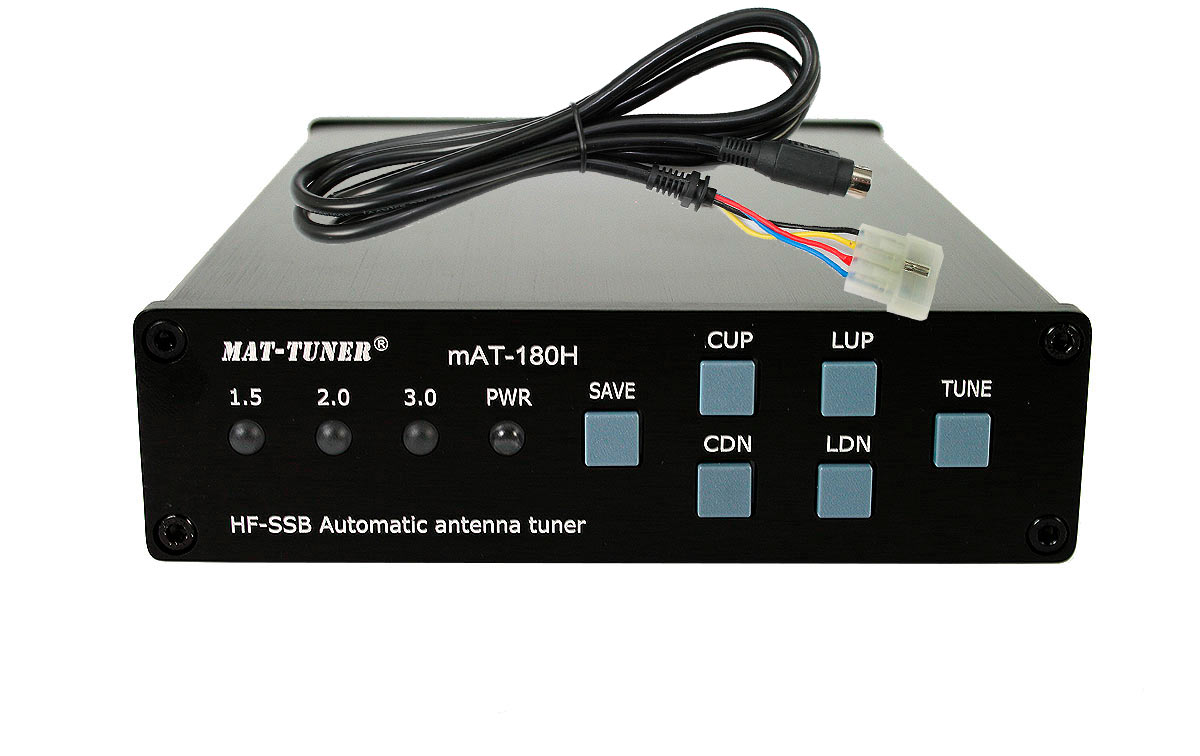

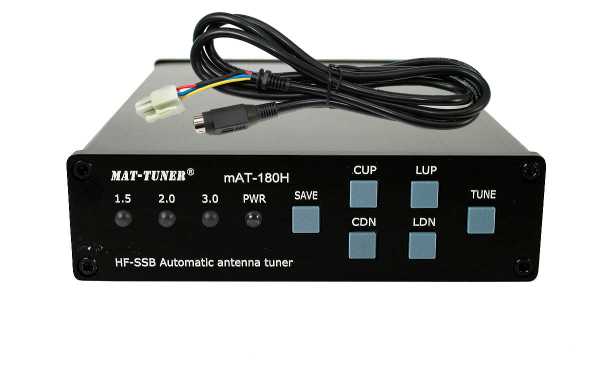

MAT-180-H Icom Automatic Tuner HF1.8-54 Mhz120 watts
Compatible models: MAT-CI ICOM connection cable for MAT-180H automatic coupler
Valid for ICOM equipment IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600 transceivers .. includes MAT-CI cable ICOM connection cable for MAT-180H automatic coupler
The mAT-180H provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or pretty much any antenna powered by coaxial cable. It will match an astonishing range of antennas and impedances, far greater than some other tuners you've considered, including the built-in tuners on many radios.
English manual PDF see here

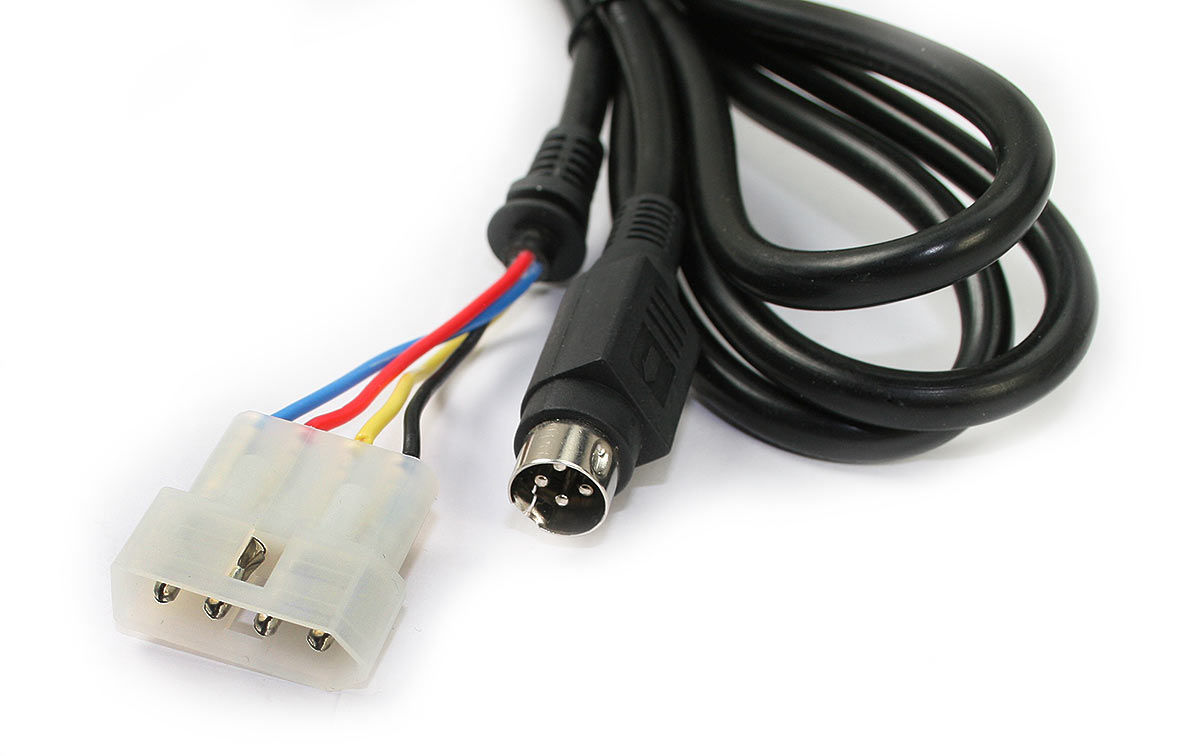

Cable included: ICOM:

MAT-CI cable



MAT-180-H ICOM Sintonizador Automático HF1,8-54 Mhz 120 watiosMAT-180-H ICOM Sintonizador Automático HF1,8-54 Mhz 120 watios

Kit contents

mat-180-h kenwood /icom sintonizador automático hf1,8-54 mhz120 watios

mat-180-h kenwood /icom sintonizador automático hf1,8-54 mhz120 watios

Characteristics

  • Frequencies 1.8 to 54 MHz
  • Valid for, ICOM
  • Impedance 5 to 1500 ohms
  • Power 0.1 to 120 watts SSB and 100 watts 50Mhz
  • 2 x PL female coupler connector
  • 4-pin coupler connector
  • MATCI / MATCK compatible cables
  • Metallic box
  • Measures 20 x 13 x 4 cm
  • Weight 1 kg.
