Reference BT1500A | PALSTAR

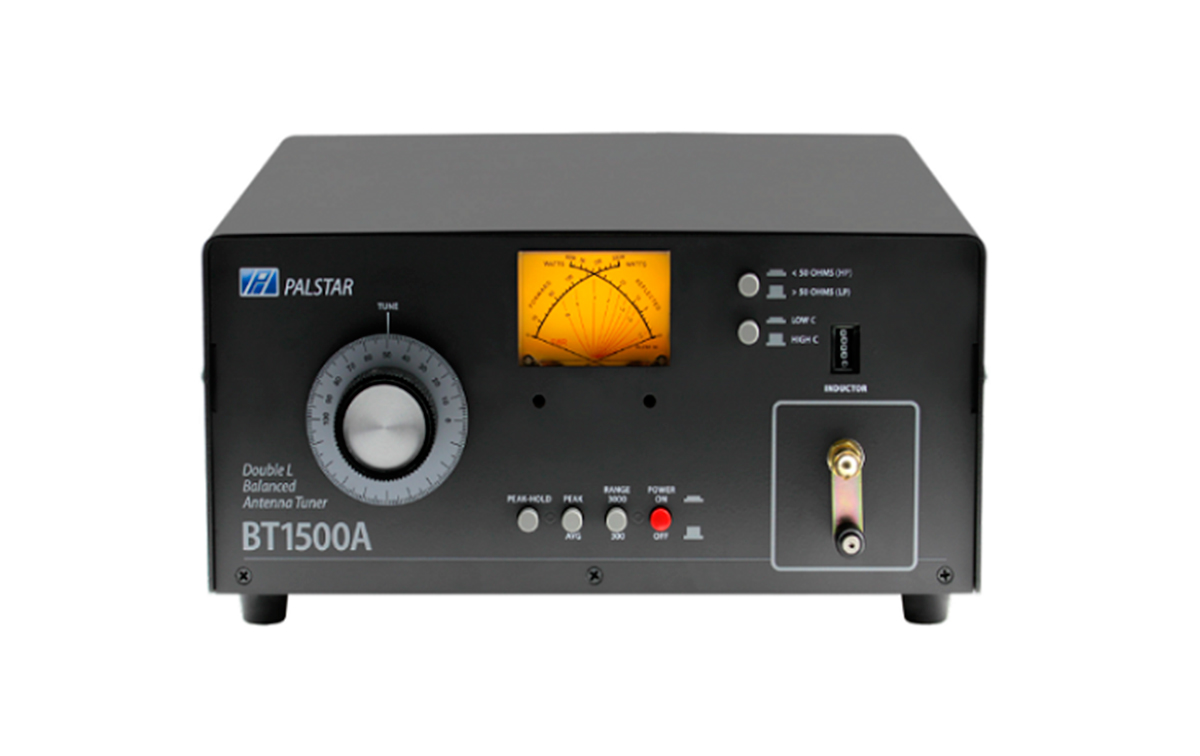

BT-1500A PALSTAR HF antenna coupler 1.8-30 MHz power 1500W PEP
BT-1500A PALSTAR HF antenna coupler 1.8-30 MHz power 1500W PEP. The 1500 watt BT1500A Balanced Antenna Tuner is the only 1500L, Double-L network antenna tuner on the market today, covering 20m to 160m (2500 +/- j2500) and 10m - 15m (1000 + / - j1000)
discontinued
Description BT1500A
PALSTAR- BT-1500-A
BT-1500A PALSTAR Antenna Coupler HF 1.8-30 MHz power 1500W PEP. The 1500 Watt BT1500A balanced antenna tuner is the only 1500 L antenna tuner, Double-L on the market today, covering 20m to 160m (2500 / - j2500) and 10m - 15m (1000 / - j1000) . The BT1500A features two precision ceramic roller inductors, mounted in tandem with balanced tuner.
Manual in English see <<< here >>>
Contents of the kit
- 1 Palstar BT-1500-A
features
- Frequencies 1.8 to 29.5 MHz
- Maximum power 1500 w PEP SSB, 1000 w 1 tone
- 12 volt power
- Balun 1: 1

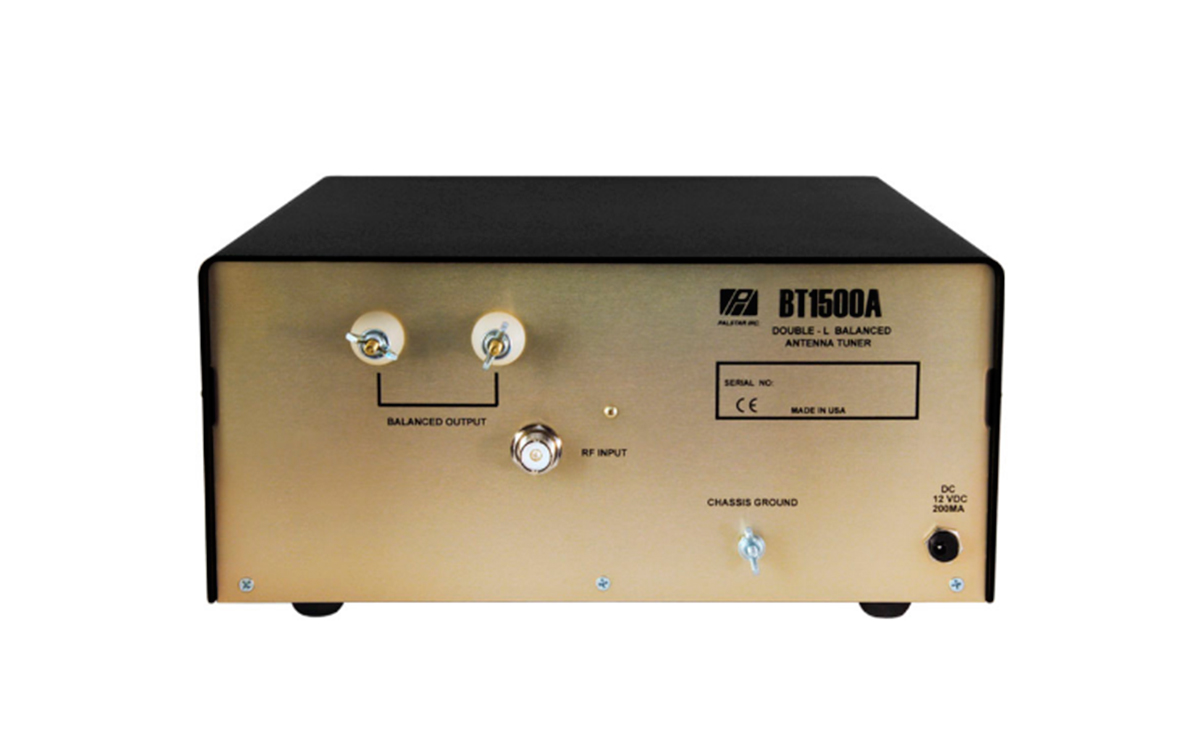

- Balanced output
- PL female connector
- Measures 13 x 6 x 16 cm
