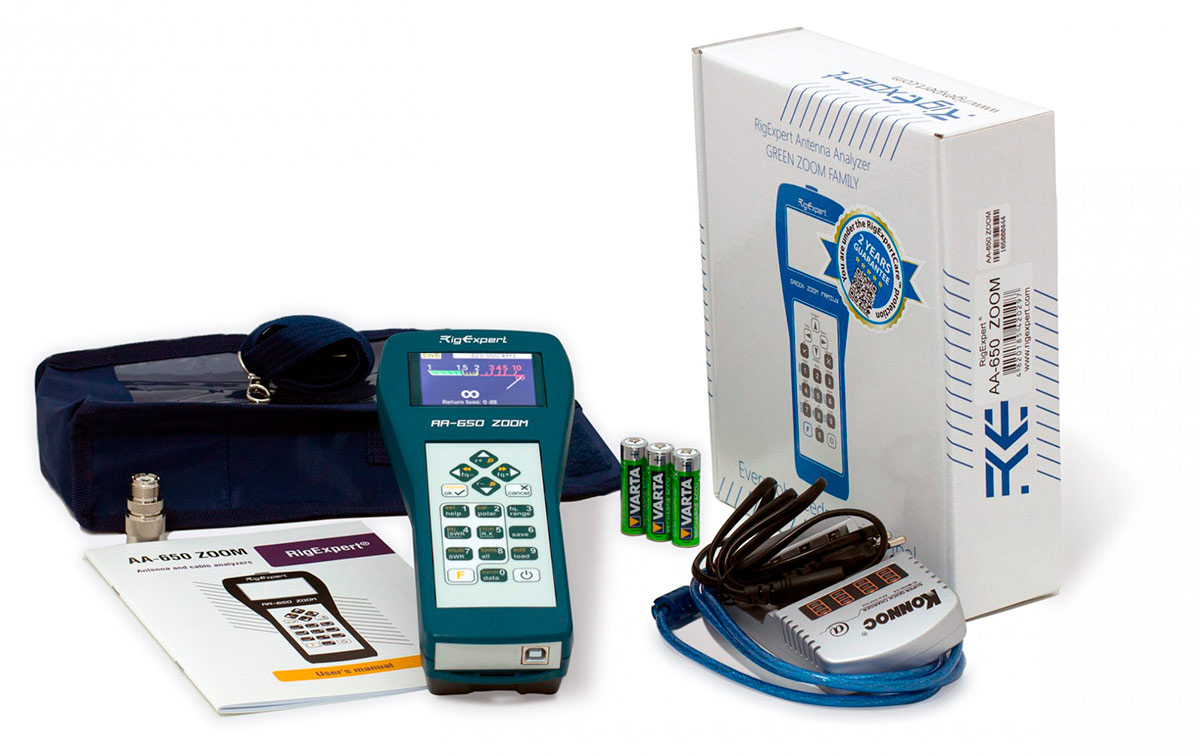

RIGEXPERT AA-650 ZOOM Antenna analyzer from 100 Khz to 650 Mhz.

RIGEXPERT AA-650

RIGEXPERT AA-650 ZOOM Antenna analyzer from 100 Khz to 650 Mhz. Display modes: SWR, return loss, R, X, Z, L, C, Magnitude and Phase Angle at a single frequency, SWR graph (100 points). SWR chart on fixed HAM bands by IARU regions (100 points), cable tools (speed factor and cable length meter, branch tuner, cable loss chart, cable impedance chart), TDR
Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohms systems. SWR measurement range: 1 to 100 in numeric modes, 1 to 10 in graphic modes. R and X range: 0?2000, -2000?2000

Features

• Frequency range: 0.1 to 650Mhz
• ROE margin: 1 to 100 numerical mode and 1 to 10 graphic mode
• Connector: N female
• Frequency input: 1 kHz resolution.
• Operating temperature: 0ºC to 40ºC
• Color TFT display: 3.2 x 2.4 cm
• 6 x 3 cm spill-proof keyboard
• Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm systems
• USB connector for PC connection
• Memory function for graphics storage
• Fault detection in coaxial cable
• Multilanguage menus
• Software download - see here -
• Power supply: 3 AA 1.5V batteries or 3 AA Ni-Mhde 1.2V batteries
• Measurements: 23 x 10 x 5.5 cm
• Weight: 650g approx
