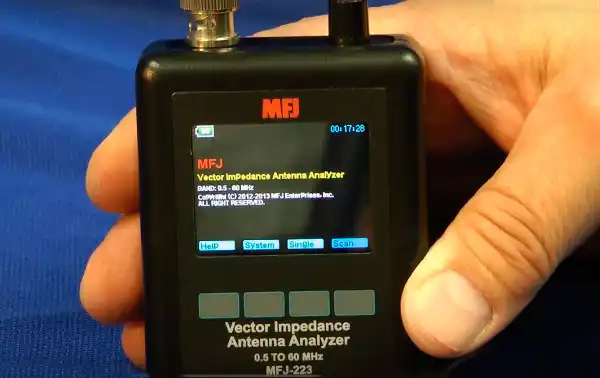

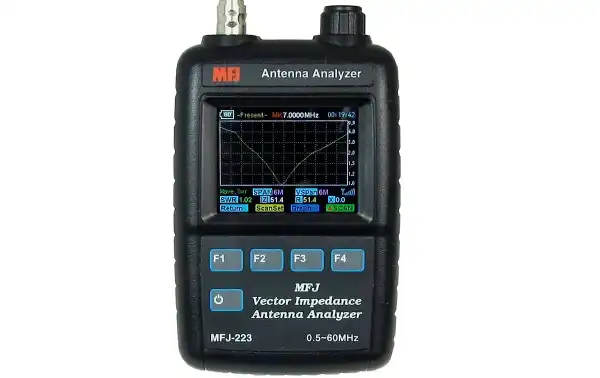

MFJ MFJ-223 COLOR GRAPHIC VNA ANTENNA ANALYZER, 1-60MHZ

MFJ MFJ-223 COLOR GRAPHIC VNA ANTENNA ANALYZER, 1-60MHZ more Manufacturer: mfj Reference MFJ223

discontinued

MFJ MFJ-223

MFJ MFJ-223 COLOR GRAPHIC VNA ANTENNA ANALYZER, 1-60MHZ

Pocket-Size, Incredible Performance! Truly accurate SWR, R, X and Z!
This pocket-sized wonder breaks the mold for analyzer design with user-friendly convenience, top notch accuracy, and a vivid TFT multi-color display. Don't let the size fool you, MFJ-223 is packed with all the VNAfeatures and performance you need!

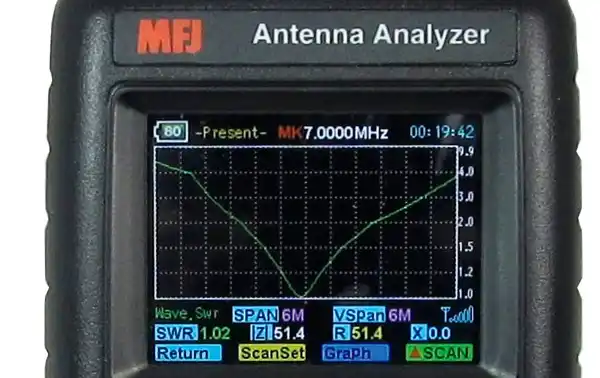

For example, get data for SWR, resistance (R), reactance (X), and impedance magnitude (Z) delivered on a color-coded high-resolution bar-graph display or sharply defined swept-frequency plots.
Get continuous DDS frequency coverage with 100-Hz resolution and a full selection of tuning steps and sweeps.
There's a movable marker that calls up alpha-numeric data for any point on any plot -- and a memory to capture current data when you turn the analyzer off.
Get other useful features too, like a built in help menu and a field-strength indicator warns when powerful interference is present.
Best of all, juggling batteries is a thing of the past -- a long-running lithium-polymer power source is built right in. Recharge via any USB port.

MFJ MFJ-223 Antenna analyzer

Kit Contents
  • 1 MFJ MFJ-223 Antenna analyzer

MFJ MFJ-223 Antenna analyzer

Features

  • Single-frequency and swept frequency operating modes
  • Truly accurate SWR, R, X, and Z measurements
  • Seamless DDS coverage with 100-Hz resolution from 1-60 MHz
  • Smooth "skip-free" encoder tunes fast or slow without missing a step
  • Powerful 5-dBm stimulus generator overrides local interference
  • Field-strength meter measures local signals, detects potential interference
  • DDS generator precision signal source
  • Vivid 1600-pixel/inch color graphics on a 2x2 inch non-glare TFTscreen
  • High-lumen output, easy to read in direct sunlight
  • Easy setup, only four control switches with convenient on-screen soft menus
  • Personalized ID function programs your call or name onto the display
  • Built-in 3.7-V 1800- mAH lithium-polymer battery charges with Battery Status Indicator and Auto Shut-off
  • Charge % always displayed, multi-color LED monitors charge status
  • Built-in clock shows elapsed time when unit is turned on
  • Breakthrough miniaturization
  • Size: 7.0 cm wide x 11.4 cm high x 2.6 cm deep
  • Weight (approx.): 0.144 kg
