PROCOMM PT-99 27 Mhz CB fiber base antenna. 5.65 meters

PROCOMM PT-99

PROCOMM PT-99 27 Mhz CB fiber base antenna. Length 5.65 meters. ProComm PT-99 Fiberglass Base Station Antenna --- Originally Made in USA --- The PT-99 is a 1/2 wave station antenna for DX use, tunable from 26-30 MHz and therefore usable
for the 11 meter CB band. (Pre-tuned for CB band ex factory)
Standing wave tuning can be easily set up quickly using the two rings on the coil.
Simple and fast assembly, the antenna is simply assembled by screwing and secured with elastic rings.


You may be interested in cable to connect the antenna and the station, example: Cable for sale by the meter RG-58 see
You may be interested in connectors for the antenna or the station example: Connector necessary for the antenna PL male ref. PL259 this connector is also usually carried by the station see

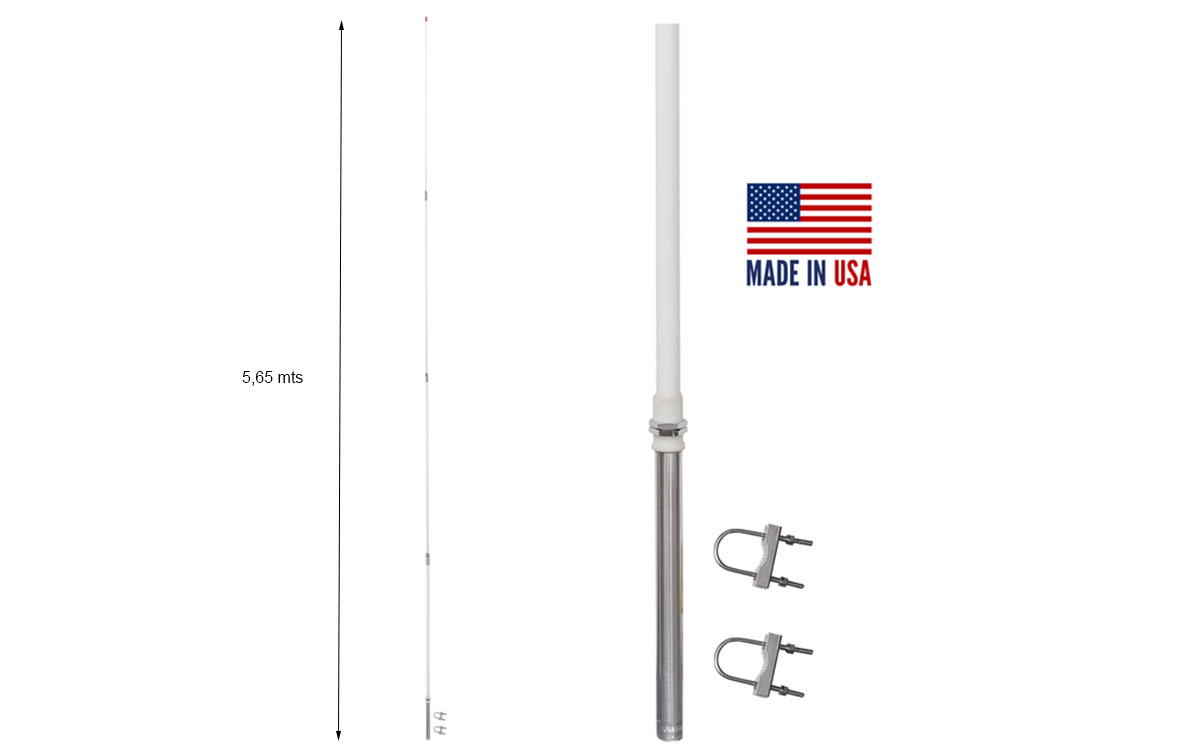

The antenna consists of 4 sections:
Packing box length 1.5 meters and 2.3 kg. Weight.

features

• Brand PROCOMM madi in USA
• Model PT-99
• Frequencies 26 -30 Mhz
• Material Glass fiber
• Length 5.65 mts
• Gain 9.9 dBi
• Wave type 1/2
• Stationary SWR 1.2
• Without radials
• Impedance 50 ohms
• 360 degree radiation
• Vertical polarization
• Power 1500 watts
• PL Female connector
• Color Antenna white
• Mast diameter 25 to 40 mm
• Box length 150 cm
• Weight 2.3 kg.
