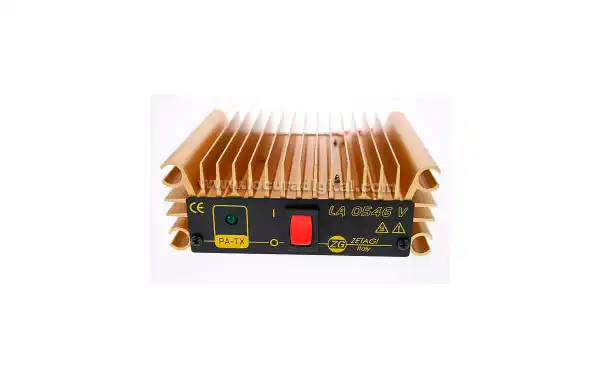

ZETAGI LA0546V VHF linear amplifier, 155 to 165 MHz. 0.5 to 45 watts,...

ZETAGI LA0546V VHF linear amplifier, 155 to 165 MHz. 0.5 to 45 watts, 12 v Input power 1-3 watts maximum.

discontinued

Description ZETAGI LA0546V

ZETAGI LA0546V VHF linear amplifier, 155 to 165 MHz. 0.5 to 45 watts, 12 v
Input power 1-3 watts maximum.

MODEL LA0545V LA0546V LA1080V

MODEL	LA0545V	LA0546V	LA1080V
Frequency	140 ?0 MHz	155 ?5 MHz	140 ?0 MHz
Power supply	12 ? VDC, 8 A	12 ? VDC, 8 A	12 ? VDC, 13 A
Input power	3 W	3 W	18 W
Output power	45 W	45 W	100 W
Dimensions mm	120x130x44	120x130x44	120x160x44
Weight Kg	0.7	0.7	1.45
Features	Class C amplifier Suitable for FM	Class C amplifier Suitable for FM	Class AB amplifier Suitable for AM, FM, SSB
