MIRAGE
Reference MIRAGEB1018G | MIRAGE

MIRAGEB1018G Amplifier MIRAGE VHF 144-148 Mhz. max output 160w

MIRAGEB1018G Amplifier MIRAGE VHF 144-148 Mhz. maximum output 160 watts, VHF amplifier, input power 0, 5 to 15 watts maximum and output power -160 Watts, frequency 144-148 MHZ Power input 13.8 volts. gain from

Make the first review
NOTIFY
not available

Description MIRAGE MIRAGEB1018G

MIRAGE-B1018G

MIRAGEB1018G Amplifier MIRAGE VHF 144-148 Mhz. maximum output 160 watts, VHF amplifier, input power 0, 5 to 15 watts maximum and output power -160 Watts, frequency 144-148 MHZ Power input 13.8 volts. Preamp Gain: 20dB

Rango de potencia de entrada: 0,25 - 15. I (MAX) a 13,8 voltios

kit content
  • 1 Amplifier B-1018G

Potencia típica de salida para vatios en: 0,25: 15. 0,5: 30. 1: 60. 2: 100. 3: 130. 5: 150. 6: 153. 8: 155. 10: 160. 15: 160

Amplificador de 144 MHz 10 vatios de entrada / 160 vatios de salida con preamplificador GASFET

Characteristic

  • Frequency 114-148Mhz
  • Drive input 0.25- 15 Watts maximum
  • Output power 160 watts
  • FM mode
  • transistors
  • Input voltage 13.8 volts

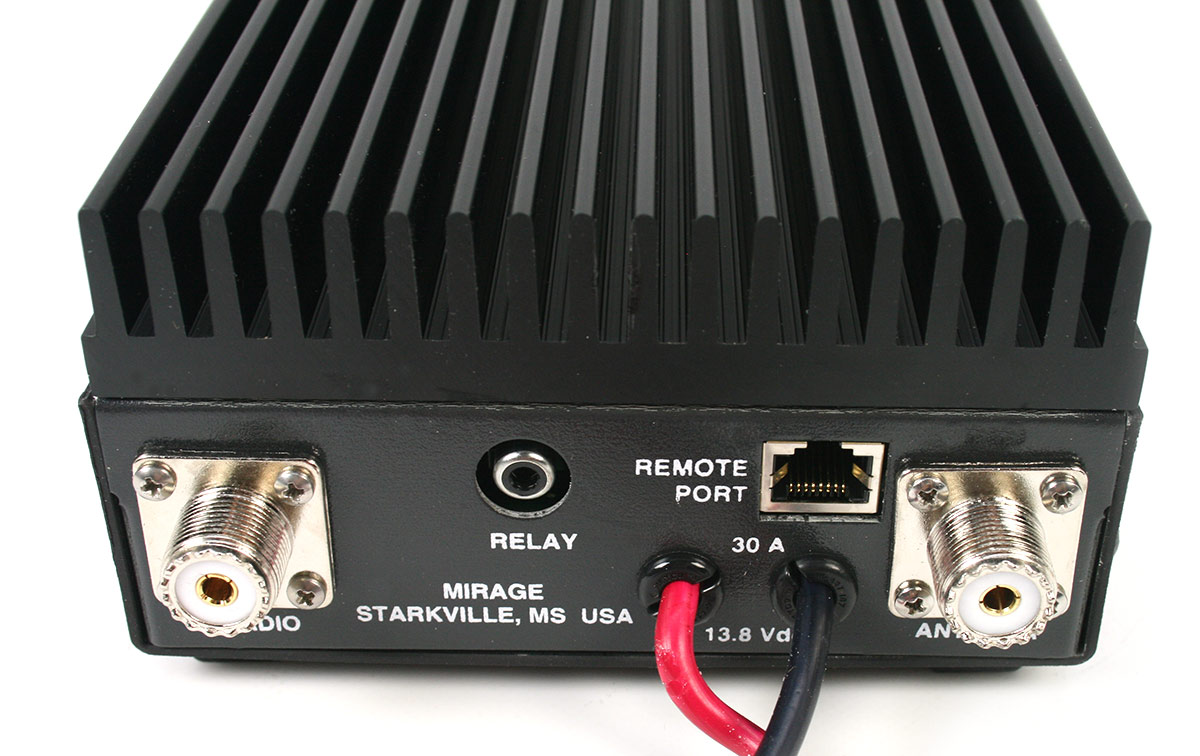

  • 2 x PL female connectors
  • Impedance 50 ohms
  • Voltage 12- 15 volts

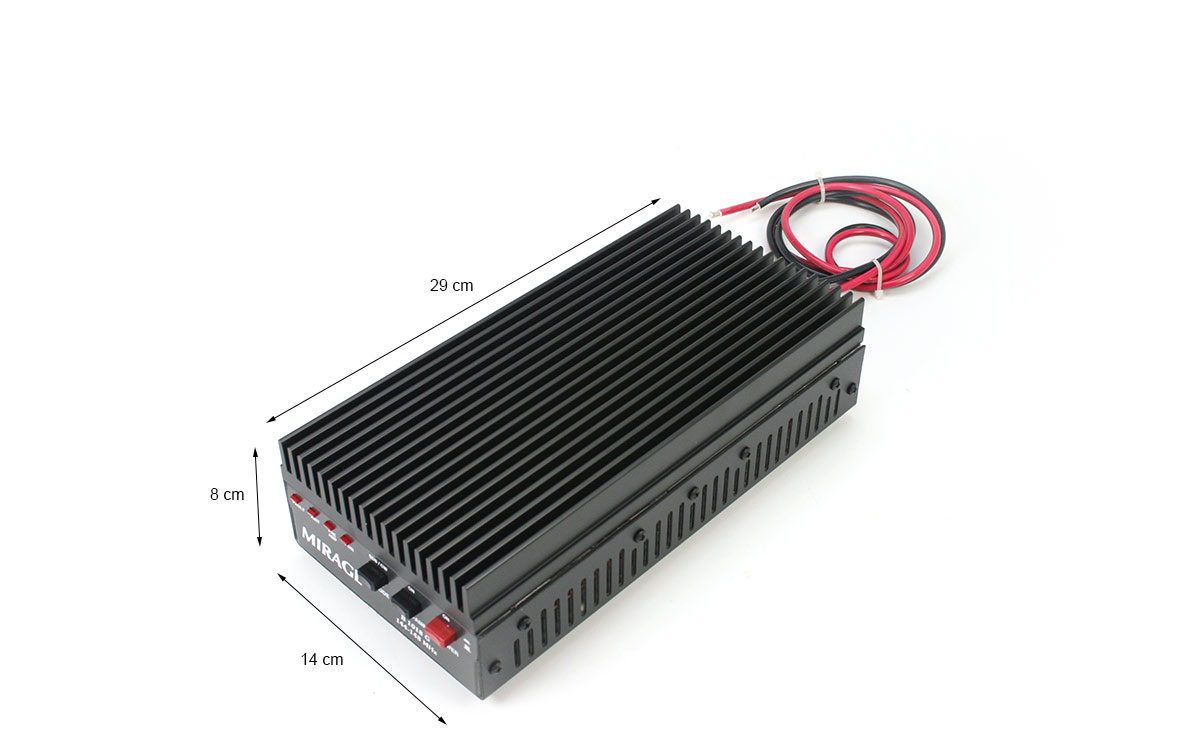

  • Measures 29 x 8 x 14 cm
  • Weight 2.5kg.
