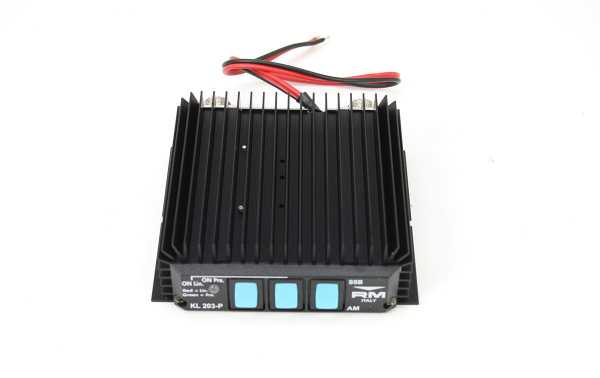

RM KL-203P HF amplifier 25 to 30 Mhz.100 w MOSFET preamplifier

RM-KL-203-P

RM KL 203P HF MOSFET transistor amplifier with receiving preamplifier, gain up to 26 dB, covers frequencies 25-30 MHz, power 100 watts AM/FM and 200 watts SSB. Suitable for AM/FM and SSB, amplifier input power is 0.5 to 10 watts maximum AM/FM. In SSB sideband, input power is 2 to 20 watts maximum. Current draw at 100 watts or 200 watts depending on AM/FM/SSB mode will be 10 to 12 amps continuous. The amplifier input voltage is 13.8 V.

Characteristics

• Frequencies 25 to 30 MHz
• AM/FM power 100 watts maximum
• SSB power 200 watts maximum
• Input current 13.8 volts
• Impedance 50 ohms
• MOSFET transistor
• Power consumption 10 - 12 Amps
• Preamplifier gain 26 dB
• Black aluminum casing
• AM-FM input power 0.5-10W
• SSB input power 2-20 W
• Maximum AM-FM output power 100W
• Maximum output power SSB 200W pep
• Allowed modes AM-FM-SSB-CW
• X2 PL female connectors
• Input power 0.5-10 W AM-FM. 2-20W SSB

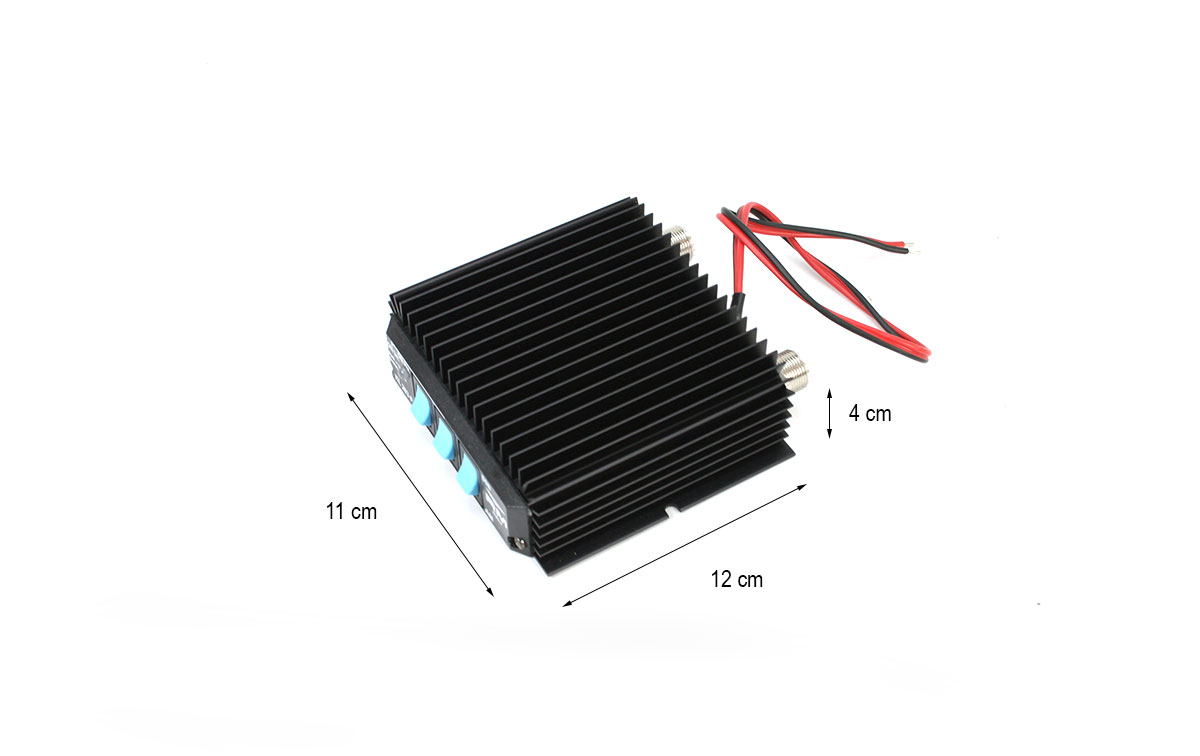

• Dimensions: 12 x 11 x 4 cm
• Weight 460gr.
