President BILL-II-ASC KIT-KM500 MINI CB station 40 AM/FM channels

President BILL-II ASC KIT KM500

President BILL-II ASC with MAAS KM-500 Super-Magnetic Antenna
The President BILL-II ASC is a CB station that offers 40 channels in AM and FM, ideal for clear and efficient communication on the 27 MHz frequency (26-28 MHz). This equipment is compact and resistant, thanks to its cast metal structure, which makes it practically indestructible. It includes a microphone with channel up and down function, and is compatible with the European multi-standard, adapting to different regulations of use in different countries.

The kit includes the MAAS KM-500 Super-Magnetic antenna, designed specifically for the CB band at the 27 MHz frequency. This antenna has a length of 1 meter and is mounted on a magnetic base of 10 centimeters in diameter, providing a Easy and safe installation in any vehicle. The magnetic base ensures a strong hold, even at high speeds, and the 1 meter antenna offers optimal performance for signal reception and transmission.

Features of the President BILL-II ASC:

Operation Modes: 40 channels in AM and FM.
Operating Frequency: 27 MHz (26-28 MHz).
Structure: Die-cast metal, compact and resistant.
Microphone: With channel up and down functions.
Multi-European Standard: Compatible with different European regulations.

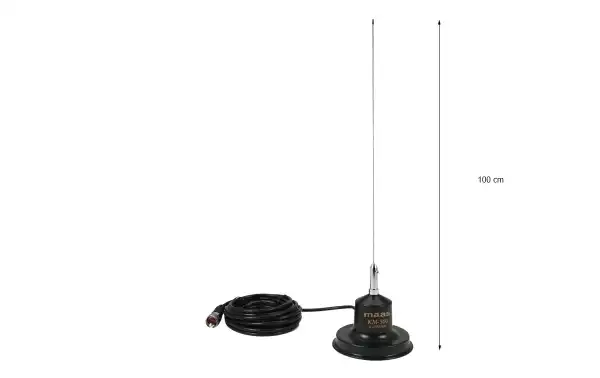

Features of the MAAS KM-500 Super-Magnetic Antenna:
Frequency: 27 MHz (26-28 MHz).
Length: 1 meter.

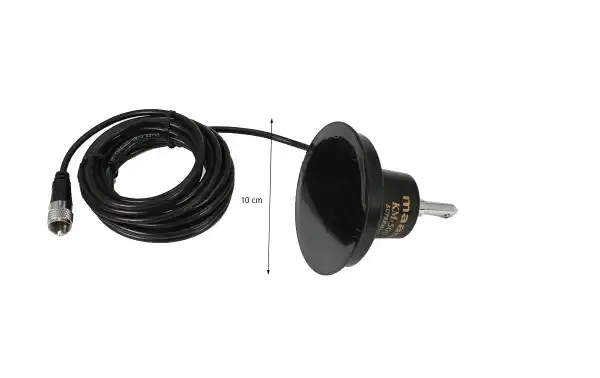

Magnetic Base: 10 centimeters in diameter, ensuring a strong hold.
Mounting: Easy and secure, ideal for moving vehicles.

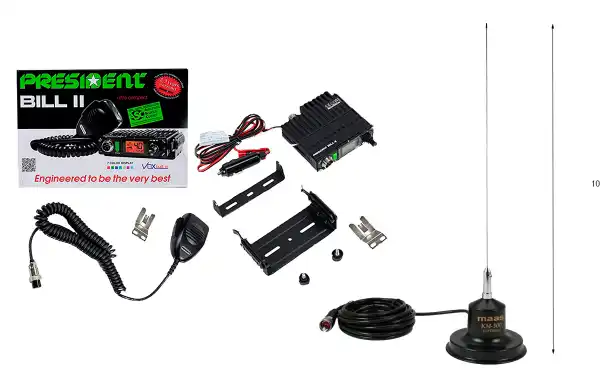

This set, composed of the President BILL-II ASC transmitter and the MAAS KM-500 Super-Magnetic antenna, is a robust and reliable solution for those who need quality communication in the CB band. The combination of a compact and robust transmitter with a high-performance antenna guarantees a superior user experience and excellent signal transmission and reception quality.

!! SPECIAL TRANSMITTER KIT + MAGNETIC ANTENNA!!

Characteristics

• Frequencies 26.965- 27.405 Mhz
• 40 AM/FM channels
• Output power 4 Watts AM/FM
• Cast metal chassis
• Multi-function LCD display
• Microphone takes 6 pins
• Audio power 2 watts
• Automatic Squelch
• Robert Beep
• Scan
• Vox function
• ToT function
• Reset function
• S-Meter Indications
• Sliding fixing bracket
• Power supply via 12 volt cigarette lighter socket
• USB socket for charging electronic devices
• External speaker output 3.5 mm connector
• Female PL antenna connector
• Measurements 102 L x 100 D x 25 A mm
• Weight 320 gr.
• Antenna characteristics:
• Frequency: 26-28 MHz
• Wave type: 5/8
• Impedance: 50 Ohm
• Max. power: 100 W PEP
• Total length with magnet base: 100 cm
• Magnet base diameter: 10 cm
• Cable length: 4.5 m RG 58
• Connector: PL 259 male
