TRUCKER- KIT1 LAFAYETTE transmitter CB 27 Mhz

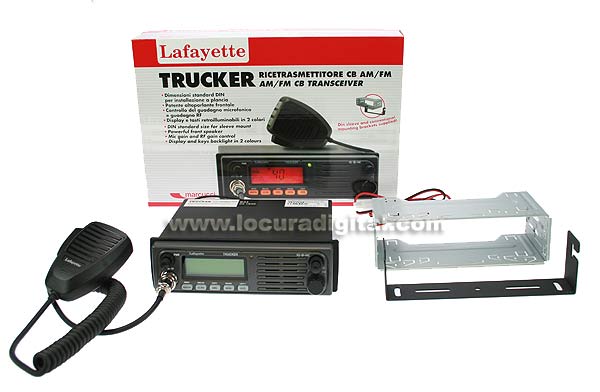

LAFAYETTE TRUCKER

!! SPECIAL KIT FOR CASSETE RADIO HOLES!

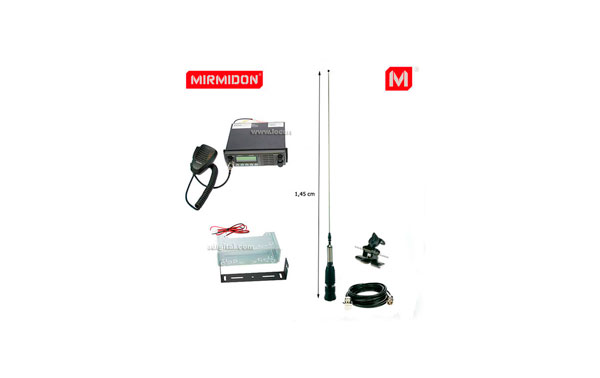

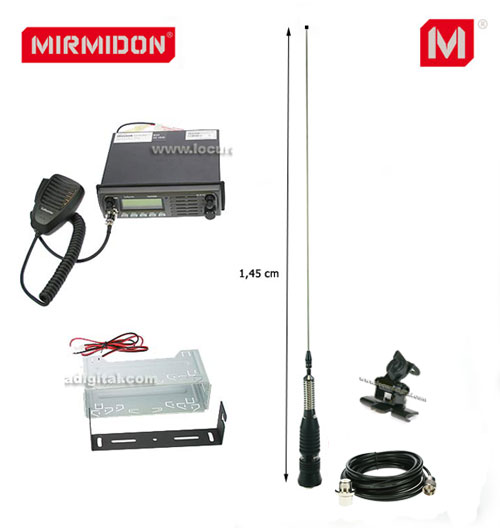

TRUCKER- KIT1 LAFAYETTE transmitter CB 27 Mhz. ANTENNA MIRMIDON BRAVO-150 SUPPORT SP100 BASE ANTENNA BA55M.

---- Very easy installation ---
Mobile station CB 27 Mhz. AM / FM. This is a mobile device of easy and immediate use that gives the possibility to select any CB band, so it can be used in all European countries.
It works with 12 v. or 24 volts.

- Green or orange backlit multifunction display
- Microphone "precision series" with push-button up / down / lock
- External speaker jack
- ASQ automatic squelch
- Scan function

• Transmitter: Crystal controlled PLL synthesizer
• Receiver: Double conversion, superheterodyne system
• Voltage operation: DC 13.8 V and 24 V
• Temperature: -10 ° C ~ 50 ° C
• Channel step: 10 kHz
• Dimensions: 188 (w) x 57 (h) x 158 (d) mm
• Weight: 1.9 Kg. With standard accessories
• Jack: 3.5mm external speaker jack - mono type
• Antenna connector: SO-239
• Transmitter
• Output power: 4W AM / FM
• Frequency range: 26.965 ~ 27.405 MHz
• Frequency tolerance: ± 100 Hz
• Modulation sens: 7mV (1.25 kHz input)
• Modulation capablity: AM: 85%
• FM: 2 kHz
• Receiver
• Sensitivity: AM: 0.5 µV (s / n 10dB)
• FM: 0.5µV (sinad 20dB)
• Squelch: 1000 µV
• Auto Squelch: 0.5 µV
• S / n ratio: 40 dB
• Distortion: 3%
• S / meter sensitivty: 1000 µV
• Test condition
• Power source: DC 13.8 Volt
• Antenna impedance: 50 Ohm non-inductive
• Audio impedance: 8 Ohm
