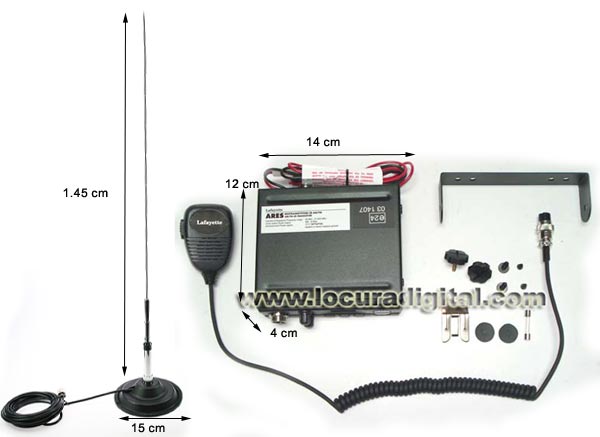

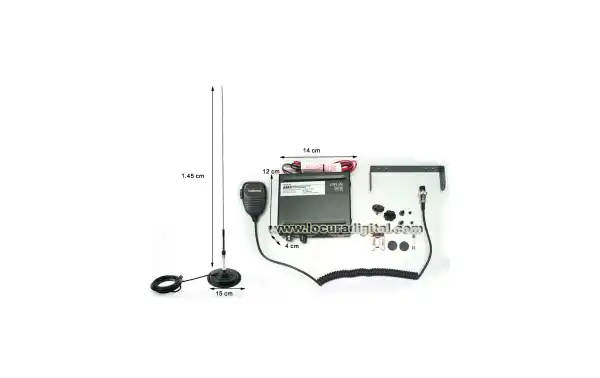

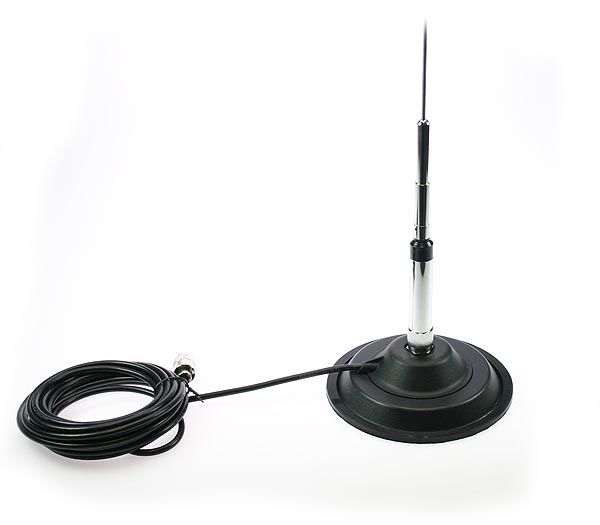

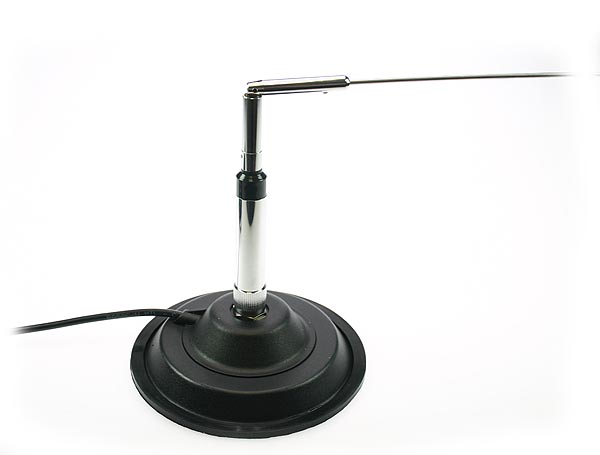

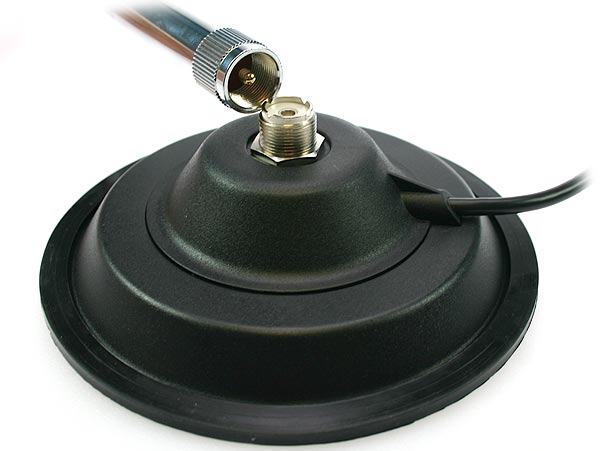

CONTROLS AND CONNECTORS: FUNCTIONS AND USES:
ON / OFF On / Off and volume control
This triggers the control unit and to adjust the sound volume to receive more satisfactory.
SQUELCH Control
Turn this control clockwise to mute the device when not receiving a clear signal and just listen to noise, this will achieve a quiet and comfortable standby status.
Selector AM / FM
Press this button to select AM or FM.
SCAN Button
Your device incorporates CB channel scan function. This feature allows you to scroll through 40 channels and stop on the channel're busy and will remain on that channel for about 7 seconds after the end of the conversation detected, then resume again the channel scan. To activate this feature press the SCAN button, the display will indicate the operation. If you would like to complete the action of scanning, press the button again
SCAN or PTT button located on the microphone, this completes the scan function.
FEED Button 9 / RESET
Press this button in case of emergency, this will lead to Channel 9 immediately (emergency channel). This button can also be used as RESET when the station does not work properly. Hold this button while turn on the radio to reset the device (reset). By taking this action, the display will show the letters RS and the station will reset to initial factory settings.
UP channel selector (up) / DOWN (down)
Press UP or DOWN buttons to select the desired channel. When these buttons are pressed quickly change channels up or down depending on which button you choose.
Power Cable Connection
Connect the power cable to the vehicle battery (red wire to positive 13.8 volts and black wire to ground)
or power supply (in the same way as in the battery.) Pay close attention to this step, a wrong connection (reverse polarity) or a higher voltage power supply to 13.8 volts will damage the equipment.
External Speaker
The station has connector on the back for connecting external speaker jack with 3.5 mm jack.
|
