CB station 27 Mhz. 40 Channels AM / FM 4W CONNECTION TO MACHINE 12V + ANTENNA

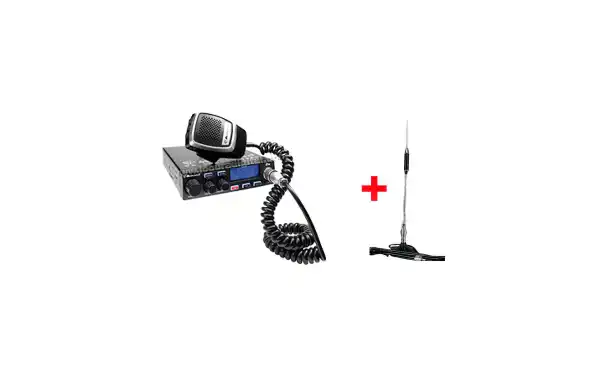

MIDLAND 278 KIT-1 CB 27 Mhz transmitter. 40 Channels AM / FM 4W CONNECTION TO MECHERO 12 Volts + MAGNETIC ANTENNA 18-244M more Reference MIDLAND278KIT1

MIDLAND 278 KIT-1 Emisora CB 27 Mhz. 40 Canales AM/FM 4W + ANTENA MAGNETICA 18-244M
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.
MIDLAND 278 KIT-1 Issuer CB 27 Mhz. 40 Channels AM / FM Antenna 4W + 18-244m


Kit ideal for mounting in 2 minutes fast   and simple.

MIDLAND 278 KIT-1 Issuer CB 27 Mhz. 40 Channels AM / FM 4W 12V LIGHTER CONNECTION + 18-244m Antenna

MIDLAND 278 represents the epitome of the new generation of CB equipment to be used in its design and manufacture the most advanced electronic engineering technology.

Equipped with all controls and functions necessary to satisfy the most demanding amateurs, the quality of materials used in its manufacture and its versatility and functionality you will enjoy excellent radio moments while generating a healthy envy among colleagues.

MIDLAND 278 is a high quality electronic computer, built with the finest components. The solid state circuitry is mounted on rugged printed circuit boards. Its design allows you to work with this unit for many years, without sacrificing any eh performance.

The modern PLL circuit uses a new technique to generate all the required frequency range with a minimum of crystals. The result is a more efficient control of the frequency and unsurpassed reliability.

MIDLAND 278 KIT-1 Issuer CB 27 Mhz. 40 Channels AM / FM Antenna 4W + 18-244m


1 278 FULL + RADIO MIDLAND Antenna MIDLAND 18-244m

MIDLAND 18-244m
. Half-wave antenna with magnetic base with stainless steel spring. With 3 meter cable RG 58 + PL connector

MIDLAND 18-244m

Half-wave antenna with magnetic base, with spring: Stainless steel
With 3 meter cable RG 58 + PL connector

MIDLAND 18-244m

- Mobile CB Antenna 27 Mhz.
- Radiant stainless steel.
- Central coil.
- Stainless steel spring.
- Magnetic Base + 3 mts. RG58.
- PL259 RG58 final.
- Impedance 50 Ohm.
- Frequency 26-28 Mhz.
- Vertical polarization.
- VSWR <1.2:1.
- Pot. max. 50 W.
- Length 630 mm
- Weight 575 Gr

Kit Contents

Front View


Rear View





Channels (see table)
Frequency range 99 125 MHz 26565-27
Duty cycle (% in 1 hour) TX 5% - RX 5% - 90% Stand-by
PLL Frequency Control
Operating temperature range -10 ° C to +55 ° C
DC input voltage 12 Vdc ± 10% 0.6
Size 180 x 35 x 140 mm
0850 Weight Kg

Reception System: Dual Conversion Superheterodyne
First FI: 10 695 MHz
Second IF: 455 KHz
0.5 IN @ 20 dB SINAD in FM mode
0.5 IN @ 20 dB SINAD AM mode
Audio Output Power at 10% THD @ 8 Ohms 2.0 W
Audio Distortion Less than 8% @ 1 KHz
Image Rejection 65 dB
Adjacent channel rejection 65 dB
Signal to Noise Ratio 45 dB
Standby power consumption 250 mA

Output power 4W 10% duty cycle
AM: from 85% to 95%
FM: 1.8 KHz ± 0.2 KHz
Frequency response from 400 Hz to 2.5 KHz
RF Output Impedance 50 Ohm unbalanced
Signal to Noise Ratio 40 dB minimum
Consumption, max 2500 mA

Accessories 1/4
