MAAS KM100 CB27 antenna length 1.07m base magnet cable length 4.7mts
MAAS KM-100 Antenna CB-27 Mhz length 1.07 meters with magnet base diameter 9 cm cable length 4.7 meters Frequency: 26-28 MHz Type: 1/4 wave Impedance: 50 Ohm Max. power: 100 W PEP Antenna length: 107 cm Magnet base diameter: 9 cm Cable: 4.7 m RG 58 C
Make the first review26,56€ VAT included 21,95€ excl. VAT
Description MAAS MAASKM100

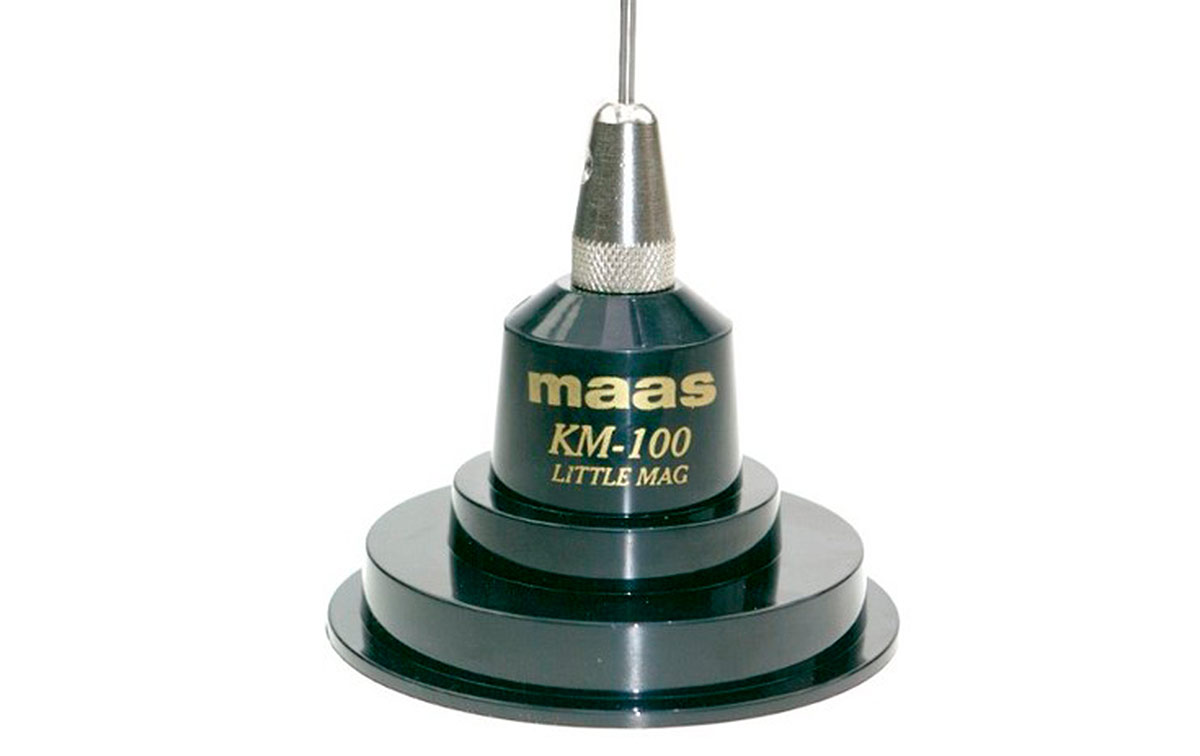

MAAS KM-100
Powerful high performance antenna with magnet base. With only 1.07 meter in length, the KM-100 antenna provides a high performance greater than even longer antennas. Regarding antennas and especially in CB, the size of the antenna is very important because of the wavelength, the CB band that is 11 meters. That makes most CB antennas start to have a reasonable performance from the most standard measurement which is 145 .. 150 centimeters (about a meter and a half approximately). Below these measures, to maintain optimal performance, they already have to be truly designed antennas with a high technical level, as has been the case with the MAAS KM-100 antenna, which with only 1.07 meter in length achieves high performance in the band. by CB. In addition, being manufactured directly with a magnetic base makes it especially efficient and easy to mount on any metal surface of the vehicle. The magnet base also provides a better ground adaptation, without the need for any type of adjustment in the vast majority of vehicles. It is equipped with a 4.7 meter RG-58 cable with a PL 259 male connector, so its installation takes just a few seconds: place the magnet base on a metal part of the vehicle and connect the PL-259 male to the connector. female station, as we say just a few seconds.
There are smaller antennas, reaching up to 50 centimeters and even less, but we do not recommend them since their performance is usually quite poor due to a simple physical issue due to the wavelength of 11 meters from the CB. The MAAS KM-100 antenna is ideal for its performance and its ease of assembly and disassembly when we do not want to leave the antenna fixed on the vehicle. An ideal product in 4x4 vehicles for excursions, group outings, trips, etc ... demounting it is simple and a matter of seconds.

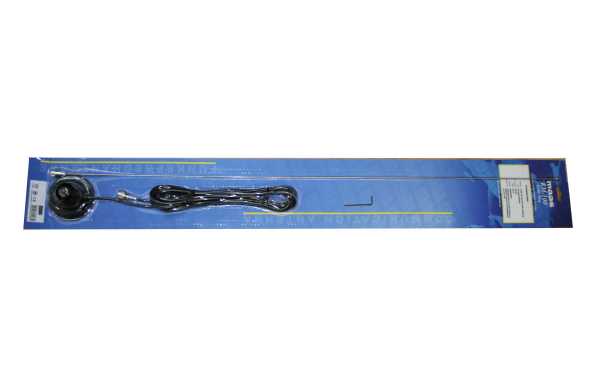

- 1 Antenna 1.07 cm
- 1 Magnet Base 9 cm
- Length 4.7 meters of RG-58 cable
- 1 Allen key
Characteristics
- Frequency: 26-28 MHz
- Wave type: 1/4
- Impedance: 50 Ohm
- Max. power: 100W PEP

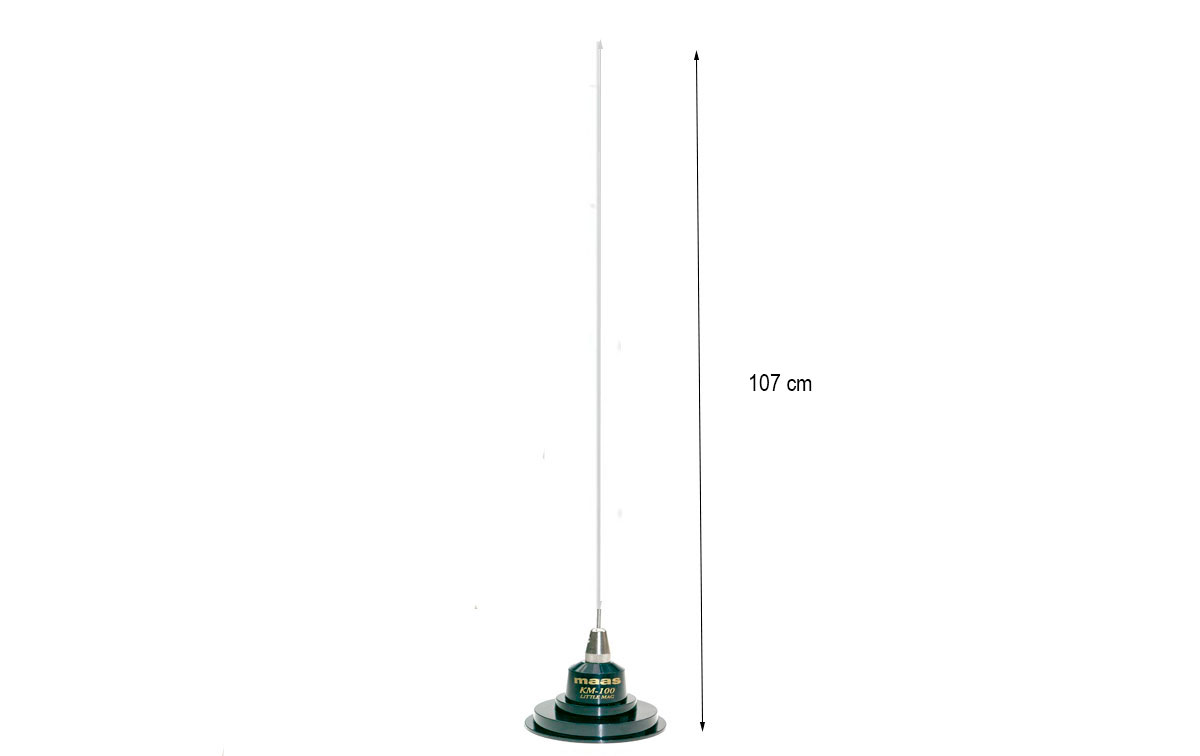

- Total length with magnet base: 107 cm
- Magnet base diameter: 9 cm
- Cable length: 4.7 m RG 58
- Connector: PL 259 male
